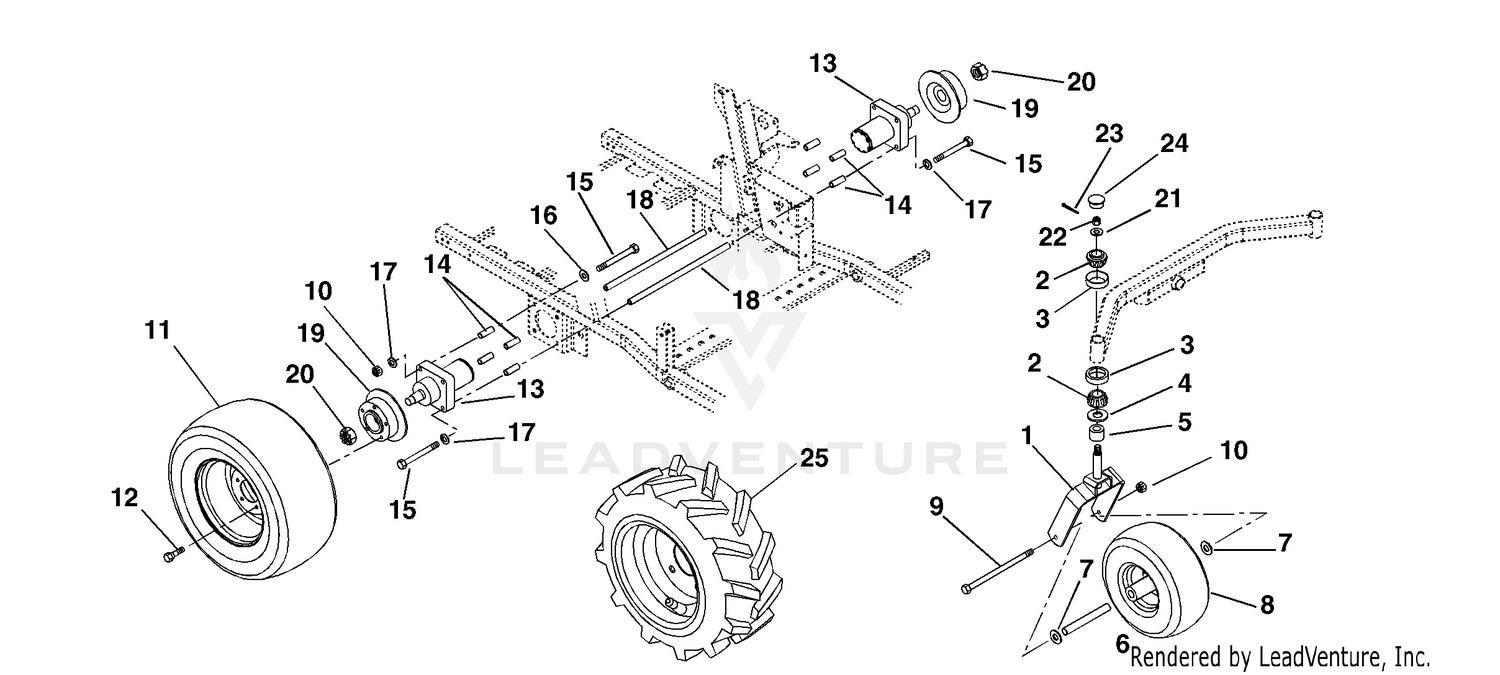

| Ref | Part Number | Description |
|---|
| 1 |
09247453 |
FORK - FRONT (RED) Price: $112.45 |
| 2 |
05406900 |
BRG-CONE 1.0X.58 This part replaces 69000300. Price: $17.95 |
| 3 |
05407000 |
BRG-CUP1.980X.420 Price: $16.45 |
| 4 |
00531400 |
BEARING SEAL 1.5 X 2 X .18 Price: $9.45 |
| 5 |
00531500 |
SPACER 1.005X1.5075X.375 Price: $7.45 |
| 6 |
09231800 |
SPACER - WHEEL Price: $43.95 |
| 7 |
06445000 |
WSHR-FL-STL .515X1.625X.250 YZ Price: $5.45 |
| 8 |
59219000 |
KIT, 15" PNEUMATIC TIRE This part replaces 07147800. Price: $173.45 |
| 9 |
05901930 |
BLT, HEX .50-13X9.00 G5 ZCC This part replaces 05961200. Price: $9.95 |
| 10 |
06500827 |
NUT,LK-CTR .50-13 GA ZCC This part replaces 06536300. Price: $3.95 |
| 12 |
07000143 |
BLT-LUG .50-20X1.38 YWZC This part replaces 07014600. Price: $3.45 |
| 14 |
05531400 |
BSHG-SLV .513X.748X2.129 Price: $12.45 |
| 16 |
00211100 |
BSHG, SPCR.500X.750X.321 PM Price: $3.45 |
| 17 |
06300115 |
WSHR,LK-REG .500X.125 ZCC This part replaces 06307300. Price: $0.95 |
| 18 |
09236200 |
ROD-MOTOR CONNECTING Price: $84.95 |
| 19 |
09247100 |
HUB & DISK (PARK) 8" 1/2 HOLE Price: $234.95 |
| 21 |
06401016 |
WSHR, FLT .755X1.375X.062 ZCC This part replaces 06441500. Price: $3.45 |
| 22 |
00595500 |
NUT, SLOTTED .75-16 Price: $3.45 |
| 24 |
20655400 |
CAP,DUST Price: $9.45 |
