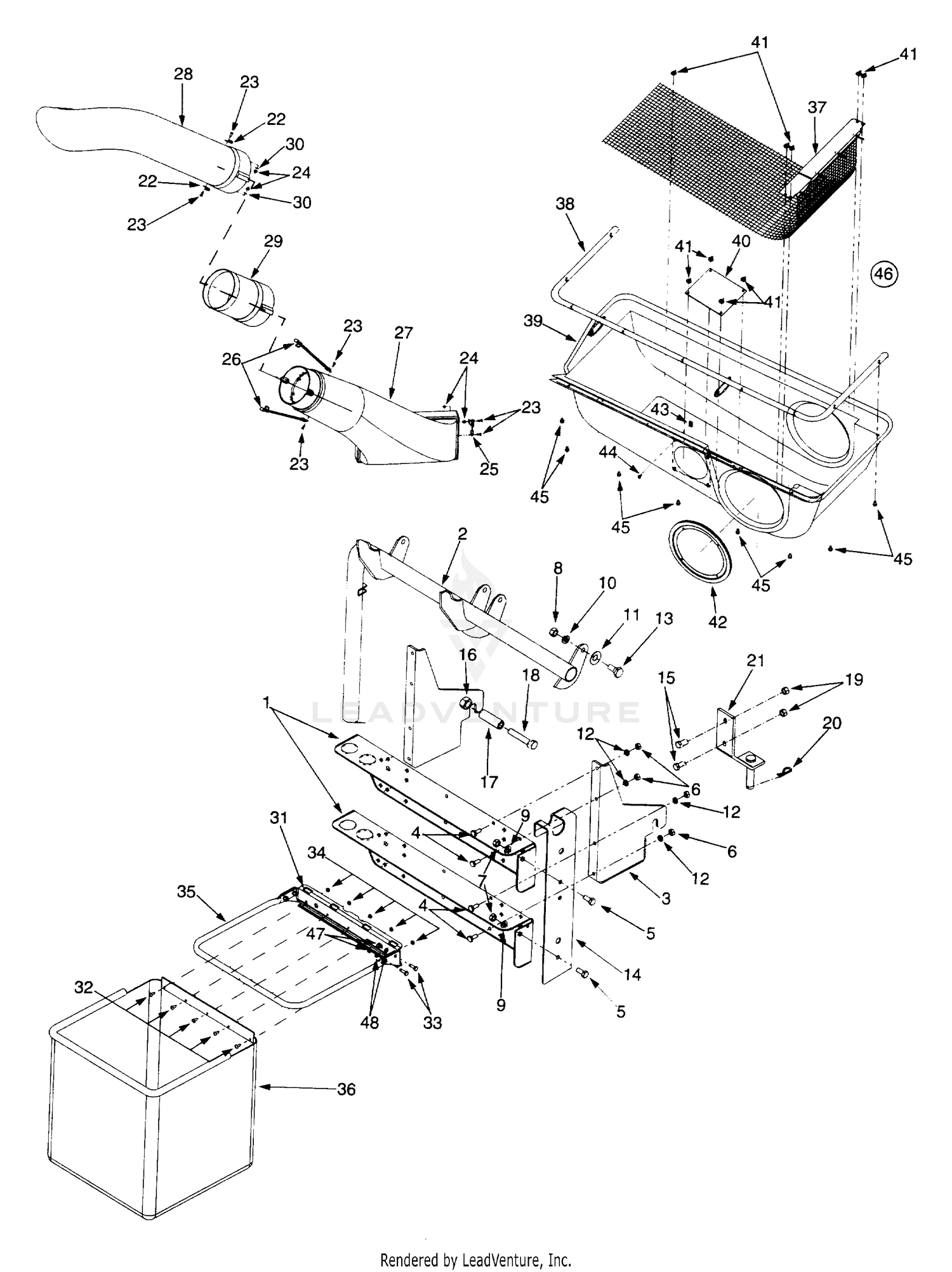

| Ref | Part Number | Description |
|---|
| 1 |
16587C |
Bagger Support Bracket Price: Call Us |
| 2 |
16592-0637 |
Support Tube Assembly This part replaces 16592. Price: $170.58 |
| 3 |
703-3317 |
BAGGER BRACKET Not Available Price: |
| 4 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 5 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 6 |
712-3006 |
HEX NUT Price: $4.05 |
| 7 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 8 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 9 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 10 |
736-0169 |
Lock Washer, 3/8 I.D. Price: $3.33 |
| 11 |
736-0255 |
Bell Washer, .51 I.D x 1.14 O.D. x .04 Price: $4.02 |
| 12 |
936-0329 |
Lock Washer This part replaces 736-0329. Price: $3.90 |
| 13 |
738-0380 |
Shoulder Screw, 3/8-16 x .5" Price: $7.34 |
| 14 |
783-0601-0637 |
Mounting Bracket This part replaces 783-0601. Price: $32.78 |
| 15 |
710-04048 |
SCREW 5/16-18 x 1 GR5 This part replaces 1186331. Price: $4.19 |
| 16 |
712-3022 |
Hex Lock Nut, 1/2-13 This part replaces 1734514. Price: $3.61 |
| 17 |
1766328 |
SPACER Not Available Price: |
| 18 |
710-3181 |
Hex Cap Screw, 1/2-13 x 1.5 This part replaces 1100064. Price: $6.01 |
| 19 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 20 |
1723478 |
HITCH PIN Not Available Price: |
| 21 |
1766219 |
Hitch Bracket Price: Call Us |
| 22 |
96606 |
Retainer Hook Bracket This part replaces 16606. Price: $6.71 |
| 23 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 24 |
712-0324 |
Hex Lock Nut, 1/4 -20 Price: $3.38 |
| 25 |
723-0328 |
Retainer Strap Assembly Price: Call Us |
| 26 |
723-0476 |
Chute Strap Price: $30.86 |
| 27 |
731-0827D |
Discharge Chute This part replaces 731-0827A. Price: $125.85 |
| 28 |
731-0899E |
Chute Tube This part replaces 731-0899A. Price: $95.53 |
| 29 |
731-3272 |
EXTENSION TUBE Not Available Price: |
| 30 |
936-0175 |
Spring Washer, .265 x .562 x .025 This part replaces 736-0175. Price: $3.48 |
| 31 |
16591A-0637 |
Bag Hanger Bracket This part replaces 16591A. Price: $57.54 |
| 32 |
710-0473 |
Truss Mach. Screw, #10-24 x .5" Price: $3.90 |
| 33 |
710-0281 |
HEX SCREW 1/4-28 X.875 GR5 Not Available Price: |
| 34 |
712-0272 |
Hex Sems Nut, 10-24 Price: $3.58 |
| 35 |
749-0701A-0637 |
Grass Bag Frame This part replaces 749-0701A. Price: $57.24 |
| 36 |
964-0221 |
Grass Catcher Bag This part replaces 764-0221. Price: $64.60 |
| 37 |
16847A |
SCREEN ASSEMBLY Not Available Price: |
| 38 |
16596-0637 |
BRACKET ASSEMBLY-HINGE Not Available This part replaces 16596. Price: |
| 39 |
731-0821A |
COVER ASSEMBLY Not Available Price: |
| 40 |
731-0824A |
PLATE-PLASTIC Not Available Price: |
| 41 |
726-0258 |
Zip Twist Fastener Price: $3.74 |
| 42 |
723-0412 |
SEAL (7.1") Not Available Price: |
| 43 |
712-0147 |
U-Type Speed Nut, #10-24 Price: $6.01 |
| 44 |
710-0351 |
Truss B-Tap Screw, #10 x .5" Price: $3.90 |
| 45 |
710-0599 |
Hex Screw, 1/4-20 x .5" Price: $3.86 |
| 46 |
16594A |
COVER ASSEMBLY- Not Available Price: |
| 47 |
712-0138 |
Hex Nut, 1/4-28 Price: $5.99 |
