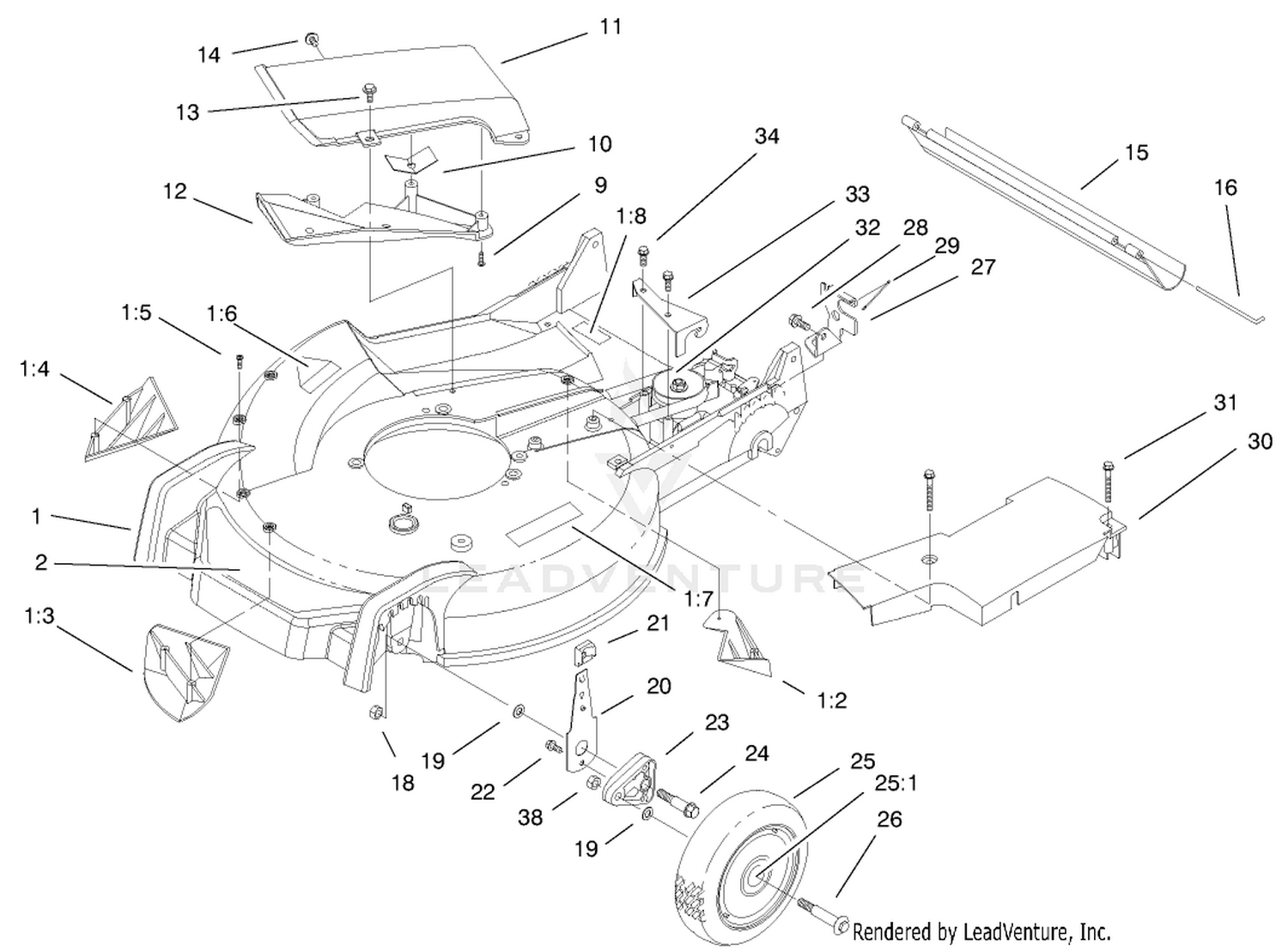

| Ref | Part Number | Description |
|---|
| 1 |
100-2887 |
HOUSING Price: $396.23 |
| 2 |
99-6347 |
DISCONTINUED Price: Call Us |
| 10 |
83-4750 |
SAFETY ISSUE, ORDER COVER ASM Price: Call Us |
| 11 |
100-1183 |
COVER-BLACK Price: $34.66 |
| 12 |
82-8620 |
DISCONTINUED Price: Call Us |
| 13 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 14 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 15 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $18.32 |
| 16 |
33-3208 |
ROD-SHIELD Price: $9.44 |
| 18 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 19 |
40-1940 |
WASHER Price: $1.59 |
| 20 |
66-0541 |
FRONT SPRING ARM ASM Price: $10.37 |
| 21 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 22 |
32144-85 |
SCREW-HWH Price: $1.59 |
| 23 |
66-0580 |
ARM-PIVOT, FRONT Price: $11.73 |
| 24 |
66-0560 |
BOLT-SHOULDER Price: $4.19 |
| 25 |
14-9989 |
WHEEL AND TIRE ASM Price: $28.44 |
| 25 |
98-7130 |
WHEEL ASM Price: $14.21 |
| 26 |
114-3468 |
SCREW-SHOULDER This part replaces 27-6232. Price: $3.15 |
| 26 |
92-1057 |
BOLT-SHOULDER Price: $3.05 |
| 27 |
82-5680-03 |
BRACKET-TRACTION, ADJ. Price: $7.85 |
| 28 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 29 |
46-7030 |
RETAINER-CABLE Price: $3.83 |
| 30 |
100-1182 |
DISCONTINUED Price: Call Us |
| 31 |
37-7260 |
SCREW-HHFTF Price: $3.64 |
| 32 |
62-6673 |
GEARCASE ASM Price: $500.04 |
| 33 |
62-4320-03 |
BRACKET-GUIDE, BELT Price: $17.69 |
| 34 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 38 |
3296-6 |
NUT-LOCK Price: $1.49 |
