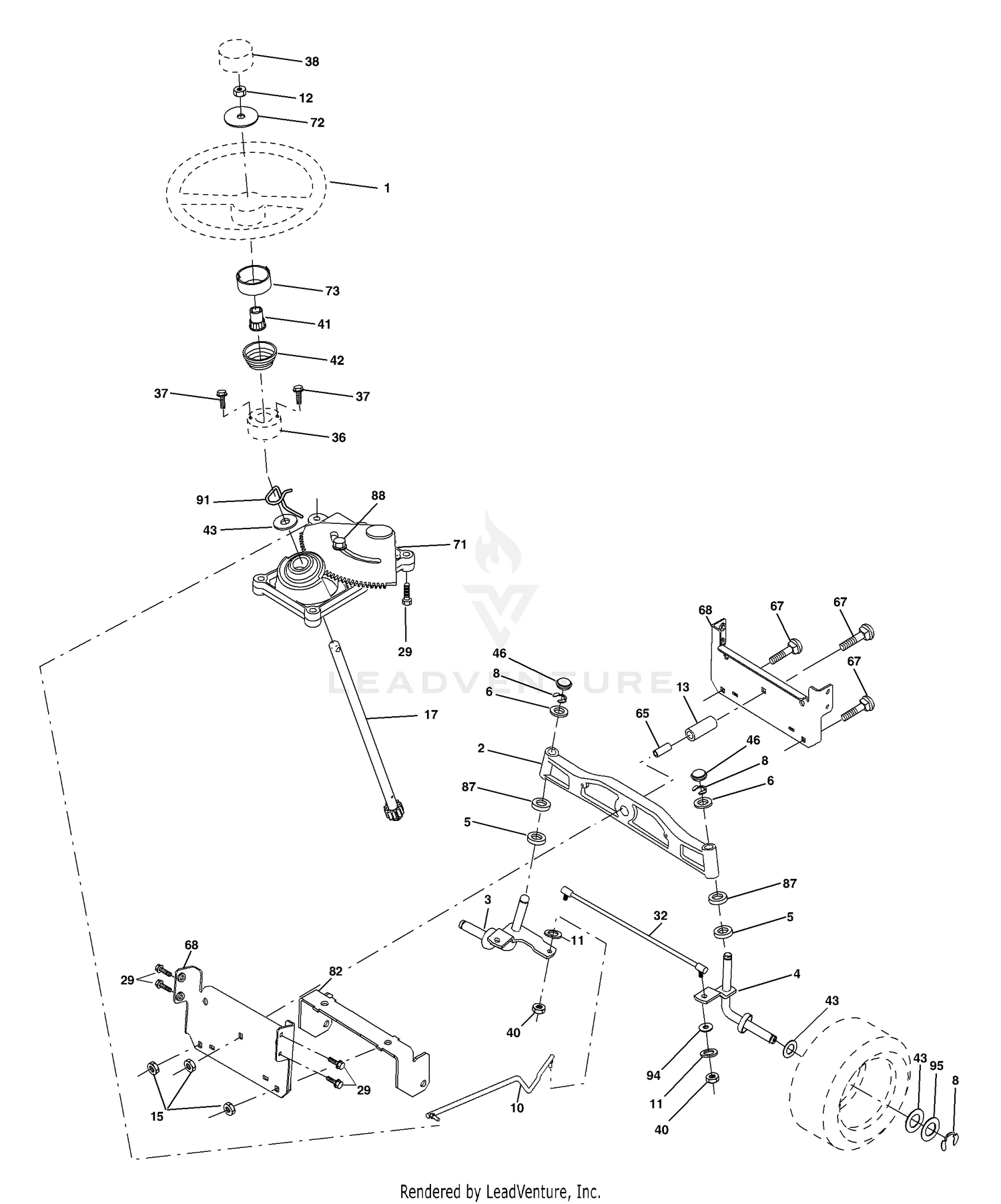

| Ref | Part Number | Description |
|---|
| 1 |
184704X428 |
Wheel Steering Price: Call Us |
| 1 |
98-9321 |
RING-KEY Price: $1.80 |
| 2 |
184706 |
Axle Price: Call Us |
| 2 |
98-9316 |
LATCH-HOOD Price: $61.25 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 3 |
98-9315 |
LATCH-LOCKING Price: $117.46 |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 5 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 6 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 7 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
98-9746 |
HOOD ASM Price: $1,782.58 |
| 9 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
321-4 |
SCREW-HH Price: $0.99 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
98-9314 |
GROMMET Price: $15.98 |
| 12 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 13 |
136518 |
Spacer Brg Axle Front Price: Call Us |
| 13 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 15 |
75-0570 |
CABLE-HOOD Price: $16.66 |
| 16 |
98-4573-03 |
SCREEN-HOOD, REAR Price: $74.71 |
| 17 |
106-7062 |
DECAL Price: $52.78 |
| 17 |
177883 |
Shaft Asm Strg Price: Call Us |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 19 |
321-39 |
SCREW-HH Price: $0.42 |
| 20 |
66-6140 |
DECAL Price: $25.48 |
| 21 |
92-5751 |
DECAL-HOOD, LH Price: $34.66 |
| 22 |
92-5752 |
DECAL-HOOD, RH Price: $34.66 |
| 23 |
63-6900-01 |
LH HOOD HINGE PLATE ASM Price: $23.15 |
| 24 |
63-6890-01 |
RH HOOD HINGE PLATE ASM Price: $12.36 |
| 25 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 27 |
72-3560 |
DECAL Price: $12.52 |
| 28 |
93-0081 |
STRIP-SEAL Price: $73.83 |
| 29 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 32 |
180580 |
Rod Tie Price: Call Us |
| 36 |
155105 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw TT #32.5 x 5 x 3/8 Flange Price: Call Us |
| 38 |
159946X428 |
Cap Wheel Steer Price: Call Us |
| 40 |
73540600 |
Nut Crownlock 3/8-24 Price: Call Us |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
163888X428 |
Boot Steering Price: Call Us |
| 43 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt Rdhd Sqn 3/8-16 x 2-1/4 Price: Call Us |
| 68 |
169827 |
Brace, Axle Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 72 |
19182411 |
Washer 9/16 ID x 1/20 OD 11 Ga. Price: Call Us |
| 73 |
160135X428 |
Extension Steering Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1-1/2 x .14 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 unc Price: Call Us |
| 91 |
175553 |
Clip Price: Call Us |
| 94 |
19121414 |
Rod Tie Price: Call Us |
