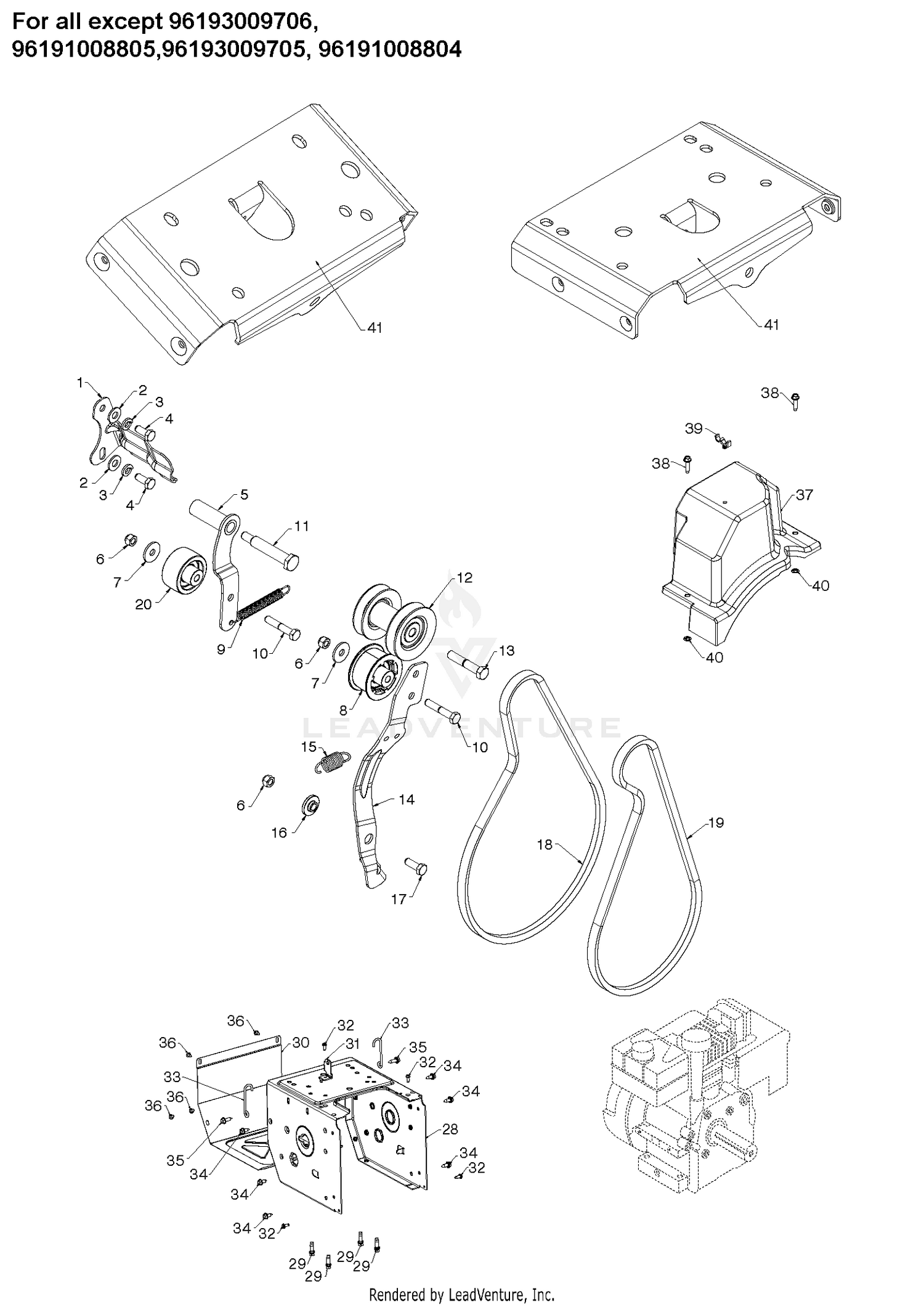

| Ref | Part Number | Description |
|---|
| 2 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 3 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 4 |
874610512 |
SCREW 5/16-24 X .75 GR5 Price: $2.99 |
| 5 |
593192502 |
ARM DRIVE IDLER CLEAR ZINC PLA This part replaces 581338203. Price: $9.99 |
| 6 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 7 |
532059289 |
STEEL WASHER Price: $3.99 |
| 8 |
581141402 |
PULLEYIDLER.2.0.W/SPACER.CZ This part replaces 581141401. Price: $9.99 |
| 9 |
580753001 |
SPRING RETURN IDLER ARM Price: $4.99 |
| 10 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
| 11 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $2.99 |
| 12 |
587893703 |
PULLEY.ASM.IMPELLER/DRIVE Price: $27.99 |
| 16 |
587343701 |
BUSHING.BRAKE.ARM Price: $5.99 |
| 17 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 18 |
584216102 |
BELT.DRIVE.SNOW.DUAL Price: $10.00 |
| 19 |
501818201 |
LOW CRANK IMPELLER BELT Price: $12.00 |
| 20 |
586880202 |
PULLEY.IDLER.FLNGLESS.W/SPACER This part replaces 586880201. Price: $9.99 |
| 28 |
580839405 |
FRAME.GEAR.CASE.ORANGE Price: $119.99 |
| 29 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 30 |
580839505 |
COVER COVER.FRAME MS668 ORANGE Price: $49.99 |
| 31 |
501060403 |
BRACKET.SHIFTER.BZP Price: $6.99 |
| 33 |
588954501 |
WIREFORM.SUPPORT.CABLE Price: $6.99 |
| 34 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 35 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 585217501. Price: $2.99 |
| 39 |
532145006 |
PUSH CLIP Price: $2.99 |
| 41 |
583940502 |
BRACKET.FRAME.SUPPORT.BLACK Price: $27.99 |
