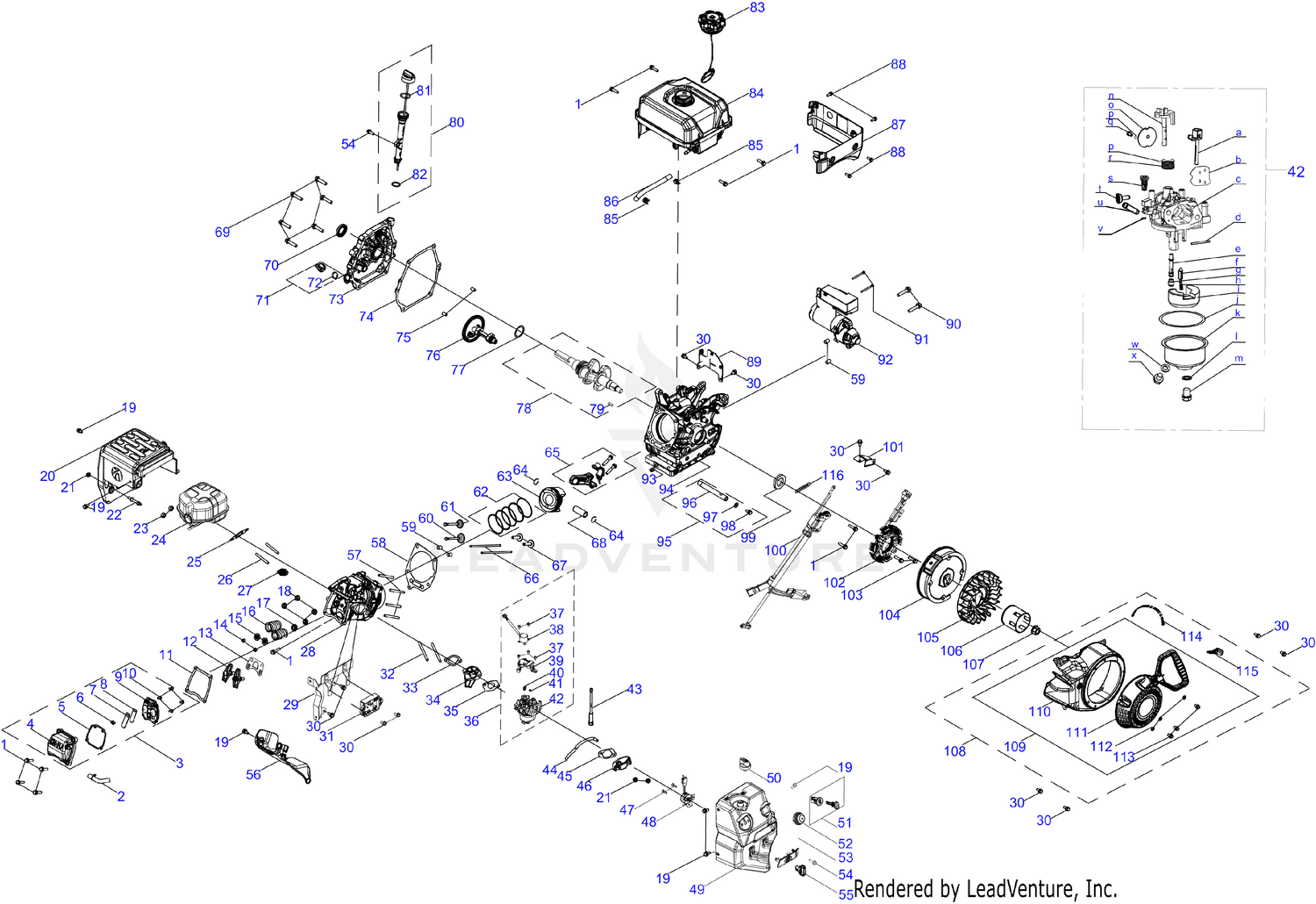

875-SU General Assembly

875-SU General Assembly

Parts (139)

RefPart NumberDescription
a None Choke Shaft
b None Choke Plate
c None Carburetor Body
d 711-06036 HINGE FLOAT PIN Price: $0.60
e None Nozzle Tube
f 751P14036A NEEDLE VALVE Price: $5.16
g None Main Jet
h 732P05251A NEEDLE VALVE SPRING Price: $1.70
i 731P09132A FLOAT Price: $4.45
j 951-11589A FUEL BOWL O-RING Price: $6.04
k 908-05001 FLOAT BOWL Price: $7.16
l 951-11348A FUEL BOWL GASKET Price: $5.07
m 710-04945 BOLT M8-1 x 10 Price: $3.66
n 100006057 Throttle Shaft Price: Call Us
o 708P05012 THROTTLE PLATE Price: $2.45
p 736-04638A LOCK WASHER Price: $2.88
q 710-06230 SCREW-3Mx6 Price: $2.98
r None Throttle Shaft Spring
s None Idle Jet Assembly
t 710P06038A SPEED IDLE SCREW Price: $2.45
u None Venting Hose
v 951-12019A PRIMER HOSE Price: $6.17
w 951-11349A FUEL DRAIN PLUG GASKET Price: $3.66
x 710-04938 FUEL DRAIN PLUG Price: $3.66
1 710-04919 BOLT M6-1 x 25 GR8.8 Price: $3.86
2 751P16807 BREATHER HOSE Price: $1.80
3 NSCO Not Serviceable/ Components Only Price: Call Us
4 751P16806 VALVE COVER Price: $10.80
5 751P16808A VALVE COVER GASKET Price: $1.39
6 710-07514 SCREW M3x8 Price: $1.54
7 751P22260 BREATHER PLATE Price: $1.70
8 751P16810 BREATHER VALVE Price: $1.26
9 751P16826A INNER VALVE COVER Price: $5.59
10 710-07534 SCREW M5x12 Price: $1.25
11 751P16827A VALVE COVER GASKET Price: $1.40
12 751P16828A ROCKER ARM Price: $4.25
13 751P16829 ROCKER ARM BASE Price: $1.60
14 751P16830 VALVE CLIP Price: $1.26
15 751P16831 VALVE SPRING SEAT Price: $1.86
16 751P16832A VALVE SPRING Price: $1.27
17 921-04705A INTAKE VALVE SEAL Price: $5.10
18 712-05521 NUT M8 Price: $0.92
19 710-04916 BOLT M6-1 x 14 GR8.8 Price: $3.86
20 751P16833 MUFFLER GUARD Price: $51.98
21 712-05015 HEX NUT Price: $5.78
22 751-16886 STUD, M6x55 Price: $1.70
23 712-04214 NUT Price: $3.86
24 751P16887A MUFFLER Price: $38.91
25 751P16888A MUFFLER GASKET Price: $1.45
26 910-06299 STUD Price: $4.09
27 951-10292A SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35
28 751P16889 CYLINDER HEAD Price: $118.09
29 751P22622 SNOW GUARD Price: $6.25
30 710-04915 BOLT M6-1 x 12 GR8.8 Price: $3.82
31 751P22876 E-GOV ECM This part replaces 751P22623. Price: $45.57
32 710-06423 STUD M6-1 x 98 Price: $4.09
33 751P16891A CARB INSULATOR GASKET Price: $2.30
34 751P16892 INSULATOR Price: $1.95
35 751P12005B CARBURETOR GASKET This part replaces 751P12005A. Price: $4.89
36 651P08739 CARBURETOR Price: $52.98
37 751-22625 SCREW M4x8 Price: $1.70
38 751P22626 STEPPER EGOV MOTOR Price: $9.68
39 751P22627 MOTOR BASE Price: $4.55
40 731P19432 CARBURETOR DAMPER Price: $5.29
41 732P06906 DAMPER SPRING Price: $3.95
42 651P08738 CARBURETOR Price: $33.03
43 751P16894A CHOKE LINKAGE Price: $2.84
44 951-15535 PRIMER HOSE Price: $6.88
45 751P16895A AIR FILTER GASKET Price: $2.30
46 751P16896 HEATER BOX Price: $2.62
47 751-20216 SCREW Price: $2.45
48 751P22628 SPEED CONTROL SWITCH Price: $14.24
49 751P16906 CONTROL PANEL Price: $10.11
50 951-15450A CHOKE KNOB This part replaces 951-15450. Price: $6.35
51 951-15022A ENGINE KEY SWITCH ASSEMBLY Price: $9.61
52 951-10639B PRIMER This part replaces 951-10639A. Price: $13.84
53 751P22630 SPEED KNOB COVER Price: $3.40
54 710-05003A BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11
55 751P22629 SPEED CONTROL KNOB Price: $2.27
56 751P16907 ENGINE SHROUD Price: $3.42
57 710-07594 STUD M8x60 Price: $2.22
58 751P16908 CYLINDER HEAD GASKET Price: $13.54
59 715-04120 DOWEL PIN Price: $3.56
60 751P16909 INTAKE VALVE Price: $4.17
61 751P16910 EXHAUST VALVE Price: $3.49
62 951-14471A PISTON RING SET 75MM Price: $20.34
63 751P16911 PISTON Price: $9.88
64 951-11632A PISTON PIN SNAP RING Price: $3.53
65 751P16912A CONNECTING ROD Price: $10.01
66 751P16913A PUSH ROD Price: $3.40
67 951-14432A TAPPET Price: $7.49
68 711P07981A PISTON PIN Price: $2.27
69 710-07614 BOLT M8x35 Price: $1.26
70 751P11368A OIL SEAL Price: $2.70
71 931-09966A OIL PLUG This part replaces 931-09966. Price: $4.81
72 951-11577 O-RING 15.8 x 2.5 Price: $3.53
73 751P22632 CRANKCASE COVER Price: $42.15
74 751P16927 CRANKCASE GASKET Price: $3.42
75 715-04121 DOWEL PIN Price: $3.56
76 751P16928 CAMSHAFT Price: $19.77
77 736P05602 THRUST WASHER Price: $5.07
78 751P22633 CRANKSHAFT Price: $66.08
79 751P10307A WOODRUFF KEY Price: $2.01
80 651P06055 DIPSTICK Price: $7.29
81 921-04795A O-RING Price: $3.38
82 951-15459 O-RING Price: $3.56
83 951-15172A FUEL CAP This part replaces 951-15172. Price: $15.87
84 751P16947 FUEL TANK Price: $67.59
85 951-11700A CARBURETOR HOSE CLAMP Price: $3.60
86 751P16948 FUEL HOSE Price: $3.32
87 751P16986 FUEL TANK COVER Price: $4.85
88 751-22263 Bolt, M5X14 Price: $1.70
89 751P17026 DIPSTICK BRACKET Price: $1.56
90 710-07634 BOLT, M8x40 Price: $1.70
91 751-15472 SCREW Price: $4.29
92 751P17046 ELECTRIC STARTER Price: $243.79
93 710-07374 OIL DRAIN PLUG Price: $3.00
94 751P22634 CRANKCASE Price: $93.43
95 NSCO Not Serviceable/ Components Only Price: Call Us
96 951-11350A OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05
97 736-04440A FLAT WASHER This part replaces 736-04440. Price: $6.01
98 710-04906 OIL DRAIN PLUG Price: $5.86
99 751P17067 OIL SEAL Price: $1.77
100 751P22635 IGNITION MODULE Price: $20.50
101 751-17106 WIRE BOARD Price: $6.54
102 751P22636 CHARGING COIL Price: $37.59
103 710-04943 BOLT-M6-1 x 28 GR8.8 Price: $3.76
104 751P22637 FLYWHEEL Price: $70.07
105 751P17146 COOLING FAN Price: $4.00
106 751P17166 STARTER CUP Price: $3.52
107 712-04287A FLYWHEEL NUT M14-1.5 This part replaces 712-04287. Price: $5.33
108 NSCO Not Serviceable/ Components Only Price: Call Us
109 NSCO Not Serviceable/ Components Only Price: Call Us
110 751P17266 BLOWER HOUSING Price: $14.80
111 951-15538A RECOIL STARTER This part replaces 951-15538. Price: $62.29
112 736-04455B FLAT WASHER Price: $5.94
113 710-06354 BOLT M6 x 10 Price: $5.73
114 725-06031 CABLE TIE - 3 x 150 Price: $2.04
115 951-10630 IGNITION KEY Price: $6.07
