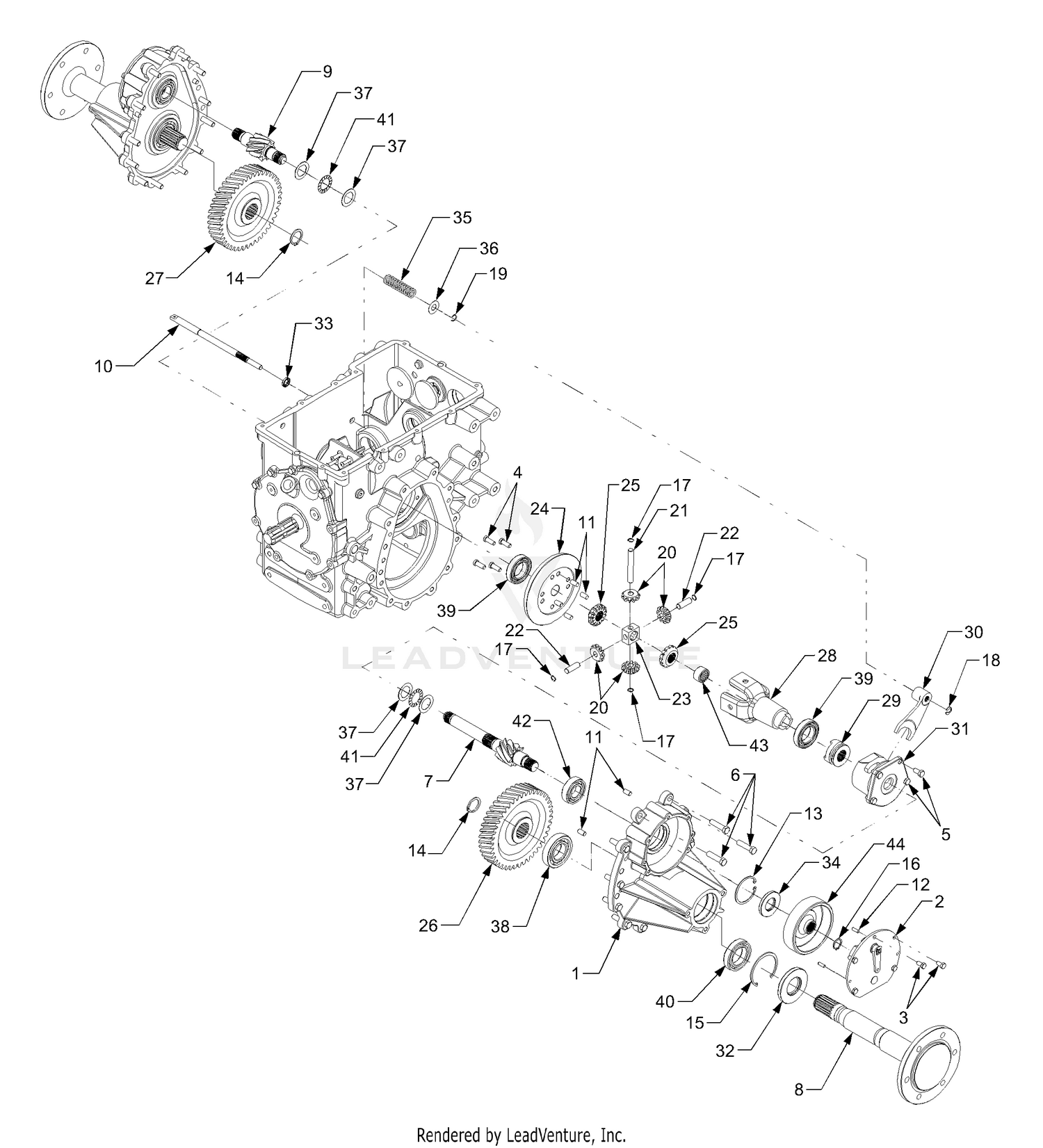

| Ref | Part Number | Description |
|---|
| 1 |
532404923 |
AXLE.ASM.SHAFT.W/ROLLPIN.PS Price: $54.99 |
| 1 |
919-3060A |
AXLE HOUSING Not Available This part replaces 619-3060. Price: |
| 1a |
532404307 |
SHAFT.AXLE.POWER.STEERING Price: $59.99 |
| 1b |
532184206 |
PIN.ROLL.3/16 Price: $2.99 |
| 2 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180081. Price: $199.99 |
| 2 |
661-3014 |
BRAKE ASSEMBLY-DRUM Not Available Price: |
| 3 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 3 |
710-0538 |
Screw, Hex Cap Lock, 5/16-18 x .625 GR5 Price: $4.02 |
| 4 |
532179830 |
BEARING, AXLE Price: $17.99 |
| 4 |
710-1695 |
SCREW 3/8-16 x 1 Not Available Price: |
| 5 |
532146315 |
SCREW Price: $8.99 |
| 5 |
710-3119 |
Screw, Hex Cap Lock, 3/8-16 x .75 GR5 Price: $5.91 |
| 6 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 6 |
710-3238 |
SCREW 7/16-14X1.75 GR5 Not Available Price: |
| 7 |
532155443 |
PIN KLIK, 1/4 Price: $3.99 |
| 7 |
711-1326 |
AXLE STUB SHAFT (LH) Not Available Price: |
| 8 |
711-1327 |
AXLE SHAFT Not Available Price: |
| 9 |
711-1358 |
AXLE STUB SHAFT (LH) Not Available Price: |
| 10 |
711-1389A |
DIFF LOCK SHAFT Not Available Price: |
| 11 |
715-0226 |
DOWEL PIN .375X.75 Not Available Price: |
| 12 |
715-3010 |
DOWEL PIN-1/4 x 3/4 Not Available Price: |
| 13 |
716-0180 |
Ring, Retaining Price: $10.38 |
| 14 |
716-0195 |
RETAINING RING Not Available Price: |
| 15 |
716-0196 |
RETAINING RING Not Available Price: |
| 15 |
94-3043 |
SWITCH-SAFETY, NEUTRAL Price: $44.90 |
| 16 |
716-0390 |
RETAINING RING Not Available Price: |
| 17 |
716-0391 |
RETAINING RING Not Available Price: |
| 18 |
716-0396 |
ROTOR CLIP Not Available Price: |
| 19 |
716-0397 |
RETAINING RING Not Available Price: |
| 20 |
717-1120 |
Gear, Differential, 10T Price: $28.27 |
| 21 |
717-1173 |
Shaft, Cross Price: $34.09 |
| 22 |
717-1178 |
Shaft, Cross Price: $25.43 |
| 23 |
717-1180 |
Block, Differential Pinion Price: $29.40 |
| 24 |
717-3316 |
Gear, Bevel, 65T Price: $301.53 |
| 25 |
717-3317 |
MITER GEAR 14T Not Available Price: |
| 26 |
717-3471 |
BULL GEAR (RH) Not Available Price: |
| 27 |
717-3478 |
BULL GEAR (LH) Not Available Price: |
| 28 |
718-0666 |
DIFFERENTIAL CARRIER Not Available Price: |
| 29 |
718-3104 |
DIFF LOCK COLLAR Not Available Price: |
| 30 |
718-3105 |
DIFF LOCK YOKE Not Available Price: |
| 31 |
718-3112 |
BEARING COVER Not Available Price: |
| 32 |
721-0495 |
OIL SEAL Not Available Price: |
| 33 |
721-0496 |
Seal, Oil Price: $9.52 |
| 34 |
921-3020A |
Seal, Oil, 1.18 ID This part replaces 721-3020A. Price: $10.75 |
| 35 |
732-0187 |
COMPRESSION SPRING Not Available Price: |
| 36 |
736-0355 |
Washer, Flat, .56 x 1.0 x .04 Not Available Price: |
| 37 |
736-0715 |
THRUST WASHER Not Available Price: |
| 38 |
741-0721 |
BALL BEARING Not Available Price: |
| 39 |
741-1104 |
BEARING BALL Not Available Price: |
| 40 |
741-1107 |
BALL BEARING Not Available Price: |
| 41 |
741-1112 |
THRUST BEARING Not Available Price: |
| 42 |
941-3033A |
Bearing, Ball This part replaces 741-3033A. Price: $50.07 |
| 43 |
741-3080 |
Bearing, Needle Price: $22.21 |
