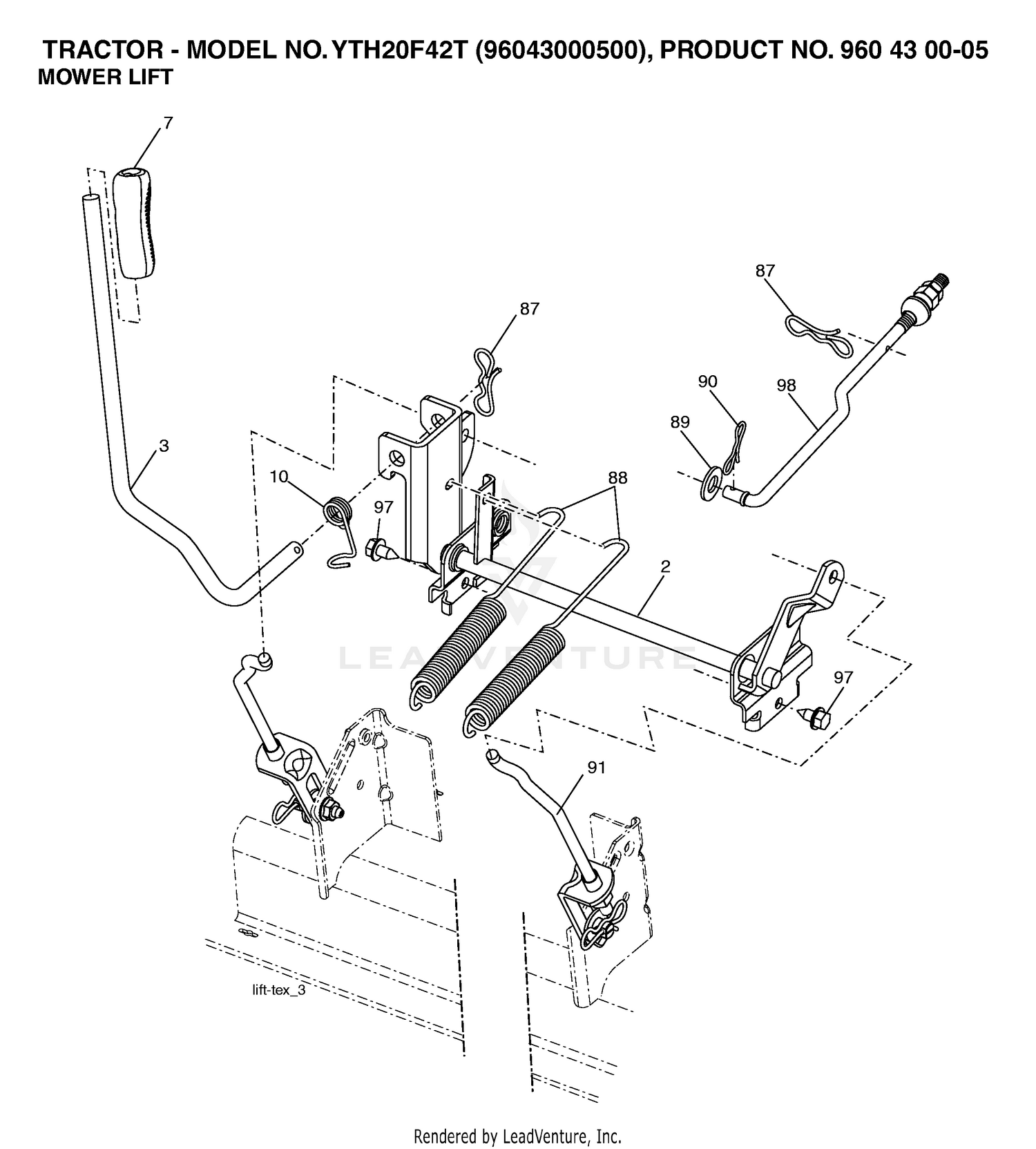

| Ref | Part Number | Description |
|---|
| 1 |
3231-10 |
SCREW-CARR Price: $1.22 |
| 2 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 3 |
596270601 |
Levers This part replaces 532195230. Price: $19.99 |
| 3 |
63-8410 |
WASHER Price: $1.76 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
130-6043 |
DECAL-SERVICE Price: $37.66 |
| 6 |
120-4195 |
TANK-FUEL Price: $630.36 |
| 7 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 532196492. Price: $7.99 |
| 8 |
104-5228 |
FITTING-ELBOW, 90 DEG Price: $17.50 |
| 9 |
120-8908 |
PIPE-STAND Price: $26.42 |
| 10 |
46-6560 |
BUSHING Price: $2.94 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 11 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 12 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 13 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 14 |
121-1688 |
GAUGE-FUEL Price: $197.80 |
| 15 |
121-1707 |
GASKET-FUEL, VITON Price: $22.66 |
| 16 |
125-9171 |
CAP-FUEL Price: $46.70 |
| 17 |
121-1514-03 |
BRACKET-LATCH, RH Price: $31.14 |
| 18 |
120-4190-0P |
TANK SUPPORT ASM [PRIMED] This part replaces 120-4190-03. Price: $263.49 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
120-4193-0P |
BRACKET-FUEL TANK This part replaces 120-4193-03. Price: $16.84 |
| 21 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 22 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 23 |
103-4080 |
LATCH-RUBBER Price: $29.99 |
| 24 |
99-5414 |
STRAP-CLEANER, AIR Price: $48.46 |
| 25 |
104-3563 |
INDICATOR Price: $58.60 |
| 26 |
99-5410 |
AIR CLEANER ASM Price: $381.32 |
| 27 |
322-6 |
SCREW-HH Price: $0.45 |
| 28 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 29 |
121-1513-03 |
BRACKET-LATCH, LH Price: $31.14 |
| 41 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
532195301 |
SPRINGS This part replaces 532195304. Price: $11.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 98 |
581506903 |
Links This part replaces 532195270. Price: $9.99 |
| 100 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $5.99 |
