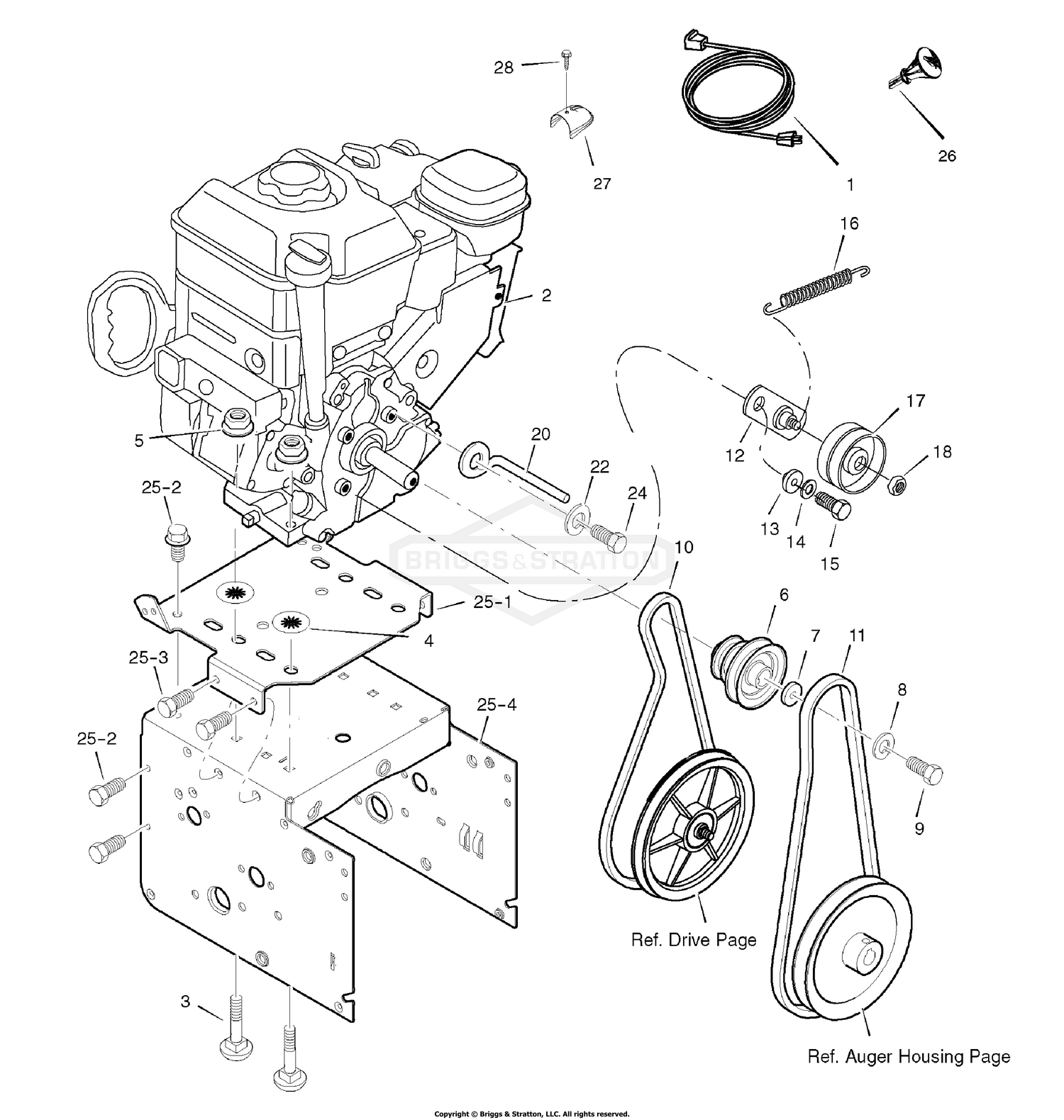

| Ref | Part Number | Description |
|---|
| 1 |
6219MA |
CORD, Electric, 10FT. 110V Price: $37.42 |
| 2 |
21M1140124E1 |
ENGINE Price: Call Us |
| 3 |
704210 |
BOLT, 5/16-18X1.50 This part replaces 002X97MA. Price: $4.19 |
| 4 |
028X76MA |
NUT,SPEED Price: $3.82 |
| 5 |
703409 |
NUT, 5/16-18, GR5 This part replaces 710026MA. Price: $4.92 |
| 6 |
1501109MA |
PULLEY, ENGINE Price: $38.55 |
| 7 |
17X170MA |
WASHER.46.97.25 FLAT Price: $4.79 |
| 8 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 71063MA. Price: $2.95 |
| 9 |
001X20MA |
BOLT,HEX.37 24X1.00 Z Price: $3.85 |
| 10 |
1733324SM |
BELT, DRIVE Price: $17.10 |
| 11 |
585416MA |
BELT Price: $20.39 |
| 12 |
1687797YP |
KIT, IDLER ASEM This part replaces 1501112YZMA. Price: $7.81 |
| 13 |
1501065MA |
BUSHING,IDLER BRKT Price: $5.09 |
| 14 |
5025170SM |
WASHER, 5/16" LOCK This part replaces 71060MA. Price: $3.51 |
| 15 |
710097MA |
SCREW, 5/16-24X .75 Price: $3.52 |
| 16 |
53704MA |
SPRING, IDLER TRACTIO Price: $7.59 |
| 17 |
1502120MA |
PULLEY, IDLER Price: $20.34 |
| 18 |
703996 |
NUT, HEX, 3/8-16 This part replaces 590MA. Price: $4.41 |
| 20 |
1739070YP |
BELT GUIDE This part replaces 1501201MA. Price: $7.13 |
| 22 |
5025170SM |
WASHER, 5/16" LOCK This part replaces 71060MA. Price: $3.51 |
| 24 |
710097MA |
SCREW, 5/16-24X .75 Price: $3.52 |
| 26 |
794696 |
KEY SET Price: $7.17 |
| 27 |
794213 |
DEFLECTOR, MUFFLER Price: $12.08 |
