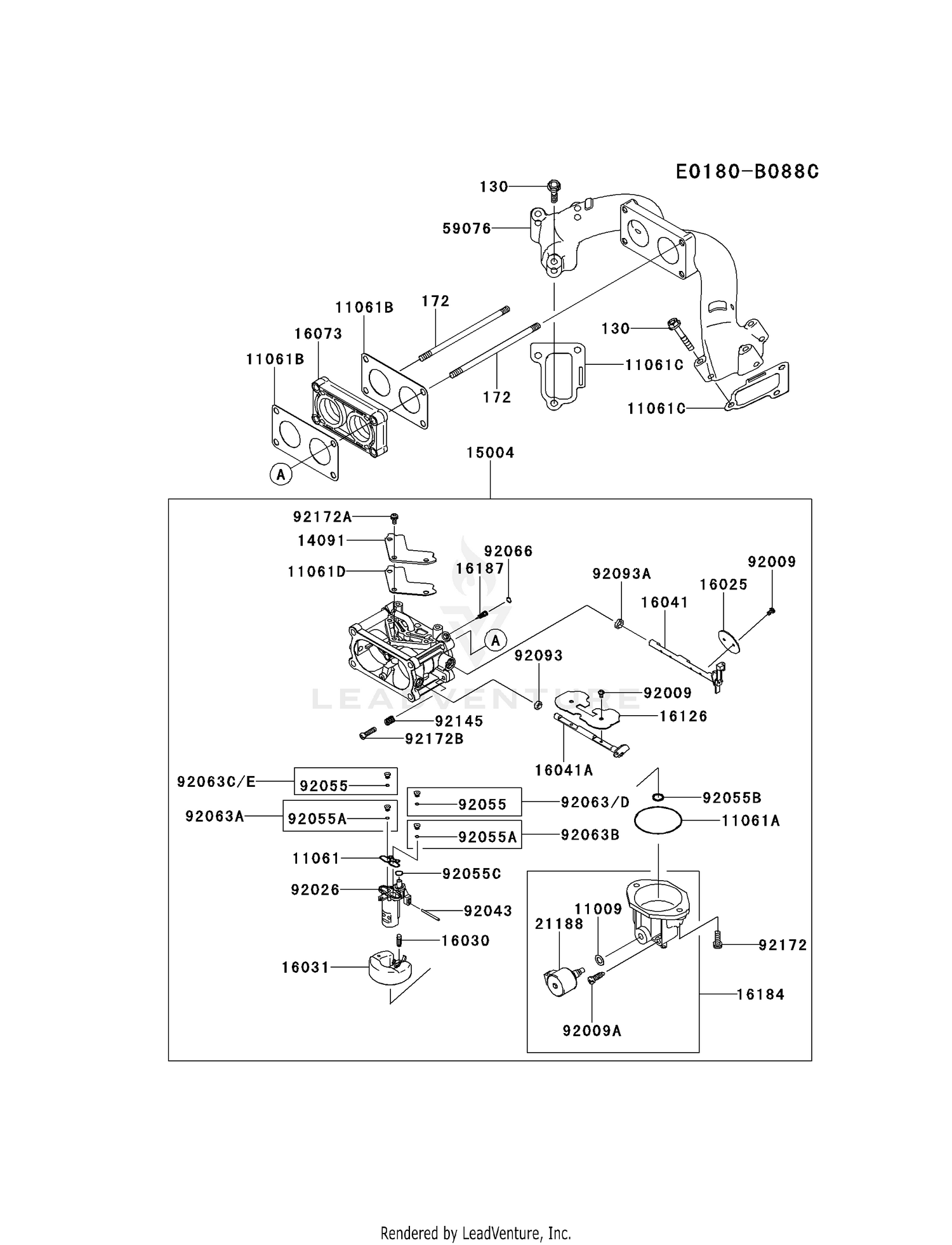

FXT00V-DS19 CARBURETOR
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 130 | KM-130AA0635 | FLANGED BOLT 6X35 Price: $2.49 |
| 11009 | KM-11009-2056 | GASKET-SOLENOID Price: $2.49 |
| 11061 | KM-11061-7037 | GASKET-FLOAT SPACE Price: $7.63 |
| 11061A | KM-11061-7038 | GASKET-FLOAT CHAMB Price: $2.46 |
| 11061B | KM-11061-7057P | INSULATOR GASKET Price: $2.79 |
| 11061C | KM-11061-7062 | GASKET-MANIFOLD Price: $10.64 |
| 11061D | KM-11061-7067 | GASKET-CARB COVER Price: $3.54 |
| 14091 | KM-14091-7059 | PLATE-CARB COVER Price: $10.80 |
| 15004 | KM-15004-1015 | CARBURETOR Price: $211.99 |
| 16025 | KM-16025-7012 | PLATE-THROTTLE SHA Price: $11.85 |
| 16030 | KM-16030-7004 | FLOAT VALVE Price: $33.63 |
| 16031 | KM-16031-7003 | FLOAT-CHARBURETOR Price: $51.74 |
| 16041 | KM-16041-0022 | CARBURETOR THROTTLE SHAFT Price: $64.14 |
| 16041A | KM-16041-7035 | SHAFT-CARB CHOKE Price: $41.73 |
| 16073 | KM-16073-7010 | INSULATOR Price: $11.58 |
| 16126 | KM-16126-7019 | CHOKE SHAFT PLATE Price: $12.39 |
| 16184 | KM-16184-7023 | CHAMBER-ASSEMBLY FLOAT Price: $192.17 |
| 16187 | KM-16187-0576 | NEEDLE JET Price: $13.67 |
| 21188 | KM-21188-7003 | SOLENOID-CARBURETO Price: $189.04 |
| 59076 | KM-59076-7012 | INTAKE MANIFOLD Price: $153.40 |
| 92009 | KM-92009-7003 | SCREW Price: $2.55 |
| 92009A | KM-92009-7006 | SCREW-DRAIN Price: $2.46 |
| 92026 | KM-92026-7022 | SPACER-CARB FLOAT Price: $7.29 |
| 92043 | KM-92043-7016 | PIN-FLOAT Price: $1.82 |
| 92055 | KM-92055-7013 | O-RING Price: $2.49 |
| 92055A | KM-92055-7013 | O-RING Price: $2.49 |
| 92055B | KM-92055-7016 | O-RING Price: $2.46 |
| 92055C | KM-92055-7024 | O-RING Price: $2.42 |
| 92063 | KM-92063-7099 | MAIN JET #134 Price: $24.37 |
| 92063A | KM-92063-7099 | MAIN JET #134 Price: $24.37 |
| 92063B | KM-92063-7100 | MAIN JET #140 Price: $27.16 |
| 92063C | KM-92063-7101 | MAIN JET #131 Price: $26.81 |
| 92063D | KM-92063-7102 | MAIN JET #137 Price: $26.81 |
| 92063E | KM-92063-7103 | MAIN JET #128 Price: $26.81 |
| 92066 | KM-92066-7009 | EXPANSION PLUG Price: $10.81 |
| 92093 | KM-92093-7001 | CHOKE SHAFT SEAL Price: $2.59 |
| 92093A | KM-92093-7002 | THROTTLE SHAFT SEAL Price: $1.79 |
| 92145 | KM-92145-7039 | SPRING-THROT ADJUST Price: $2.67 |
| 92172 | KM-92172-7005 | FLOAT SCREW CHAMBE Price: $2.55 |
| 92172A | KM-92172-7006 | SCREW-CARB CVR PLA Price: $2.29 |
| 92172B | KM-92172-7039 | SCREW-THROTTLE ADJ Price: $1.48 |
