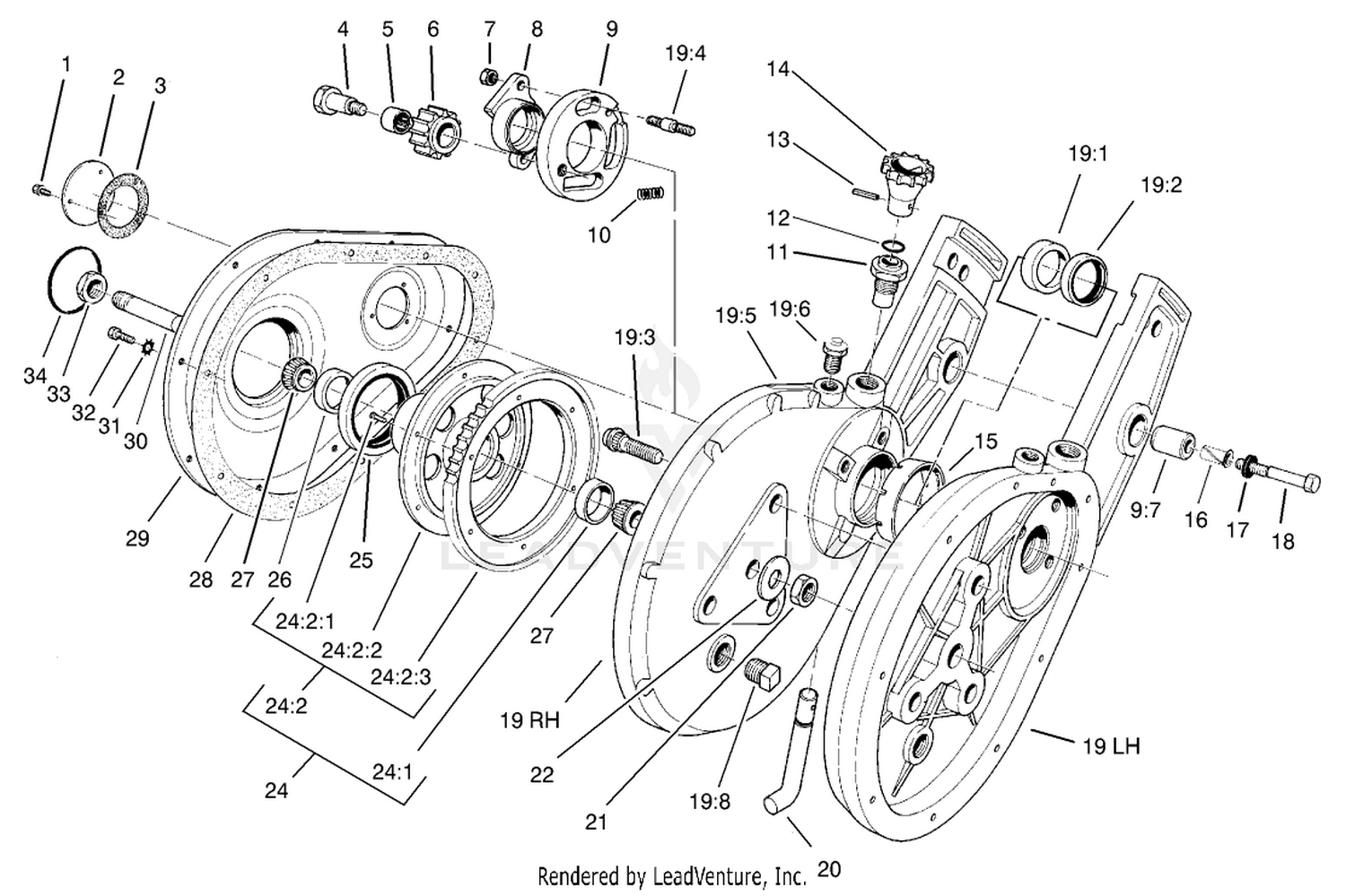

| Ref | Part Number | Description |
|---|
| 1 |
11-8960 |
FASTENER ASM Price: $1.90 |
| 2 |
5-1460 |
COVER-PINION, REEL Price: $6.07 |
| 3 |
106-5408 |
GASKET-COVER Price: $2.12 |
| 4 |
3-9117 |
SHAFT-IDLER PINION, LH Price: $27.41 |
| 5 |
252-6 |
BEARING-NEEDLE Price: $10.72 |
| 6 |
12-1190 |
PINION-IDLER Price: $81.80 |
| 7 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 8 |
47-4470 |
RETAINER-RATCHET RING, RH Price: $78.24 |
| 9 |
3-4170 |
RH IDLER RING ASM Price: $108.03 |
| 10 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 11 |
3-3892 |
BEARING-FINGER, THROWOUT Price: $47.64 |
| 12 |
237-21 |
O-RING Price: $0.70 |
| 13 |
3283-1 |
PIN-GROOVED Price: $1.97 |
| 14 |
5-1464-03 |
HANDLE-RATCHET, THROWOUT Price: $31.84 |
| 15 |
68-9970 |
GUARD-SEAL Price: $2.76 |
| 16 |
47-4430 |
BUSHING-FLANGED Price: $4.04 |
| 17 |
47-5640 |
SPACER-RUBBER Price: $1.76 |
| 18 |
47-4460 |
BOLT-SHOULDER, ECC Price: $44.83 |
| 19 |
11-5049 |
LH GEAR CASE ASM Price: $820.85 |
| 19 |
11-5059 |
RH GEAR CASE ASM Price: $820.85 |
| 20 |
3-3891 |
FINGER-THROWOUT, LH Price: $49.71 |
| 21 |
3219-10 |
NUT-HEX Price: $1.22 |
| 22 |
3256-15 |
WASHER-FLAT Price: $0.68 |
| 24 |
2-4599 |
RING GEAR AND HUB ASM Price: $422.31 |
| 25 |
84-8200 |
SEAL-OIL Price: $13.93 |
| 27 |
254-78 |
BEARING-CONE Price: $12.22 |
| 28 |
106-5409 |
GASKET-CASE, GEAR Price: $8.86 |
| 29 |
140-5509 |
ASM - GEARCASE COVER This part replaces 47-4060-01. Price: $75.48 |
| 30 |
49-4100 |
SHAFT-AXLE, STUB Price: $28.31 |
| 31 |
3254-17 |
WASHER-LOCK Price: $0.81 |
| 32 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 33 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
