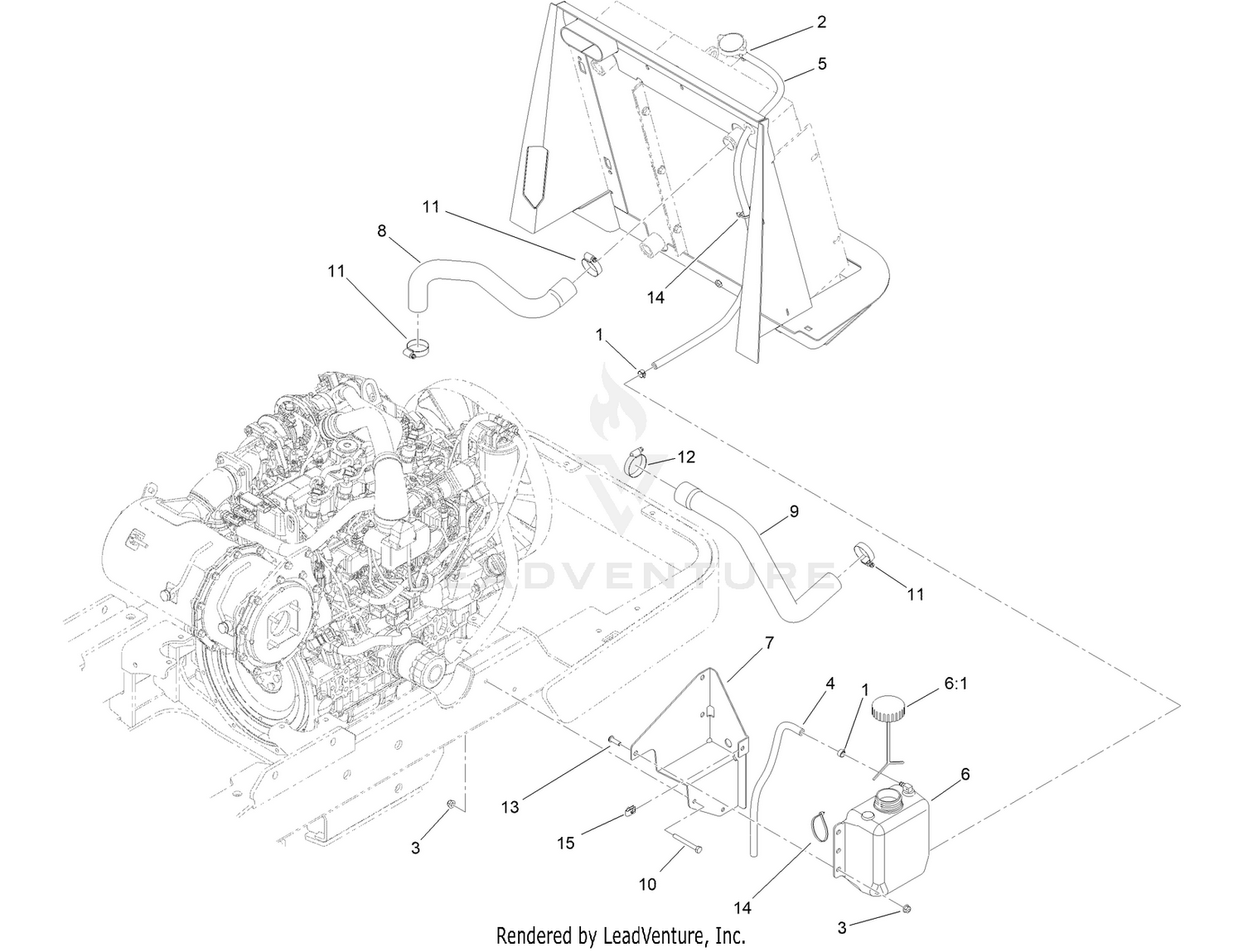

Engine Cooling and Hose Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 2 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 110-4109 | HOSE-FUEL Price: $11.24 |
| 5 | 110-4114 | HOSE-FUEL Price: $30.59 |
| 6 | 144-6219 | RESERVOIR-COOLANT ASM Price: $142.69 |
| 7 | 136-5171-01 | BRACKET-BOTTLE Price: $68.24 |
| 8 | 136-5178 | HOSE-COOLANT, UPPER Price: $43.32 |
| 9 | 136-5179 | HOSE-COOLANT, LOWER Price: $56.54 |
| 10 | 322-13 | SCREW-HH Price: $2.73 |
| 11 | 2412-111 | CLAMP Price: $4.39 |
| 12 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 13 | 3274-104 | SCREW-HSBH Price: $0.54 |
| 14 | 3290-378 | TIE-CABLE Price: $0.79 |
