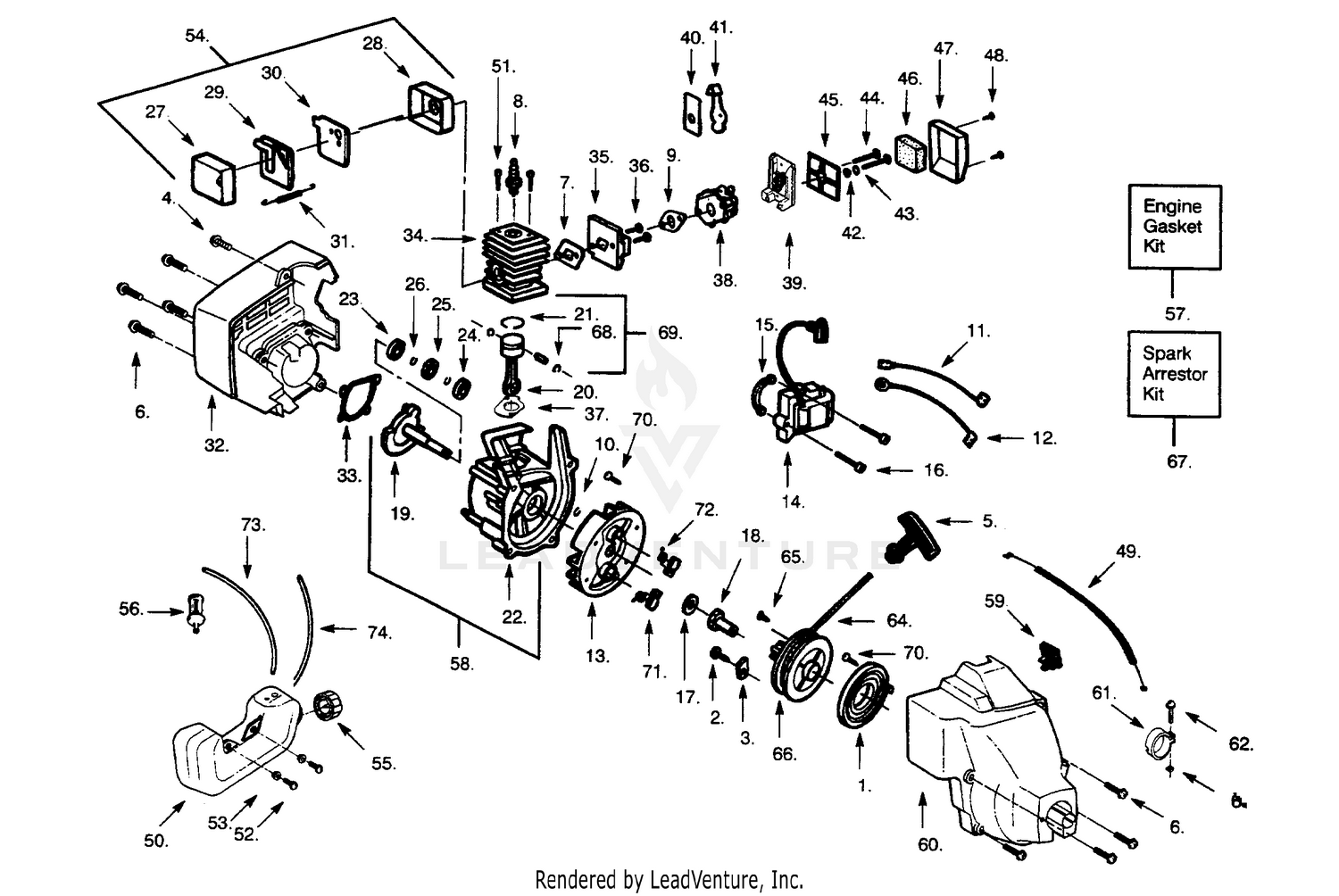

| Ref | Part Number | Description |
|---|
| 1 |
111-1671 |
COVER Price: $21.86 |
| 1 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 2 |
09472 |
WASHER-PLAIN Price: $1.25 |
| 2 |
530015775 |
Screw-Pulley Price: $1.99 |
| 3 |
09364 |
SETSCREW M6 X 25 Price: $1.34 |
| 3 |
530027523 |
Retainer-Pulley Price: $2.99 |
| 4 |
111-1685 |
ROOF Price: $729.92 |
| 4 |
530015934 |
Screw-Shrd/Fan Hsg. Price: $1.99 |
| 5 |
09438 |
NUT M6 X 1.5 PLAIN Price: $1.39 |
| 5 |
530027569 |
Starter Handle Price: $1.99 |
| 6 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 6 |
964131 |
WASHER Price: $1.60 |
| 7 |
530019233 |
Gasket-Cylind./Carb. Price: $1.99 |
| 7 |
964130 |
DISCONTINUED Price: Call Us |
| 8 |
530030075 |
Spark Plug (RCJ 8Y) Price: Call Us |
| 8 |
ZDH1H040U |
HEX HD.SET SCW.M8*40 Price: $1.31 |
| 9 |
09369 |
SETSCREW M8 X 30 Price: $1.40 |
| 9 |
530019194 |
Gasket-Carb. Price: $1.99 |
| 10 |
530015945 |
RetainerRing-C'case Price: $1.99 |
| 10 |
ZWP1H000U |
WASHER (M8) Price: $1.40 |
| 11 |
09658 |
WASHER M4 X 9 X 0.8 Z/P Price: $1.40 |
| 11 |
530014663 |
Lead Wire Price: $5.99 |
| 12 |
111-1688 |
SCREW 3.5 X 16 SELFTAP Price: $1.42 |
| 12 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 13 |
545221701 |
FLYWHEEL ASSY This part replaces 530039149. Price: $8.99 |
| 14 |
530039163 |
Ignition Module Price: $34.99 |
| 15 |
530036145 |
Spacer- Ignit. Module Price: $1.99 |
| 16 |
530015954 |
Screw-Ignit. Module Price: $1.99 |
| 17 |
530015828 |
Washer-Thrust Price: $1.99 |
| 18 |
530038604 |
Drive Coupling Price: $1.99 |
| 19 |
530014532 |
Crankshaft Ass'y. Price: Call Us |
| 20 |
530069615 |
Connecting Rod Ass'y. Price: $14.99 |
| 21 |
530036404 |
Piston Ring Price: $4.99 |
| 22 |
530014861 |
Crankcase Ass'y.(Incl 23-26) Price: $37.77 |
| 23 |
530032125 |
Inner Bearing Price: $11.99 |
| 24 |
530032124 |
Outer Bearing Price: $4.99 |
| 25 |
530019179 |
C'case Seal Price: $2.99 |
| 26 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 27 |
530036578 |
Muffler Body Price: $2.99 |
| 28 |
530036577 |
Muffler Cover Price: $2.99 |
| 29 |
530038602 |
Muffler Baffle-Exit Price: $1.99 |
| 30 |
530036579 |
Muffler Baffle-First Price: $2.99 |
| 31 |
530016197 |
Muffler Spring This part replaces 530029930. Price: $1.99 |
| 32 |
530038189 |
Rear Shroud Price: $5.99 |
| 33 |
530019181 |
Gasket-C'case Price: $1.99 |
| 34 |
530069618 |
Cylinder Kit Price: $89.99 |
| 35 |
530047659 |
Carb. Adaptor Price: $2.99 |
| 36 |
530016014 |
Screw-Carb Adaptor Price: $1.99 |
| 37 |
530019223 |
Gasket-Cylinder Price: $1.99 |
| 38 |
530069642 |
Carburetor Kit-WT 223 (Incl. Limiter Cap and Primer Bulb Ass'y) Price: $3.33 |
| 39 |
530038582 |
Air Box Price: $3.33 |
| 40 |
530038747 |
Choke Plate Price: $1.99 |
| 41 |
530038686 |
Choke Shutter Price: $1.99 |
| 42 |
530015254 |
Wave Washer Price: $1.99 |
| 43 |
530015852 |
Choke Spacer Price: $1.99 |
| 44 |
530015887 |
Screw-Carburetor Price: $1.99 |
| 45 |
530036569 |
Filter Plate Price: $1.99 |
| 46 |
530036575 |
Air Filter Foam Price: $1.99 |
| 47 |
530036568 |
Air Filter Cover Price: $1.99 |
| 48 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 49 |
530071548 |
Assy Throttle Cable This part replaces 530036744. Price: $3.99 |
| 50 |
530047255 |
Fuel Tank Ass'y Price: $3.33 |
| 51 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 52 |
530015814 |
Screw-Fuel Tank Price: $1.99 |
| 53 |
530016131 |
Washer- Fuel Tank Price: $1.99 |
| 54 |
530069660 |
Muffler Kit This part replaces 530069389. Price: $11.99 |
| 55 |
530014347 |
Fuel Cap Ass'y. Price: $4.99 |
| 56 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 57 |
530069616 |
Engine Gasket Kit (Incl. 7,9,33,37) Price: $6.99 |
| 58 |
530014729 |
C'case & C'shaft Assy. (Incl. 10, 19,22-26) Price: Call Us |
| 59 |
530071356 |
Switch-Momentary This part replaces 530038114. Price: $4.99 |
| 60 |
530049116 |
Fan Housing Ass'y Price: $10.04 |
| 61 |
530016126 |
Clamp-Nose Cone Price: $0.20 |
| 62 |
530015650 |
Screw-Nose Cone Price: $1.99 |
| 63 |
530016124 |
Nut-Nose Cone Price: $1.99 |
| 64 |
530069232 |
Rope Kit Price: $3.99 |
| 65 |
530016080 |
Screw-Rope Retain. Price: $1.99 |
| 66 |
530071786 |
STARTER PULLEY KIT This part replaces 530069400. Price: $3.99 |
| 67 |
530069380 |
Spark Arrestor Kit Price: $3.99 |
| 68 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 69 |
530069620 |
Piston Kit (Incl. 21,68 & Pin) Price: $24.99 |
| 70 |
530015882 |
Screw-Flywheel Price: $1.99 |
| 71 |
530029939 |
Starter Dog Price: Call Us |
| 72 |
530047570 |
Starter Dog Spring Price: $1.99 |
| 73 |
530069247 |
Fuel Line-Carb./Tank Price: $3.99 |
