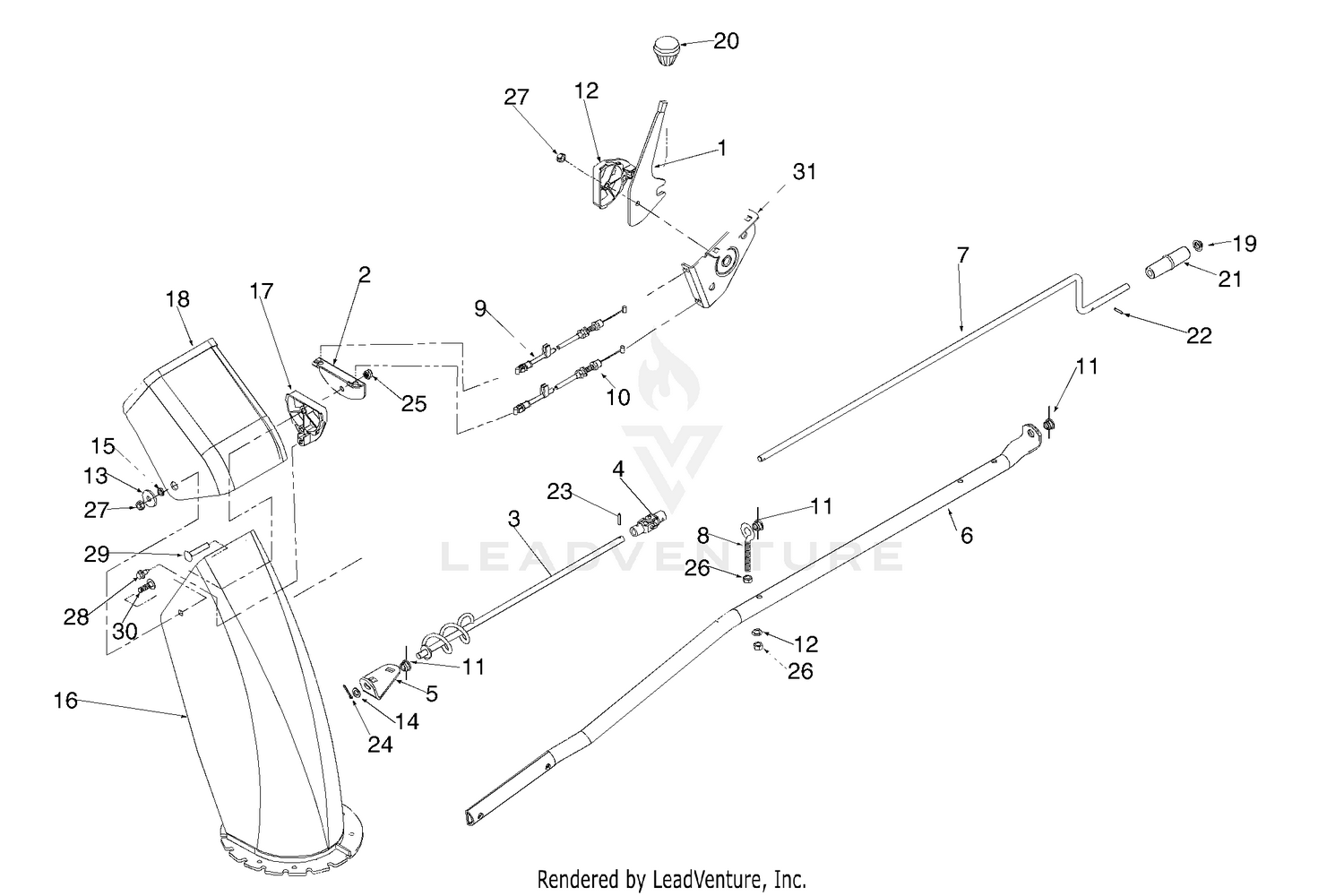

| Ref | Part Number | Description |
|---|
| 1 |
784-5604A-0637 |
Handle, Chute Tilt This part replaces 784-5604. Price: $22.34 |
| 2 |
784-5594 |
CABLE BRACKET Price: $9.44 |
| 3 |
784-5401A |
CHUTE CRANK ASSEMBLY Not Available This part replaces 784-5401. Price: |
| 4 |
684-04350 |
Joint Block Assembly This part replaces 784-5149. Price: $25.48 |
| 5 |
784-5123-0637 |
BRACKET-CHUTE CRAN This part replaces 784-5123. Price: $15.67 |
| 6 |
749-3072 |
TUBE-CRANK SUPPORT Not Available Price: |
| 7 |
747-0931A |
CHUTE CRANK ROD Not Available This part replaces 747-0931. Price: |
| 8 |
747-0481A |
EYE-BOLT Not Available Price: |
| 9 |
946-0903 |
CABLE W/CLIP-CHUTE This part replaces 746-0903. Price: $46.91 |
| 10 |
946-0902 |
CABLE-CHUTE This part replaces 746-0902. Price: $43.36 |
| 11 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 12 |
736-0242 |
WASH:BELVL:.340 ID X .872 OD Price: $3.75 |
| 13 |
736-0231 |
WASH:FL:.344 ID:1.125 OD:.12 Price: $4.02 |
| 14 |
736-0140 |
FL-WASH .385 ID X .62 OD X .06 Price: $6.20 |
| 15 |
931-1319 |
CHUTE PIVOT SPACER Not Available This part replaces 731-1319. Price: |
| 16 |
731-0903E |
Chute, Lower This part replaces 731-1318. Price: $37.79 |
| 17 |
731-1313C |
Cbl. Guide, Chute Tilt This part replaces 731-1313B. Price: $10.46 |
| 18 |
731-0846C |
Chute, Upper, 6.0 This part replaces 731-0849. Price: $45.74 |
| 19 |
726-0100 |
CAP:PUSH X 3/8 ROD Price: $3.75 |
| 20 |
920-0232 |
Knob This part replaces 720-0232. Price: $9.11 |
| 21 |
720-0201A |
KNOB:CRK:1.00 DIA X 3.2 CHUTE Price: $9.62 |
| 22 |
915-0138 |
Rolled Pin, 1/8 x .63 This part replaces 715-0138. Price: $4.17 |
| 23 |
715-0129 |
SPIROL PIN - 1/8 DIA X .812 LN Price: $4.19 |
| 24 |
714-0507 |
PIN:COT:3/32 X .750 Price: $3.93 |
| 25 |
712-0429 |
NUT:HX:5/16-18:GRC:LOCK Price: $3.56 |
| 26 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 27 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 28 |
710-0896 |
SCR:1/4-14:.625:HXINDWSH Price: $3.86 |
| 29 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 30 |
710-0276 |
SCR:CARR:5/16-18:1.00 Price: $3.68 |
