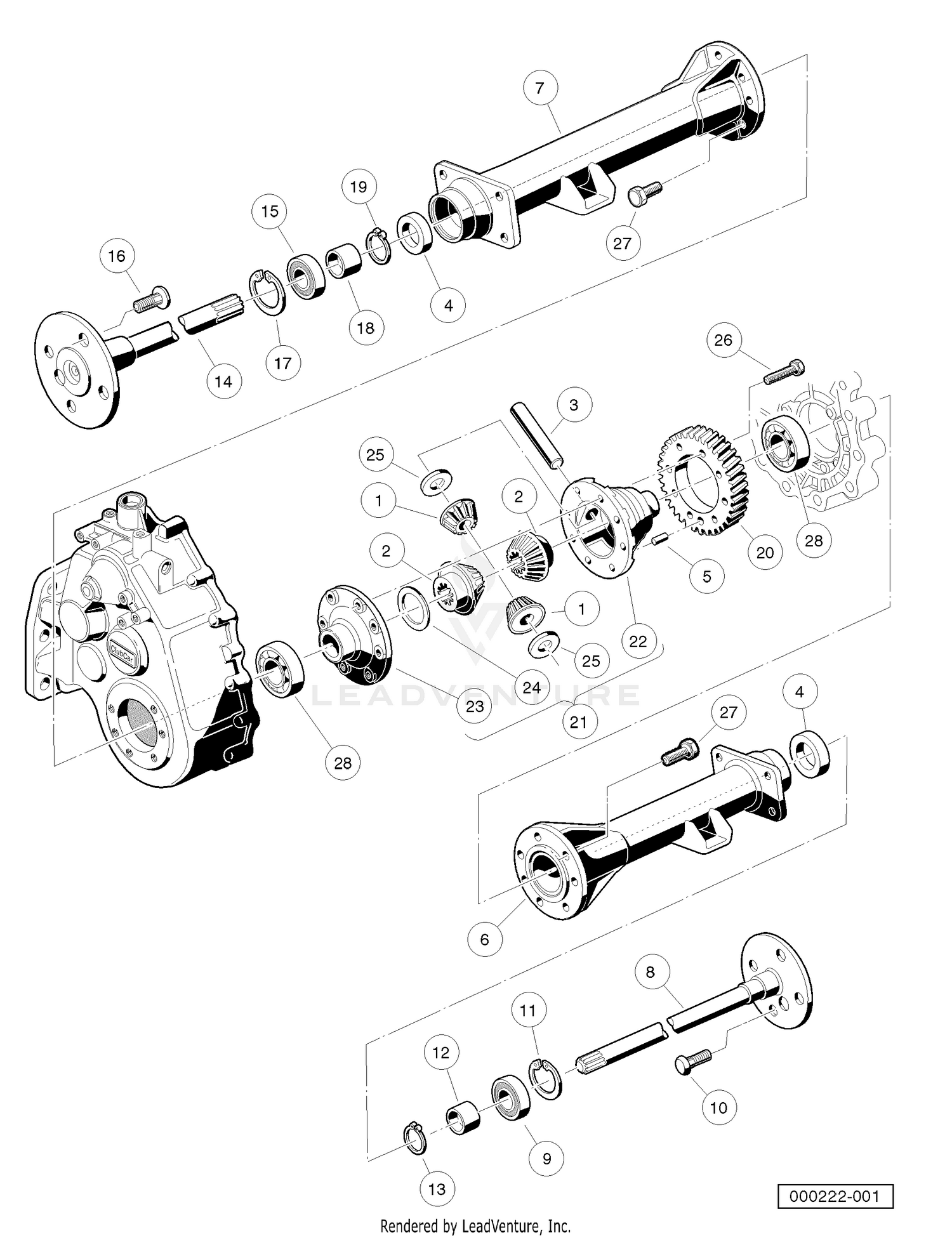

| Ref | Part Number | Description |
|---|
| 1 |
603000186 |
DIFFERENTIAL IDLER GEAR Price: $99.99 |
| 1 |
76-7250 |
DRIVE - PINION Price: $2,980.54 |
| 2 |
603003060 |
DIFFERENTIAL GEAR Price: $119.99 |
| 2 |
76-7240 |
GEAR - RING Price: $1,235.00 |
| 3 |
603000187 |
DIFFERENTIAL PIN Price: $37.99 |
| 3 |
76-7170 |
CASE, DIFF Price: $1,678.45 |
| 4 |
603003062 |
AXLE SHAFT OIL SEAL Price: $9.99 |
| 4 |
76-7200 |
SHAFT - PINION Price: $239.56 |
| 5 |
76-7230 |
WASHER - LOCK Price: $20.83 |
| 6 |
603003209 |
PIPE - COMP. Price: $599.99 |
| 6 |
98-7821 |
DISCONTINUED This part replaces 76-7260. Price: Call Us |
| 7 |
603003210 |
PIPE - COMP. Price: $599.99 |
| 7 |
76-7270 |
PIN - SPRING Price: $4.29 |
| 8 |
76-7220 |
WASHER - THRUST Price: $19.81 |
| 9 |
603000120 |
OUTER AXLE, TUBE BEARING Price: $24.99 |
| 9 |
76-7190 |
GEAR-SIDE Price: $183.47 |
| 10 |
603000189 |
LUG STUD Price: $9.99 |
| 10 |
76-7180 |
PINION-MATE Price: $141.34 |
| 11 |
603000190 |
CIRCLIP TYPE C Price: $12.99 |
| 11 |
76-7210 |
WASHER - THRUST Price: $17.76 |
| 12 |
603003070 |
BUSHING W/25 MM I.D. Price: $49.99 |
| 12 |
76-7280 |
BEARING Price: $134.09 |
| 13 |
603003151 |
RETAINING RING Price: $12.99 |
| 13 |
76-7290 |
LINER Price: $12.62 |
| 14 |
76-7490 |
SHAFT-DIFFERENTIAL Price: $494.45 |
| 15 |
119-8558 |
BEARING-NOSEAL This part replaces 76-7500. Price: $14.99 |
| 15 |
603000120 |
OUTER AXLE, TUBE BEARING Price: $24.99 |
| 16 |
603000189 |
LUG STUD Price: $9.99 |
| 16 |
76-7520 |
SHIM Price: $9.96 |
| 17 |
603000190 |
CIRCLIP TYPE C Price: $12.99 |
| 17 |
76-7510 |
DISCONTINUED Price: Call Us |
| 18 |
603003070 |
BUSHING W/25 MM I.D. Price: $49.99 |
| 18 |
76-7550 |
RING Price: $3.55 |
| 19 |
603003151 |
RETAINING RING Price: $12.99 |
| 19 |
76-7580 |
DISCONTINUED Price: Call Us |
| 20 |
603003216 |
GEAR HELICAL Price: $499.99 |
| 20 |
76-7590 |
DISCONTINUED Price: Call Us |
| 21 |
76-7600 |
BOLT - REAMER Price: $45.46 |
| 22 |
603003058 |
DIFFERENTIAL GEAR CASE L.H. Price: $399.99 |
| 22 |
76-7620 |
WASHER Price: $0.53 |
| 23 |
603003059 |
DIFFERENTIAL GEAR CASE R.H. Price: $179.99 |
| 23 |
76-7610 |
BOLT Price: $8.70 |
| 26 |
603000605 |
SCREW, M8-1.25 X 35MM HEX HEAD Price: $5.99 |
| 27 |
603000711 |
BOLT, M10 X 1.5 X 30MM Price: $4.99 |
