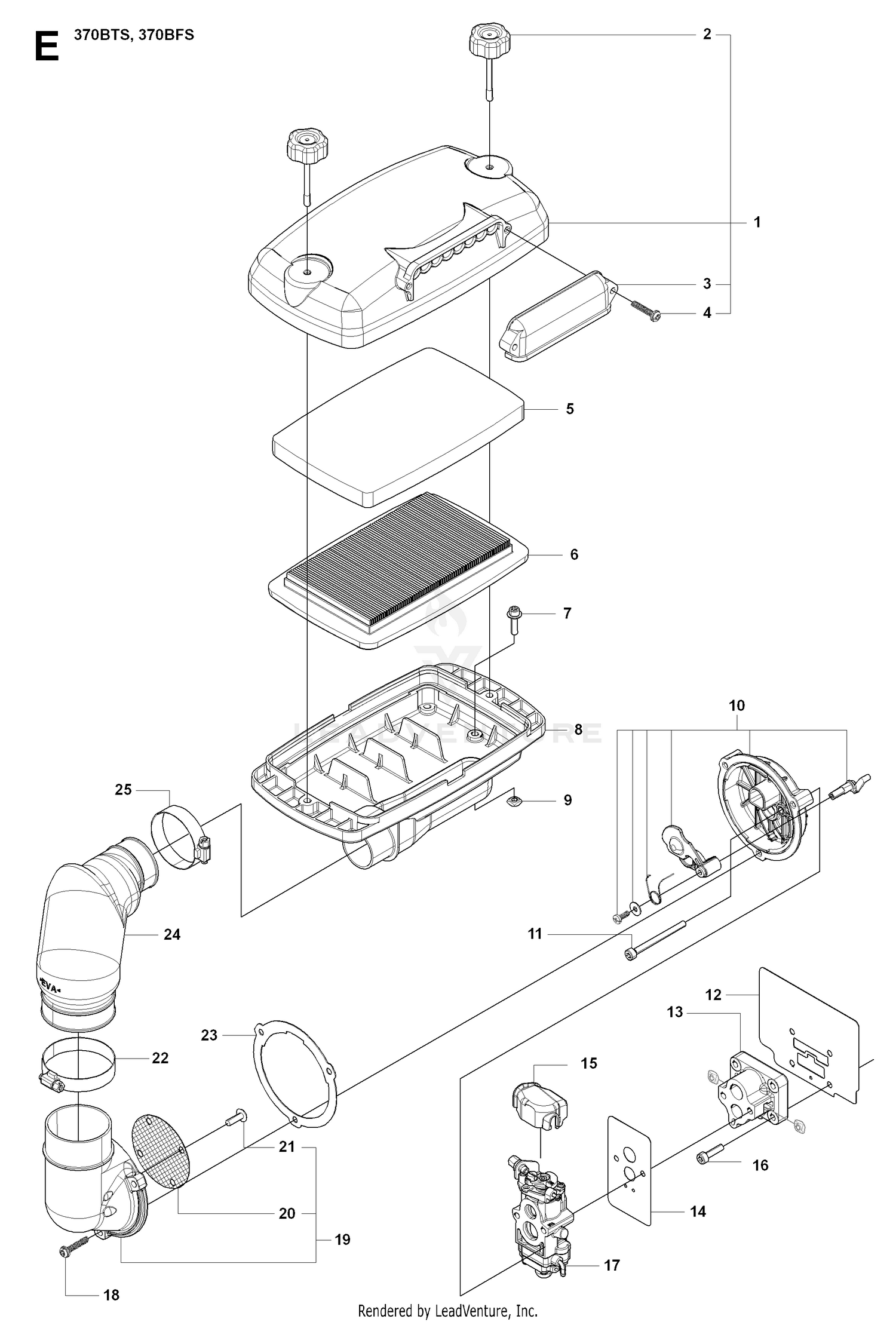

CARBURETOR & AIR FILTER
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511785901 | COVER ASSY Price: $64.99 |
| 2 | 544271401 | KNOB BOLT Price: $9.99 |
| 3 | 544271301 | COVER Price: $5.99 |
| 4 | 512848101 | SCREW Price: $2.99 |
| 5 | 544271601 | ELEMENT T401282321 This part replaces 512654101. Price: $14.99 |
| 6 | 544271501 | ELEMENT T401282311 This part replaces 512652001. Price: $27.99 |
| 7 | 512845601 | BOLT Price: $3.99 |
| 8 | 544271101 | BODY Price: $32.99 |
| 9 | 544272101 | NUT Price: $2.99 |
| 10 | 544363101 | CUP ASSY Price: $17.99 |
| 11 | 515390701 | BOLT Price: $2.99 |
| 12 | 521627501 | GASKET Price: $5.99 |
| 14 | 521627601 | GASKET Price: $3.99 |
| 15 | 506744201 | COVER Price: $4.99 |
| 16 | 521516501 | BOLT Price: $2.99 |
| 17 | 581156101 | CARB This part replaces 544363001. Price: $69.99 |
| 18 | 512848101 | SCREW Price: $2.99 |
| 19 | 521632001 | CUP COVER ASSY Price: $7.99 |
| 20 | 544263401 | RP_SCREEN This part replaces 521632501. Price: $4.99 |
| 21 | 513303601 | SCREW Price: $2.99 |
| 22 | 544271901 | CLAMP(F64) Price: $3.99 |
| 23 | 521632601 | GASKET Price: $4.99 |
| 24 | 511786001 | HOSE Price: $32.99 |
| 25 | 544271801 | CLAMP(F51) Price: $9.99 |
