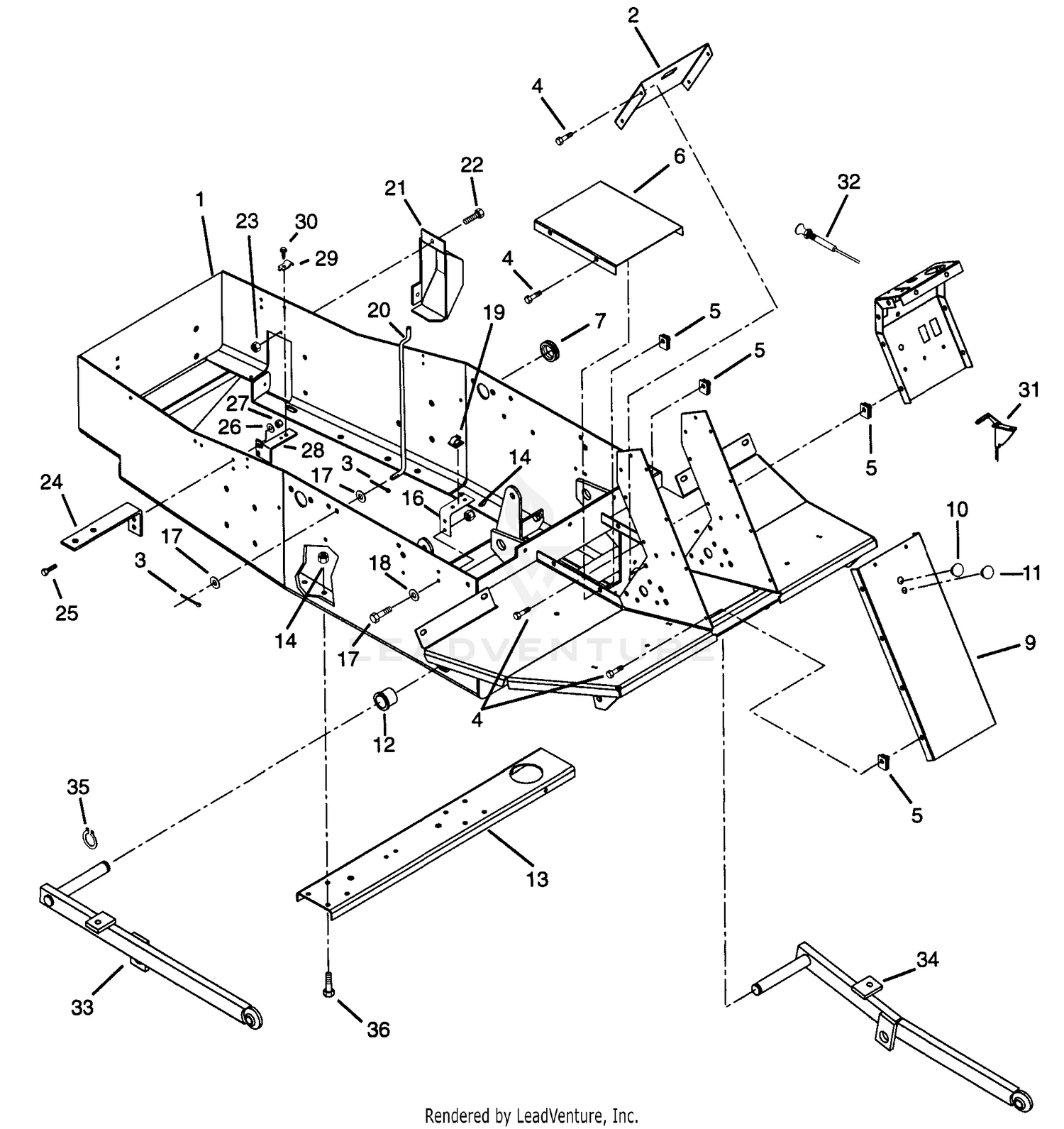

| Ref | Part Number | Description |
|---|
| 1 |
09049700 |
WLDMT, PM-350 FRAME Price: $1,260.65 |
| 2 |
09009700 |
PNL,BRAKE LOCK This part replaces 052086. Price: $19.95 |
| 4 |
06113500 |
SCR-MCH .25-20 PAN HD This part replaces 160541. Price: $1.50 |
| 5 |
07009000 |
NUT-RTNR .25-20X.56 This part replaces 032369. Price: $0.95 |
| 6 |
08966600 |
PNL,ACCESS This part replaces 045201. Price: $24.20 |
| 7 |
07536800 |
GROMMET 1.25ID X 1.5OD This part replaces 052579. Price: $12.45 |
| 8 |
09058400 |
PANEL, INSTRUMENT Price: $9.95 |
| 9 |
08978500 |
PNL,FRONT This part replaces 046394. Price: $21.20 |
| 10 |
07508500 |
HOLE PLUG This part replaces 045330. Price: $1.50 |
| 11 |
07536300 |
PLUG,HOLE This part replaces 051224. Price: $0.55 |
| 12 |
05526200 |
BSHG-FLG 1.25X1.50X1.50 NYL Price: $18.90 |
| 13 |
07536800 |
GROMMET 1.25ID X 1.5OD This part replaces 052579. Price: $12.45 |
| 14 |
06500831 |
NUT-NYL .38-16 G5 ZCC This part replaces 456004. Price: $2.95 |
| 15 |
05932600 |
BLT-HEX .38-16X.875 GR5 YWZC This part replaces 180121. Price: $2.45 |
| 16 |
09057500 |
BRKT, OIL FILTER MOUNT Price: $4.95 |
| 17 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 180122. Price: $1.45 |
| 18 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06429300. Price: $0.95 |
| 19 |
06929300 |
LEVER,CHOKE CONTROL 8 HP This part replaces 050132. Price: $59.95 |
| 20 |
09029500 |
ROD,STAY This part replaces 045214. Price: $43.60 |
| 21 |
09061500 |
ROD, SEAT LID PROP Price: $11.95 |
| 22 |
05901639 |
BLT,HEX .25-20X1.00 G5 ZCC This part replaces 180022. Price: $1.45 |
| 23 |
06500832 |
NUT-NYL .25-20 G5 ZCC This part replaces 419454. Price: $4.45 |
| 33 |
09051900 |
WLDM'T, LIFT ARM R.H. Price: $241.80 |
| 34 |
09052400 |
WLDM'T, LIFT ARM L.H. Price: $247.00 |
| 35 |
05713800 |
RG-RTNG-EXT 1.150X.093 This part replaces 021608. Price: $2.70 |
