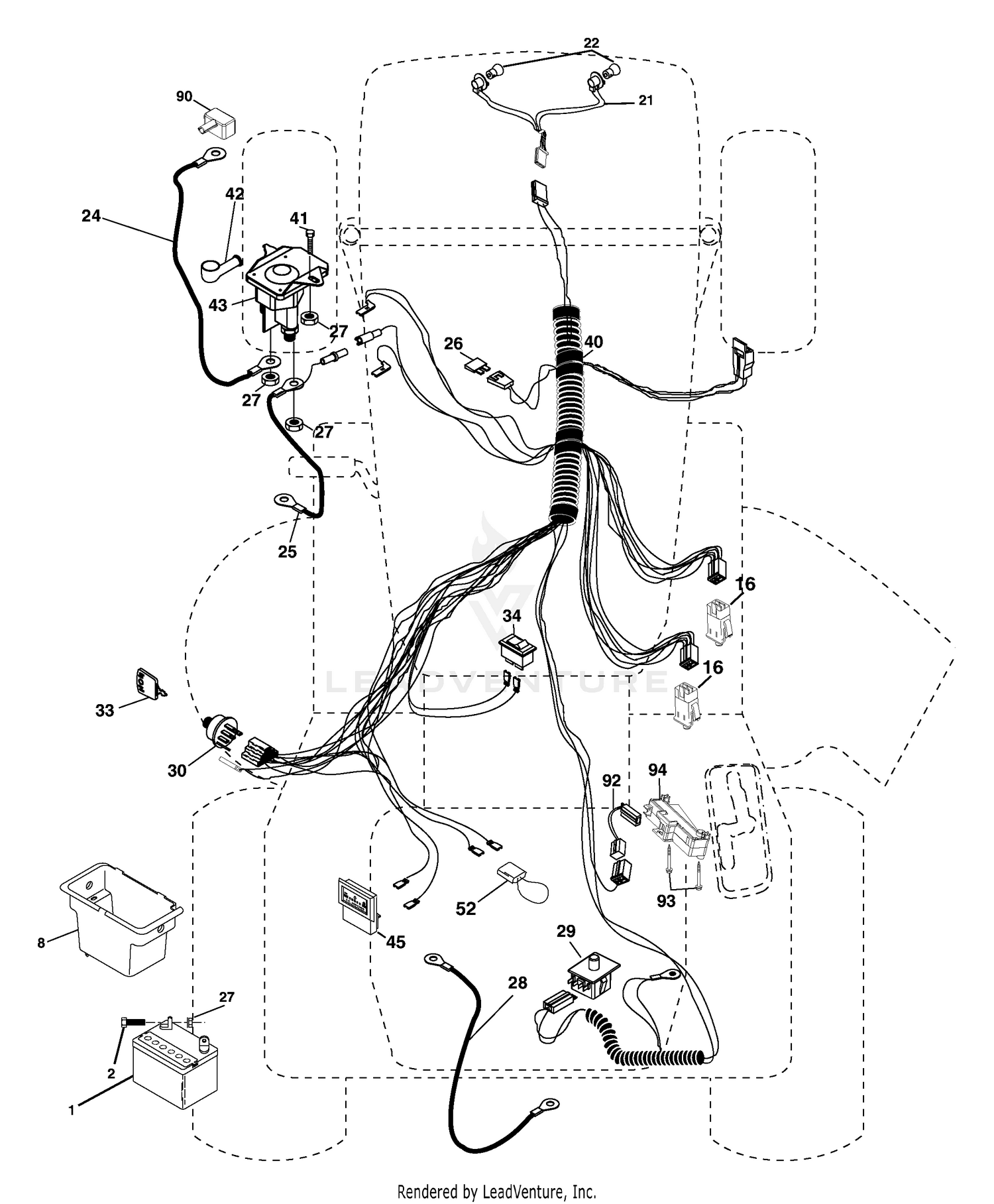

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 1 |
66-6370 |
LIFT ARM ASM Price: $430.43 |
| 2 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 Price: Call Us |
| 3 |
66-7150 |
ARM-PUSH, RH Price: $536.26 |
| 4 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 5 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 6 |
46-8840-01 |
SPRING-LIFT ARM Price: $35.71 |
| 8 |
176689 |
Box Battery Price: Call Us |
| 8 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 9 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 10 |
110-9672 |
SCREW-HH Price: $2.24 |
| 11 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 12 |
21-2860-01 |
PUSH ARM BRACKET ASM Price: $154.46 |
| 13 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 14 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 15 |
117-6998 |
NUT-HF This part replaces 110-9671. Price: $1.36 |
| 16 |
176138 |
Switch Interlock Price: Call Us |
| 16 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 17 |
21-2900-01 |
SPRING-TORSION, LH Price: $566.83 |
| 19 |
21-2890-01 |
SPRING-TORSION, RH Price: $566.83 |
| 21 |
183759 |
Harness Socket Light Price: Call Us |
| 22 |
4152J |
Bulb, Light # 1156 Price: Call Us |
| 22 |
99-1299-03 |
ROPS-2 POST Price: $2,264.78 |
| 23 |
3-1365 |
CHAIN Price: $72.97 |
| 24 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 24 |
4799J |
Cable Battery Price: Call Us |
| 25 |
146147 |
Cable Battery 6 Ga. Red w/16 wire 44" Price: Call Us |
| 25 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 26 |
175158 |
Fuse Price: Call Us |
| 26 |
3212-4 |
SCREW-HH Price: $2.73 |
| 27 |
328-12 |
SCREW-HH Price: $9.77 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 28 |
4207J |
Cable Ground 12" Blk 6 Ga. Price: Call Us |
| 29 |
192749 |
Switch Seat Price: Call Us |
| 29 |
3217-12 |
NUT-HEX Price: $3.12 |
| 30 |
193350 |
Switch Ign Price: Call Us |
| 30 |
23-1950-01 |
SUPPORT-REINFORCEMENT Price: $69.64 |
| 31 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 32 |
72-9390 |
BELT-SEAT Price: $140.77 |
| 33 |
140401 |
Key Ign Molded Generic Price: Call Us |
| 34 |
110712X |
Switch Light/Reset Price: Call Us |
| 34 |
24-9510 |
PIN Price: $77.49 |
| 35 |
5-2942 |
SHACKLE Price: $16.99 |
| 36 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 37 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 38 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 40 |
193374 |
Harness Ign Price: Call Us |
| 41 |
2412-133 |
CLAMP-R Price: $3.19 |
| 41 |
71110408 |
Bolt Fin Hex 1/4-20 unc x 1/2 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
110-9673 |
SCREW-HH Price: $2.22 |
| 43 |
192507 |
Solenoid Price: Call Us |
| 45 |
122822X |
Ammeter Price: Call Us |
| 52 |
141940 |
Protection Loop Price: Call Us |
| 90 |
180449 |
Cover Terminal Price: Call Us |
| 92 |
193465 |
Harness Pigtail Reverse Switch Price: Call Us |
| 93 |
192540 |
Screw Plastite 10-1/4 x 2.0 Price: Call Us |
