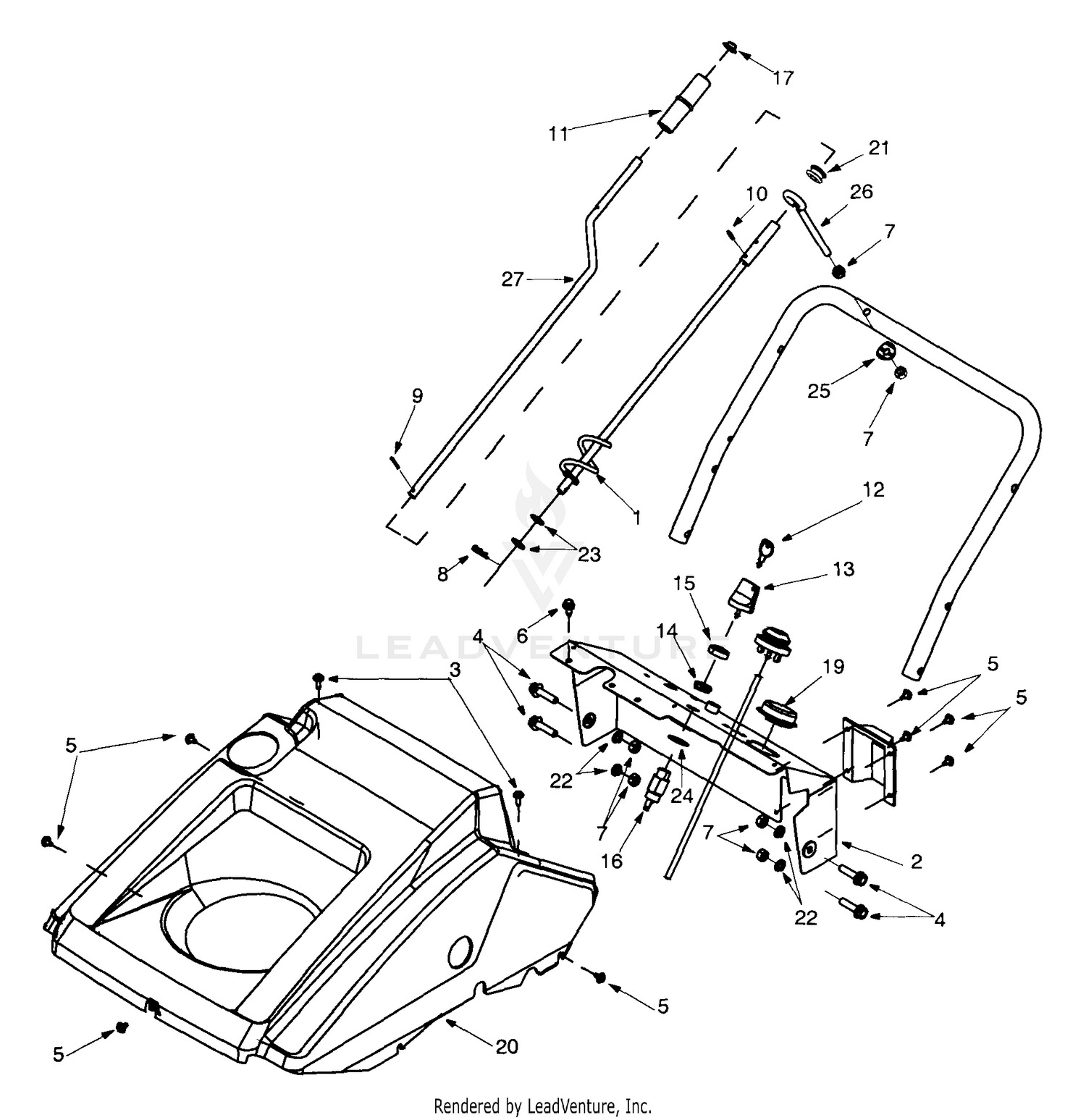

| Ref | Part Number | Description |
|---|
| 1 |
684-0126-0637 |
LOWER CHUTE CRANK (POWDER BLACK) Not Available This part replaces 684-0126. Price: |
| 2 |
684-0160 |
PANEL ASSEMBLY-DASH Not Available Price: |
| 3 |
710-04669 |
Special Screw, #10-16 x .625 This part replaces 7101003. Price: $2.98 |
| 4 |
710-1090 |
Hex Flange Screw 5/16-18 x 1.25" Price: $3.15 |
| 5 |
710-1268 |
Special Screw Price: $3.90 |
| 6 |
710-1652 |
Self-Tapping Screw 1/4-20 x .625" Price: $3.86 |
| 7 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 8 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 9 |
714-0507 |
Cotter Pin Price: $3.93 |
| 10 |
915-0138 |
Rolled Pin, 1/8 x .63 This part replaces 715-0138. Price: $4.17 |
| 11 |
720-0201A |
Knob: Chute Crank Price: $9.62 |
| 12 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 13 |
N/A |
UNKNOWN |
| 14 |
925-1346 |
IGNITION SWITCH NUT Not Available This part replaces 725-1346. Price: |
| 15 |
725-1347 |
Ignition Switch Cap Price: $4.20 |
| 16 |
925-1425 |
Ignition Switch This part replaces 725-1425. Price: $31.51 |
| 17 |
726-0100 |
Push Cap Price: $3.75 |
| 19 |
731-11338 |
Cap Price: Call Us |
| 20 |
731-1765 |
SHROUD - BLACK Not Available Price: |
| 21 |
735-0234 |
Rubber Grommet Price: $4.51 |
| 22 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 23 |
736-0185 |
Flat Washer: .375 x .738 x .063 Price: $3.43 |
| 24 |
736-0225 |
Int. Lock Washer: 5/8 x 1.058 x .046 Price: $3.90 |
| 25 |
736-0451 |
Saddle Washer 320 ID x .93 OD Price: $3.75 |
| 26 |
747-0697 |
EYEBOLT Not Available Price: |
| 27 |
747-0737-0637 |
Upper Chute Crank This part replaces 747-0737. Price: $39.72 |
