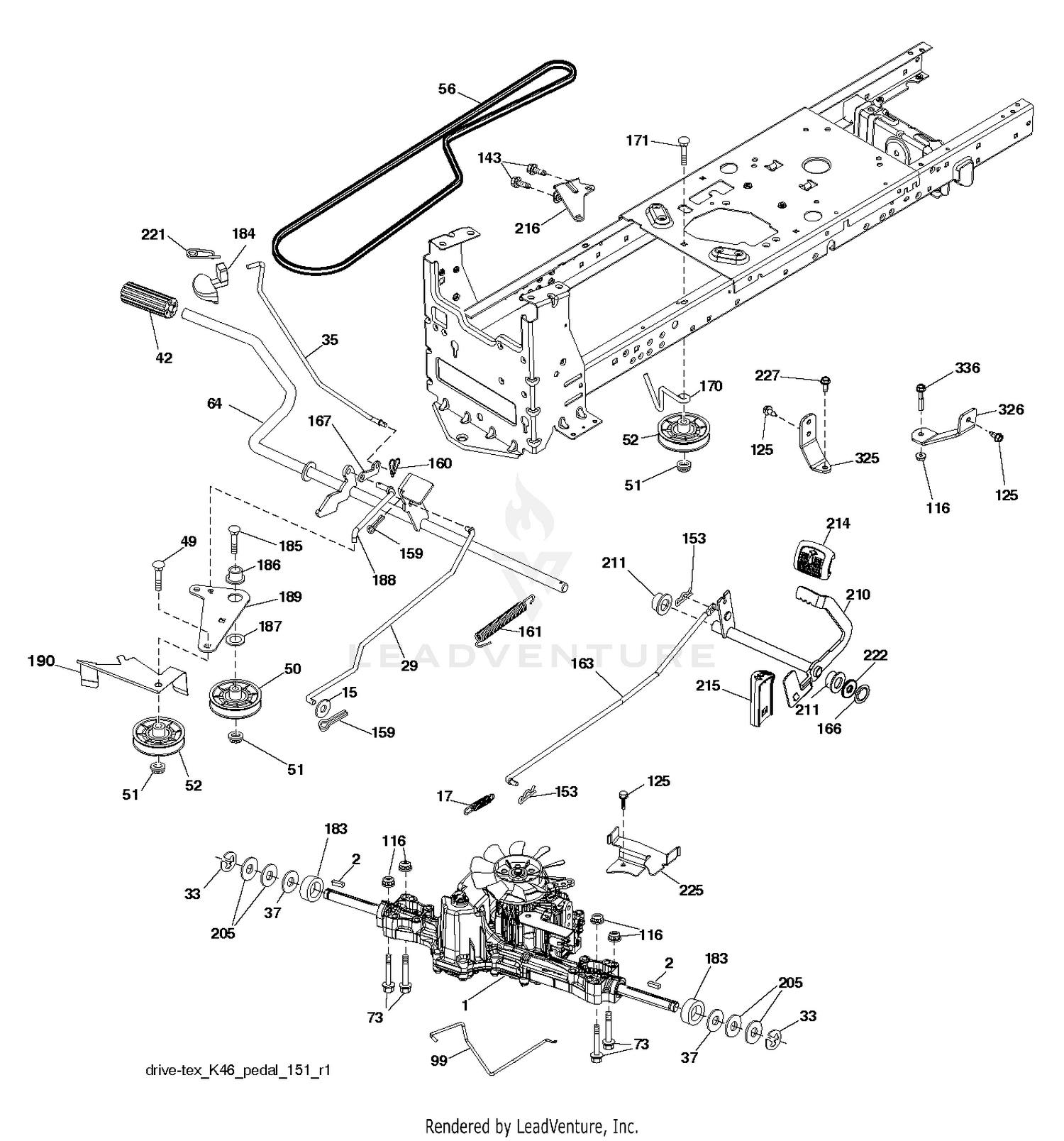

| Ref | Part Number | Description |
|---|
| 1 |
119-9303 |
CROSSMEMBER Price: $298.17 |
| 2 |
119-4005 |
LH SIDEPLATE ASM Price: $110.40 |
| 2 |
532123583 |
SQUARE KEY Price: $2.99 |
| 3 |
119-4007 |
RH SIDEPLATE ASM Price: $110.40 |
| 4 |
115-7042 |
BOLT-SHOULDER, FLANGE Price: $2.40 |
| 5 |
119-4041 |
NUT-HF Price: $0.48 |
| 6 |
115-3303-03 |
BAR-CUTOFF Price: $11.49 |
| 7 |
119-4012 |
SCREW-HWHTF Price: $0.61 |
| 8 |
119-4095 |
GRASS SHIELD ASM Price: $49.61 |
| 9 |
106-2619 |
STRIP-SEAL Price: $4.84 |
| 10 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 11 |
106-5363 |
SHAFT-ADJUSTER Price: $41.05 |
| 12 |
119-4164 |
WASHER-WAVE Price: $2.73 |
| 13 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 14 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 15 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 15 |
819131316 |
WASHER Price: $2.99 |
| 16 |
119-4156 |
SPRING-COMPRESSION Price: $0.91 |
| 17 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $3.99 |
| 18 |
99-2097 |
DETENT Price: $12.71 |
| 19 |
119-4067 |
SCREW-HH Price: $0.81 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 33 |
812000001 |
E-RING LT Price: $2.99 |
| 35 |
583864501 |
ROD .BRAKE. PARKING. GT. HUSQ. Price: $4.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 42 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 49 |
872110614 |
BOLT Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $9.99 |
| 51 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $9.99 |
| 56 |
532130969 |
V-BELT.MOWER.92.40.42/K46 Price: $22.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $32.99 |
| 73 |
874490540 |
BOLT Price: $2.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $6.99 |
| 116 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 143 |
817490508 |
SCREW LT Price: $3.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 159 |
876020412 |
COTTER PIN Price: $3.99 |
| 160 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $7.99 |
| 163 |
532401034 |
ROD.CONTROL.PEDAL.K46 This part replaces 532448275. Price: $27.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $2.99 |
| 167 |
532405257 |
LATCH.BRAKE.SPRING Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $3.99 |
| 171 |
872110616 |
BOLT Price: $3.99 |
| 183 |
532137057 |
SPACER AXLE Price: $3.99 |
| 184 |
587653701 |
HANDLE.PARKING.BRAKE.H (BLK) Price: $7.99 |
| 185 |
872110622 |
BOLT Price: $0.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $3.99 |
| 187 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $1.99 |
| 189 |
532194317 |
BELLCRANK.GROUND.DRIVE.TEX. Price: $3.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $1.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $19.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $2.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $4.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $3.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $3.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $2.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $2.99 |
| 225 |
532403319 |
KEEPER.BELT.TRANSAXLE.K46 Price: $14.99 |
| 227 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 325 |
585668502 |
BRACKET.TRQ.STP.46.20".TIRE.LH Price: $1.99 |
| 326 |
585670802 |
BRCKT.PNT.TRQ.STP.46.20TIRE.RH Price: $1.99 |
