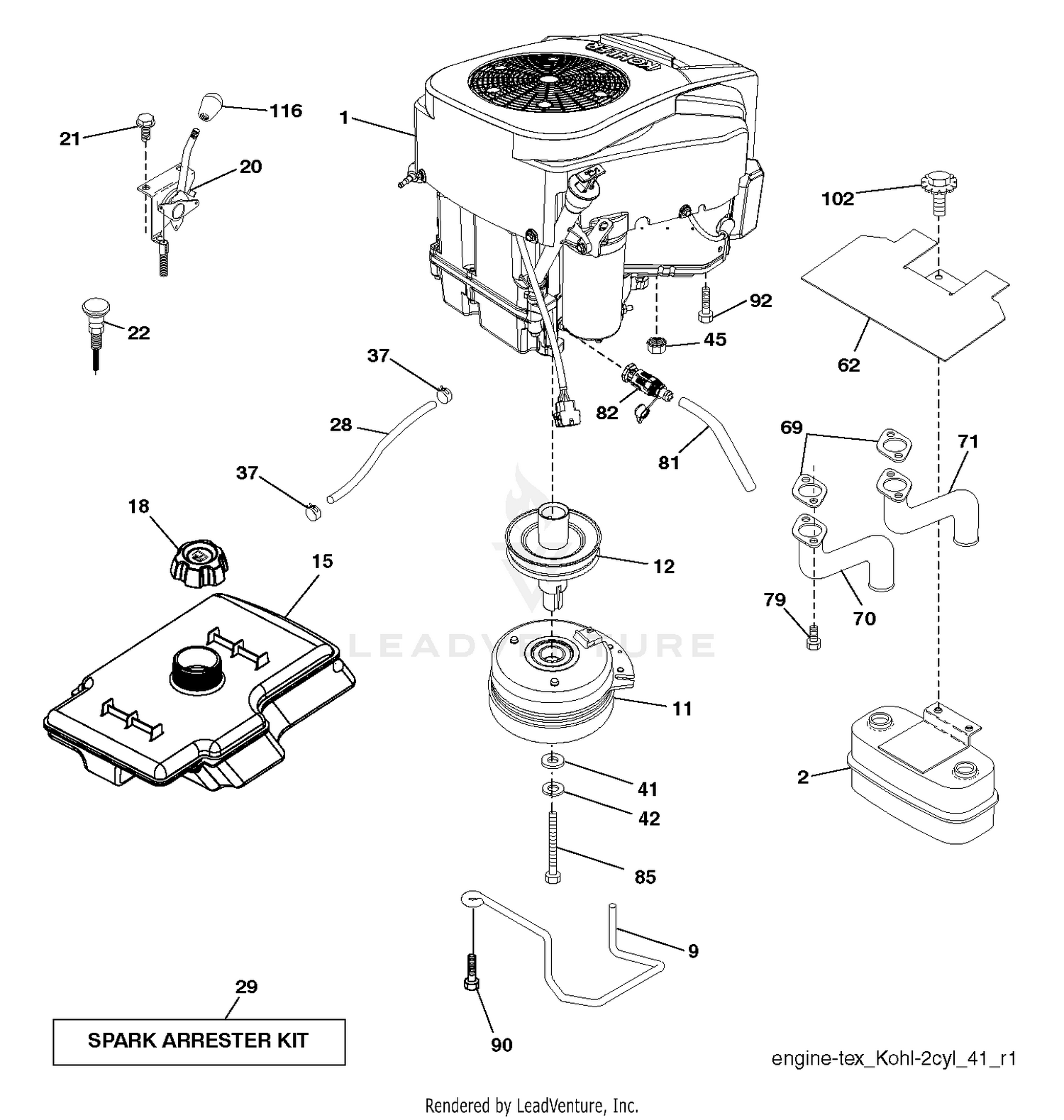

| Ref | Part Number | Description |
|---|
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 9 |
596501502 |
Keepers This part replaces 584908001. Price: $9.99 |
| 11 |
587255001 |
CLUTCH. 5.0 PD. 2.5 OFFSET Price: $229.99 |
| 12 |
586899601 |
PULLEY.EXTENDED.SHAFT.GROUND Price: $29.99 |
| 15 |
583462301 |
TANK ASM.REAR.2.5GA.DAPCO.E10 This part replaces 532418179. Price: $99.99 |
| 18 |
584248701 |
CAP.ASSY.FUEL.3".N-EPA.BLK.428 Price: $14.99 |
| 20 |
532426184 |
CONTROL.THROTTLE.PRO.KOHLER Price: $34.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 Price: $19.99 |
| 71 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 Price: $17.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606701 |
BOLT.HEX.7/16-20X5.GR5.GREEN This part replaces 871170780. Price: $7.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 116 |
532132624 |
AXLE PIN Price: $2.42 |
