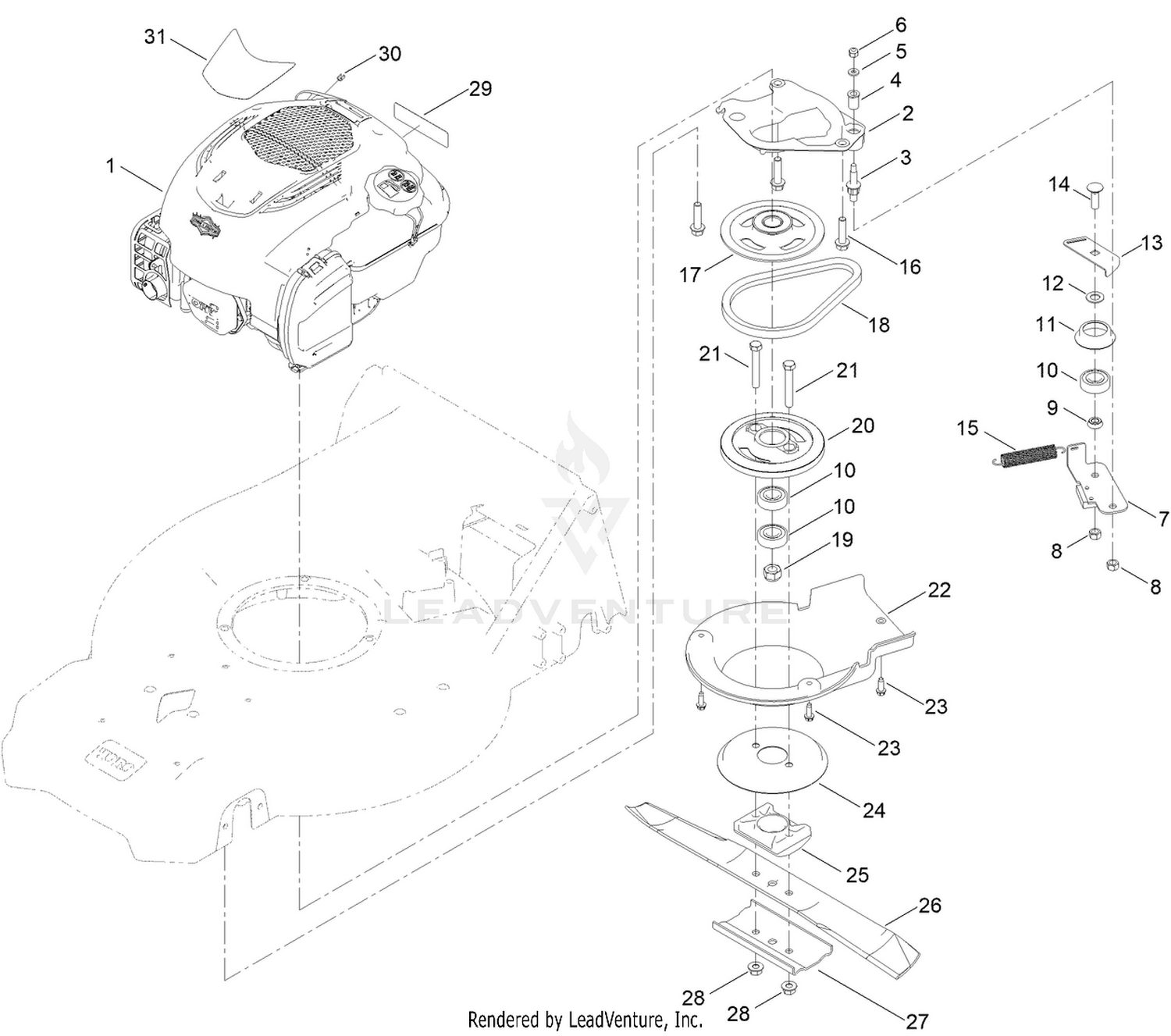

Engine and Blade Assembly
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 133-8189 | PLATE-ANCHOR Price: $23.99 |
| 3 | 107-0759 | BOLT-SHOULDER Price: $9.99 |
| 4 | 107-0797 | BUSHING Price: $4.79 |
| 5 | 3256-16 | WASHER-FLAT Price: $0.39 |
| 6 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 7 | 125-1063 | PLATE-BRAKE Price: $21.99 |
| 8 | 603773 | LOCKNUT Price: $2.09 |
| 9 | 107-0758 | SPACER-BEARING Price: $2.89 |
| 10 | 38-7820 | BEARING-BALL Price: $13.99 |
| 11 | 138-3217 | RETAINER-BELT Price: $2.99 |
| 12 | 605256 | SPACER Price: $1.79 |
| 13 | 138-3222 | PLATE-GUIDE Price: $3.39 |
| 14 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 108-3792 | SPRING-TENSION, BRAKE Price: $10.99 |
| 16 | 32144-102 | SCREW-HWH Price: $3.19 |
| 17 | 117-5970 | PULLEY Price: $34.99 |
| 18 | 110-1790 | BELT Price: $28.99 |
| 19 | 108-9342 | NUT-HEX Price: $3.49 |
| 20 | 126-8108 | DRUM Price: $52.99 |
| 21 | 3211-42 | SCREW-HH Price: $4.87 |
| 22 | 125-1006 | COVER Price: $16.99 |
| 23 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 24 | 138-3225 | DISK Price: $11.99 |
| 25 | 107-7487 | SUPPORT-BLADE Price: $21.99 |
| 26 | 133-8183-03 | BLADE-21IN, RECYCLING Price: $20.99 |
| 27 | 108-3766-03 | SUPPORT-BLADE Price: $9.99 |
| 28 | 127-6852 | NUT-FLANGE, LOCK Price: $1.79 |
| 29 | 133-8062 | DECAL-ARRESTOR, SPARK Price: $2.39 |
| 30 | 2210-316 | STOP-ROPE Price: $6.49 |
