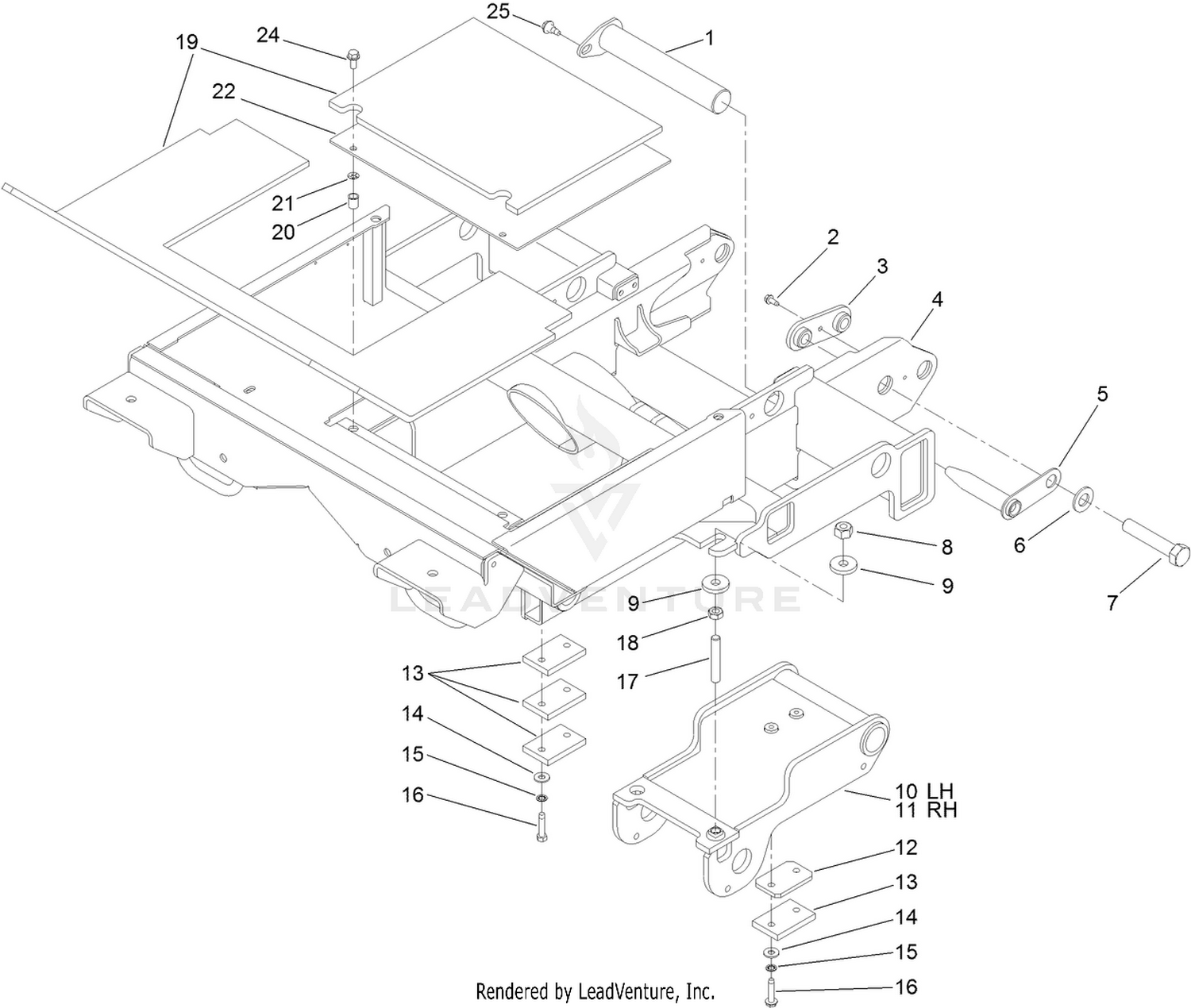

Frame and Pivot Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-9765 | PIN-PIVOT, UPPER Price: $114.08 |
| 2 | 32144-10 | SCREW-HWH Price: $4.29 |
| 3 | 110-9785 | PLATE-RETAINER V Price: $162.24 |
| 4 | 110-9767-03 | FRAME Price: $4,553.58 |
| 5 | 108-9870 | PIN-COUPLER Price: $125.84 |
| 6 | 92-5836 | WASHER Price: $5.34 |
| 7 | 328-7 | SCREW-HH Price: $4.00 |
| 8 | 3296-25 | NUT-LOCK, NI Price: $1.34 |
| 9 | 30-8770 | WASHER Price: $3.43 |
| 10 | 108-5195-03 | PIVOT-LH Price: $823.73 |
| 11 | 110-9793-03 | PIVOT-RH Price: $734.01 |
| 12 | 110-5454 | PLATE-SPACER Price: $10.72 |
| 13 | 69-9290 | PAD-BUMPER Price: $9.52 |
| 14 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 15 | 3254-2 | WASHER-LOCK, INTERNAL Price: $0.27 |
| 16 | 32144-57 | SCREW Price: $1.04 |
| 17 | 105-1088 | STUD Price: $6.88 |
| 18 | 3218-5 | NUT-JAM Price: $0.27 |
| 19 | 138-8225 | FOAM-FLOOR, POLARTRAC Price: $155.13 |
| 20 | 32148-7 | NUT-CLINCH Price: $0.98 |
| 21 | 117-2749 | NUT-PUSH Price: $0.25 |
| 22 | 108-9866-03 | PLATE-COVER Price: $75.24 |
| 24 | 3234-5 | SCREW-HHF Price: $0.42 |
