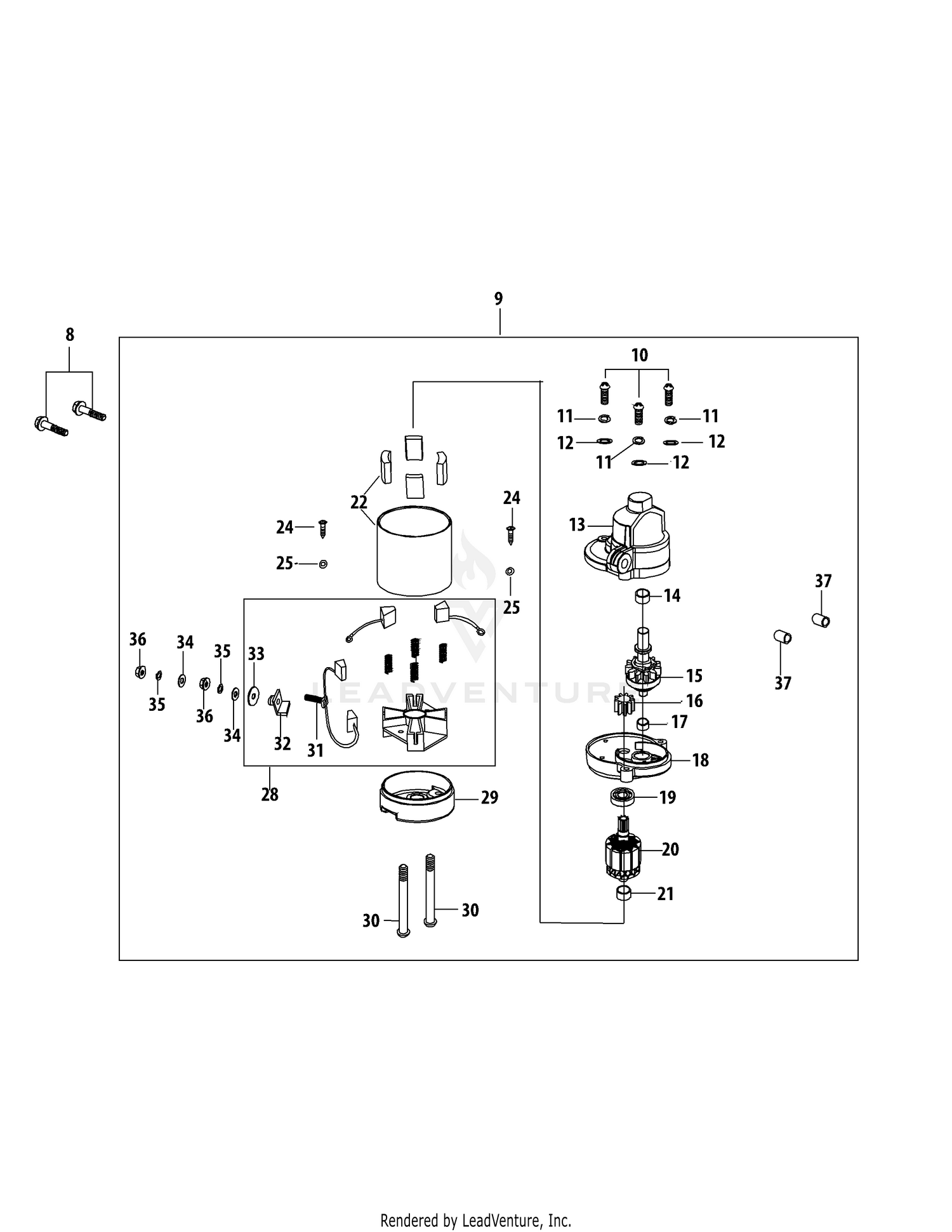

4P90JUD Starter Assembly — Parts Catalog

Ref	Part Number	Description
8	710-05306	Bolt M8x40 Price: $3.56
9	751P12207A	STARTER ASSEMBLY This part replaces 951-12207. Price: $197.22
10	710-05307	Screw M5x25 Price: $3.32
11	736-04554	Lock Washer 5 Price: $3.32
12	736-04556	Plain Washer 6 Price: $3.56
13	951-12208	Electrical Starter Front Cover Price: $21.87
14	951-12211	Bearing Price: $3.56
15	951-12210	Pinion/Clutch Assembly Price: $79.54
16	951-12312	Gear Price: $9.58
17	951-12209	Bearing Price: $3.56
18	951-12212	Pinion Cover Price: $34.17
19	951-12214	Bearing 6001Zz Price: $12.58
20	951-12215	Starter Armature Price: $114.72
21	951-12216	BEARING Not Available Price:
22	951-12528	Starter Housing Assembly Price: $88.67
24	951-12217	Screw Price: $3.24
25	736-04554	Lock Washer Price: $3.32
28	951-12529	Brush Assembly Price: $55.87
29	951-12219	STARTER END COVER Not Available Price:
30	710-05308	Bolt M6x100 Price: $3.56
31	710-05309	BOLT M6 x 30 Not Available Price:
32	951-12324	Waterproof Washer Price: $3.32
33	736-04555	INSULATION WASHER Not Available Price:
34	736-04556	Plain Washer 6 Price: $3.56
35	736-04477	Lock Washer 6 Price: $5.30
36	712-05015	Nut M6 Price: $5.78
