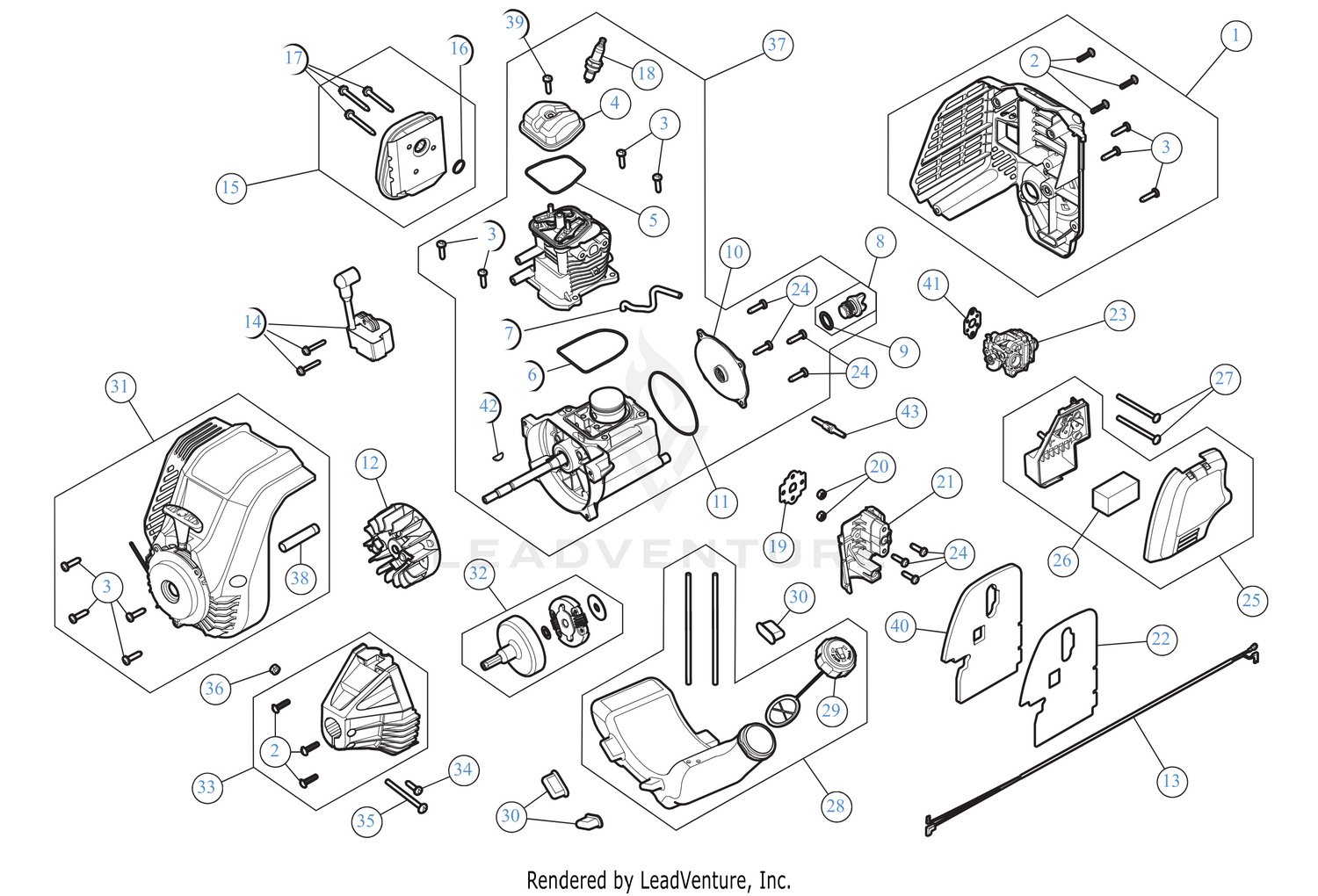

Engine Assembly
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 710-04194 | SCREW 8-16 x 3/4 Price: $3.66 |
| 3 | 710-04604A | SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 4 | 753-05901 | ROCKER COVER Price: $7.13 |
| 5 | 753-05902 | O-RING Price: $4.58 |
| 6 | 753-05910 | O-RING CYL AC5 Price: $2.65 |
| 7 | 753-10205 | BREATHER HOSE Price: $3.60 |
| 9 | 791-182290 | RING, OIL PLUG (AC Price: $4.29 |
| 10 | 753-06259 | CRANKCASE COVER Price: $7.14 |
| 11 | 753-05238 | O-RING CRNKCSE CVR Price: $9.20 |
| 12 | 753-06221 | FLYWHEEL ASSEMBLY AC3.1 Price: $18.82 |
| 13 | 753-05264 | LEAD WIRES Price: $14.70 |
| 14 | 753-11255 | MODULE ASSEMBLY Price: $37.77 |
| 16 | 753-05244 | GASKET/MUFFLER Price: $5.11 |
| 17 | 710-04809 | SCREW M5 x 44MM Price: $2.83 |
| 18 | 794-00082 | SPARK PLUG 4 CYCL Price: $6.35 |
| 19 | 753-05247 | GASKET/INSULATOR Not Available Price: |
| 20 | 712-04099 | NUT 10-32 Price: $5.94 |
| 21 | 841-020801S | CARB INSULATOR Price: $21.18 |
| 22 | 753-06948 | GASKET Price: $4.10 |
| 23 | 753-11331 | CARBURETOR This part replaces 751-22423. Price: $27.94 |
| 24 | 9052-1 | SCREW, M5 X18 Price: $3.78 |
| 26 | 753-05254 | AIR FILTER Price: $4.88 |
| 27 | 710-04517 | SCREW 10-32X2.5 Price: $4.71 |
| 29 | 753-1229 | FUEL CAP ASSEMBLY 43MM-6 W/O HOLE Price: $19.90 |
| 30 | 753-05259 | FUEL TANK PADS Price: $5.72 |
| 32 | 753-06281 | CLUTCH ASSEMBLY Price: $19.43 |
| 34 | 791-182519 | SCREW, 8-32 x .312 P Price: $4.37 |
| 35 | 9689A | SCREW Price: $9.81 |
| 36 | 712-0161 | HEX NUT Price: $4.02 |
| 38 | 750-04434 | SPACER :2.165" Price: $5.91 |
| 39 | 791-181025 | SCR, VALVE COVER Price: $2.44 |
| 40 | 753-06949 | HEAT SHIELD Price: $5.15 |
| 41 | 791-181709 | CARBURETOR GASKET Price: $4.30 |
| 42 | 914-04016 | WOODRUFF KEY #403-.125 x .375 Price: $3.82 |
