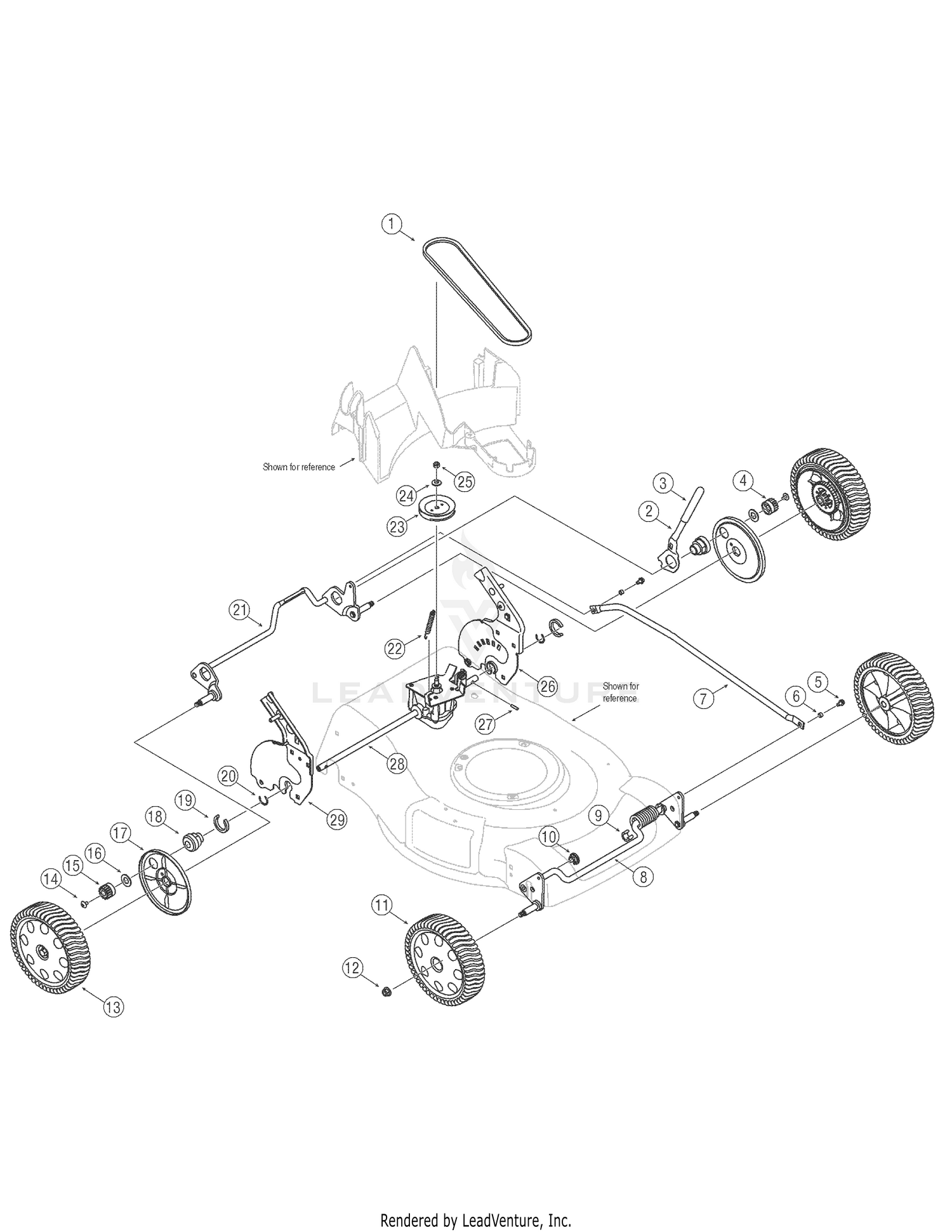

| Ref | Part Number | Description |
|---|
| 1 |
954-04093 |
V-Belt Not Available This part replaces 754-04093. Price: |
| 2 |
732-04338C |
HEIGHT CONTROL LEVER Not Available This part replaces 732-04338. Price: |
| 3 |
720-0230 |
Foam Grip Price: $6.49 |
| 4 |
917-04184C |
Spur Gear - LH This part replaces 717-04184A. Price: $8.32 |
| 5 |
710-0599 |
TT Screw, 1/4-20 x 0.50 Price: $3.86 |
| 6 |
738-04278 |
SHOULDER SCREW 1/4-20X.50 19PSH" This part replaces 750-04305A. Price: $5.99 |
| 7 |
749-04267B-0637 |
CROSS BRACKET Not Available This part replaces 749-04267. Price: |
| 8 |
687-02204B |
FRONT BRACKET ASSEMBLY Not Available This part replaces 687-02204. Price: |
| 9 |
731-05470 |
Clip Spacer Price: $4.36 |
| 10 |
741-04136B |
Split Hex Flange Bearing Price: $4.02 |
| 11 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 12 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 13 |
753-08092 |
Fr. Wheel 8 Yellow This part replaces 634-04207C. Price: $39.21 |
| 14 |
710-04531 |
Screw, 1/4-20 x .39 Price: $4.42 |
| 15 |
917-04192C |
Spur Gear - RH This part replaces 717-04192A. Price: $6.49 |
| 16 |
736-3084 |
Flat Washer Price: $4.39 |
| 17 |
782-7551A |
Wheel Dust Cover Price: $4.80 |
| 18 |
748-04073C |
Transmission Bearing Support Price: $24.88 |
| 19 |
750-04317 |
Clip Spacer Not Available Price: |
| 20 |
716-0198 |
Retaining Ring .875 Price: $4.04 |
| 21 |
753-05865 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 687-02199. Price: |
| 22 |
932-0320 |
Extension Spring, .38 x 3.25 This part replaces 732-0320. Price: $8.98 |
| 23 |
956-04151 |
PULLEY 3.36 OD Not Available This part replaces 756-04151A. Price: |
| 24 |
736-0105 |
Bell Washer, .375 x .870 x .063 Price: $3.96 |
| 25 |
712-0411 |
Hex Lock Nut, 5/16-24 Price: $3.71 |
| 26 |
753-05861 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 687-02205. Price: |
| 27 |
915-0221 |
Dowel Pin This part replaces 715-0221. Price: $3.93 |
