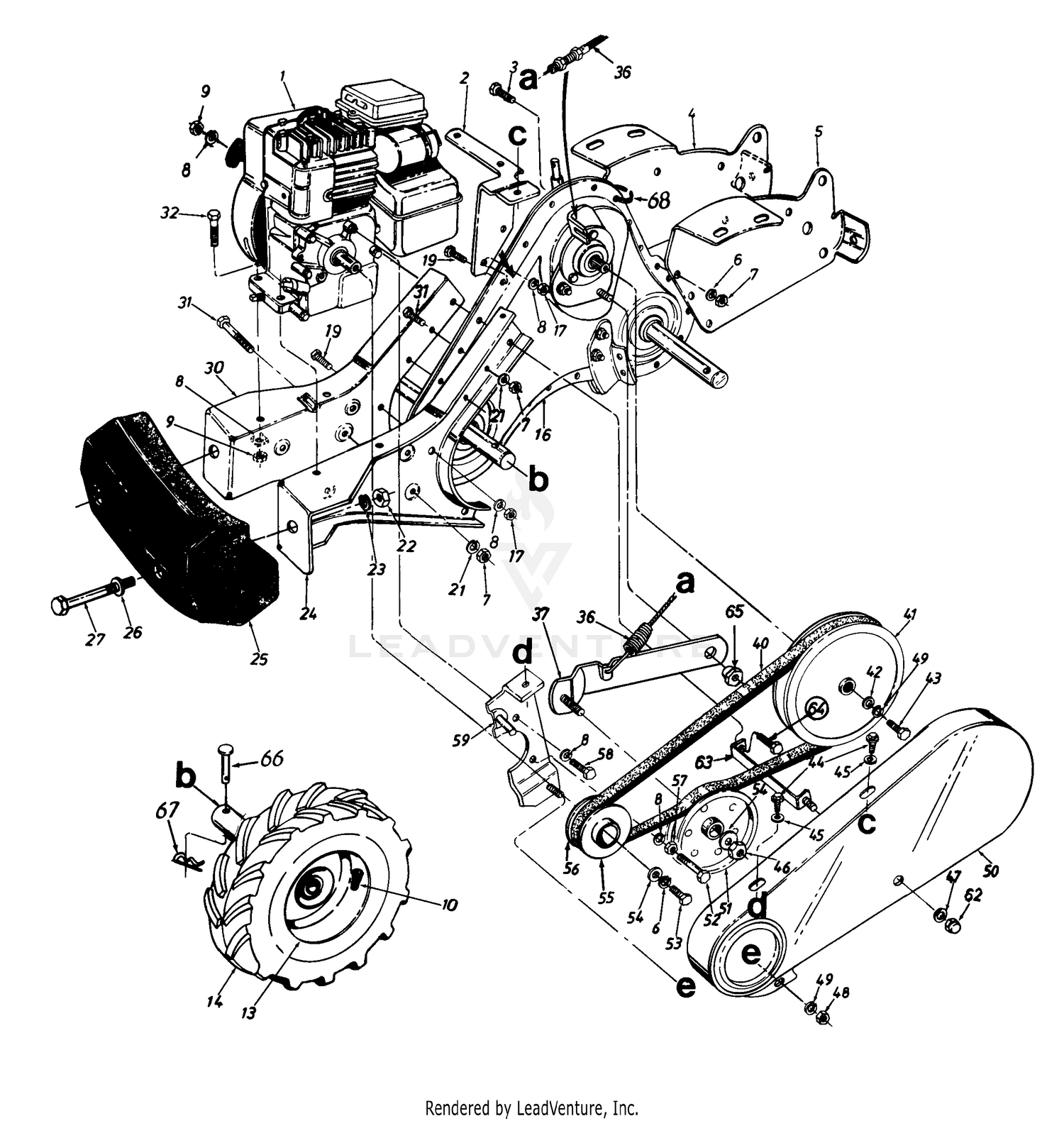

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Engine |
| 2 |
784-0199A |
BELT COVER MOUNTING BRKT Not Available Price: |
| 4 |
784-0178 |
MOUNTING BRACKET(RH) Not Available Price: |
| 5 |
784-0177 |
MOUNTING BRACKET(LH) Not Available Price: |
| 10 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 13 |
634-0112 |
RIM ASSEMBLY (6.0 x 3.25) Not Available Price: |
| 14 |
634-0111 |
WHEEL ASSEMBLY (14 x 4.5) (LH) Not Available Price: |
| 16 |
686-0058 |
GEAR CASE ASS'Y. COMP. Not Available Price: |
| 21 |
736-0217 |
L-Wash. 3/8" I.D.- H.D. Price: $3.86 |
| 24 |
784-0155 |
ENGINE MOUNTING RAIL (RH) Not Available Price: |
| 25 |
723P0381 |
COUNTERWEIGHT This part replaces 723-0381. Price: $123.63 |
| 26 |
736-0326 |
Fl-Wash. .510" I.D. x 1.0" Price: $3.89 |
| 30 |
784-0154 |
RAIL-ENGIN Not Available Price: |
| 36 |
946-0908 |
Clutch Control Cable 46" Lg. This part replaces 746-0908. Price: $65.89 |
| 37 |
686-0026 |
IDLER BRACKET ASSEMBLY Not Available Price: |
| 40 |
954-0267 |
V - Belt This part replaces 754-0267. Price: $49.01 |
| 41 |
756-0634 |
Fl-Pulley 8" O.D. Price: $80.32 |
| 42 |
736-0176 |
Fl-Wash. 1/4" I.D. x .93" O.D. Price: $3.95 |
| 43 |
710-0412 |
Hex Bolt 1/4-28 x .75" Lg. Price: $4.95 |
| 44 |
710-0599 |
Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 45 |
736-0463 |
Fl-Wash. .281" I.D. x .625" Price: $3.91 |
| 46 |
712-0262 |
Hex Cent. L-Nut 3/8-24 Thd. Price: $3.90 |
| 47 |
736-3020 |
Fl-Wash. .266" I.D. x .625" O.D. Price: $5.94 |
| 50 |
784-0158B |
BELT COVER This part replaces 784-0158. Price: $67.55 |
| 51 |
756-0405 |
Fl-Idler w/Flanges 3.75" O.D. Price: $66.84 |
| 54 |
736-0258 |
Fl-Wash. 3/8" I.D. x 1.00" Price: $3.93 |
| 55 |
756-0972 |
Outer Engine Pulley Half Price: $14.17 |
| 56 |
756-0971 |
Inner Engine Pulley Half Price: $12.60 |
| 59 |
784-0197 |
BELT KEEPER ASS'Y. Not Available Price: |
| 62 |
712-0392 |
Hex Cap Nut 1/4-28 Thd. Price: $6.01 |
| 63 |
686-0027 |
BELT COVER BRACKET ASS'Y. Not Available Price: |
| 64 |
710-0376 |
Hex Bolt 5/16-18 x 1" Lg. (Gr. 5) Price: $3.66 |
| 65 |
738-0876A |
SHOULDER NUT This part replaces 738-0876. Price: $9.54 |
| 66 |
711-1017 |
Clevis Pin Price: $6.57 |
| 67 |
714-0104 |
Hairpin Clip Price: $3.90 |
