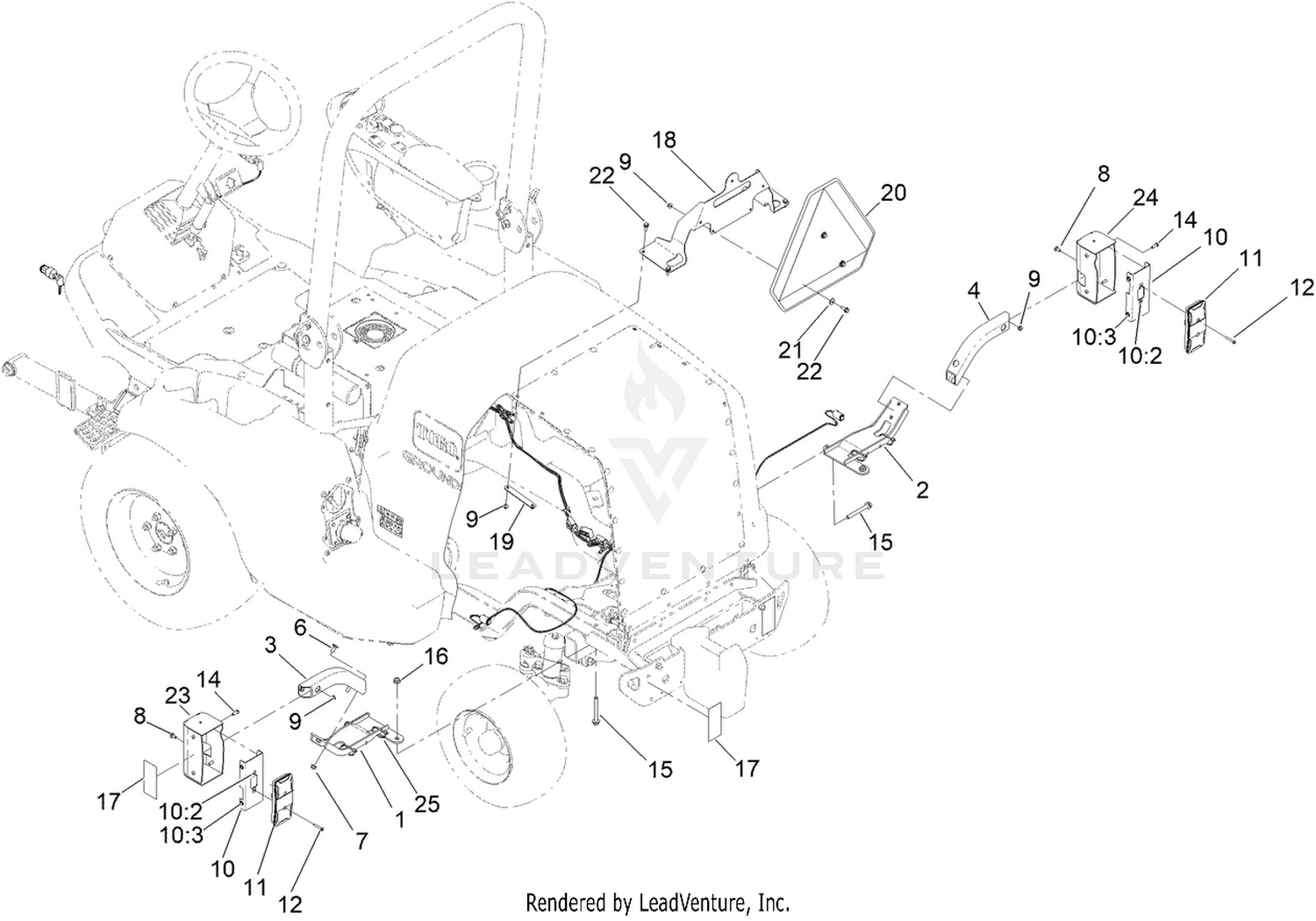

Rear Light Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-1483-03 | MOUNT-LH, WA Price: $99.99 |
| 2 | 140-1484-03 | MOUNT-RH, WA Price: $99.99 |
| 3 | 140-1620-03 | MOUNT-LH, SHORT Price: $51.77 |
| 4 | 140-1621-03 | MOUNT-RH, SHORT Price: $51.77 |
| 6 | 3230-23 | SCREW-CARR Price: $0.89 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 3229-11 | SCREW-CARR Price: $0.99 |
| 9 | 104-7201 | NUT-HF Price: $0.69 |
| 10 | 140-6835 | INNER MOUNT ASM Price: $48.12 |
| 11 | 139-2071 | LIGHT-REAR TAIL/STOP/TURN Price: $49.03 |
| 12 | 3250-23 | SCREW-PPH Price: $2.49 |
| 14 | 3274-69 | SCREW-HSBH Price: $0.43 |
| 15 | 3234-41 | SCREW-HHF Price: $0.31 |
| 16 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 17 | 108-8014 | TAPE-REFLECTIVE (RED) Price: $7.25 |
| 18 | 139-2338-03 | MOUNT-MARKER Price: $88.19 |
| 19 | 139-2340 | MOUNT-BACK Price: $4.29 |
| 20 | 92-7760 | EMBLEM-VEHICLE, SLOW MOVING Price: $41.14 |
| 21 | 3256-78 | WASHER-FLAT Price: $1.21 |
| 22 | 3234-4 | SCREW-HHF Price: $0.50 |
| 23 | 140-6828-03 | HOUSING-LIGHT, LH Price: $36.20 |
| 24 | 140-6829-03 | HOUSING-LIGHT, RH Price: $36.20 |
