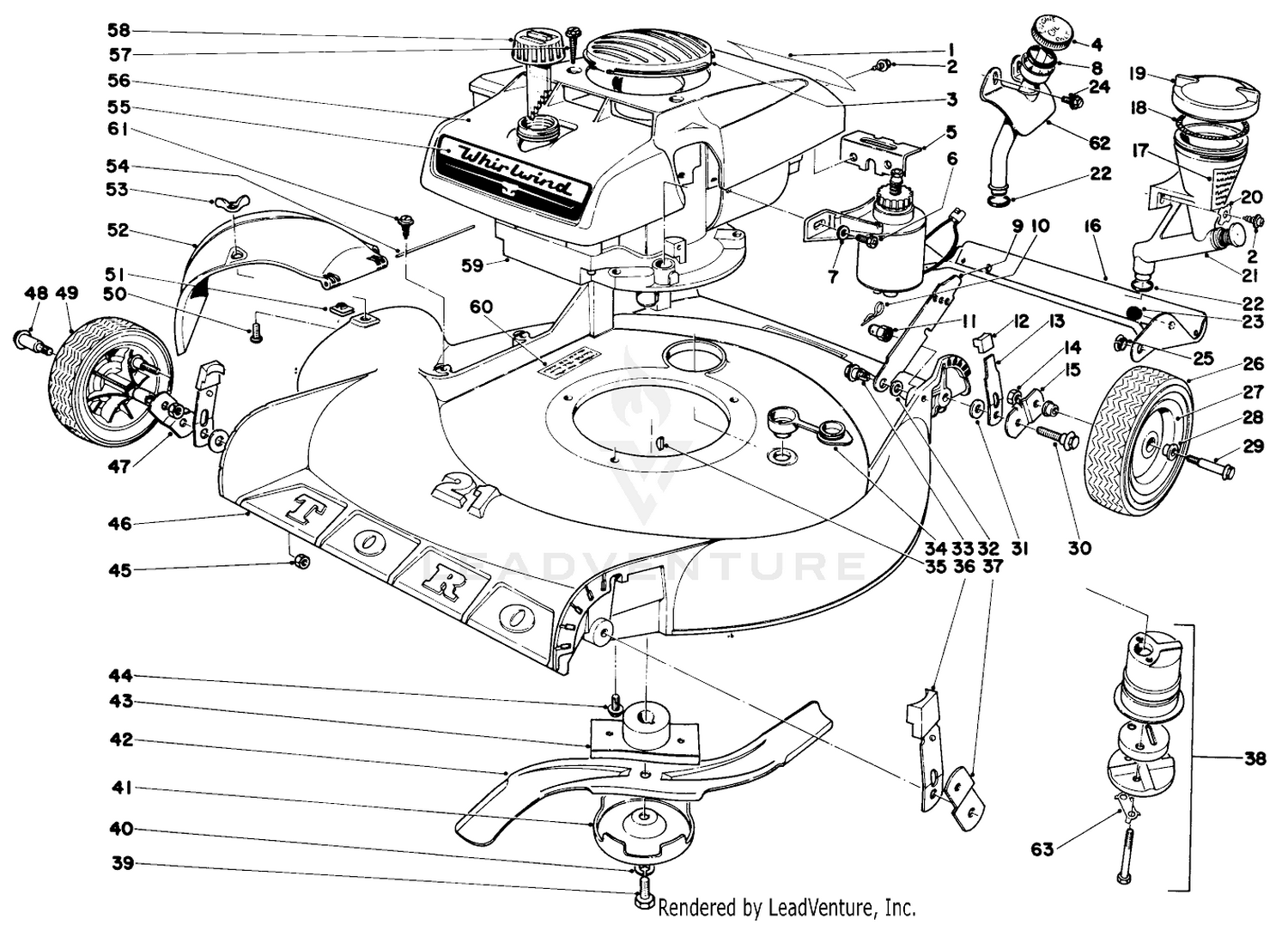

| Ref | Part Number | Description |
|---|
| 1 |
6-1260 |
Decal,Maintenance Price: Call Us |
| 2 |
32144-34 |
SCREW-HWHTF This part replaces 32104-75. Price: $4.19 |
| 3 |
5-3516 |
Insert Shroud Price: Call Us |
| 4 |
5-4591 |
Dipstick Price: Call Us |
| 5 |
5-3307 |
Bracket Price: Call Us |
| 6 |
321-2 |
SCREW-HH Price: $2.79 |
| 7 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
237-21 |
O-RING This part replaces 237-75. Price: $0.70 |
| 9 |
43-1550 |
HANDLE LATCH This part replaces 5-2446. Price: Call Us |
| 10 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 11 |
12-2080 |
HANDLE PIVOT NUT This part replaces 3-6482. Price: $14.79 |
| 12 |
5-0656 |
Knob Price: Call Us |
| 13 |
5-3357 |
DISCONTINUED XREF Price: Call Us |
| 14 |
3296-6 |
NUT-LOCK This part replaces 32146-12. Price: $1.49 |
| 15 |
5-4471 |
Pivot Arm Price: Call Us |
| 16 |
4-8889 |
Safety Shield, Rear Price: Call Us |
| 17 |
5-2947 |
Decal, Reservoir Price: Call Us |
| 18 |
5-1391 |
DISCONTINUED Price: Call Us |
| 19 |
3-8429 |
Cap, Reservoir (Incl. Ref. No. 16) Price: Call Us |
| 20 |
3290-261 |
Washer Price: Call Us |
| 21 |
5-0625 |
DISCONTINUED Price: Call Us |
| 22 |
237-65 |
O-RING Price: $2.50 |
| 23 |
5-6450 |
DISCONTINUED Price: Call Us |
| 24 |
32140-66 |
DISCONTINUED Price: Call Us |
| 25 |
256-194 |
Nyliner Price: Call Us |
| 26 |
4-2600 |
DISCONTINUED Price: Call Us |
| 27 |
3-2563 |
DISCONTINUED PRC4 Price: Call Us |
| 28 |
3-2664 |
DISCONTINUED Price: Call Us |
| 29 |
5-4503 |
Wheel Bolt Price: Call Us |
| 30 |
12-2440 |
PIVOT SCREW This part replaces 5-3351. Price: $13.06 |
| 31 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 32 |
3-3287 |
SPACER Price: $3.69 |
| 33 |
5-2490 |
SCREW-SHOULDER Price: $8.25 |
| 34 |
6-4500 |
WASHOUT PLUG This part replaces 5-0655. Price: $6.61 |
| 35 |
3257-3 |
KEY-WOODRUFF Price: $0.99 |
| 36 |
5-0657 |
ARM KNOB Price: Call Us |
| 37 |
5-4473 |
DISCONTINUED Price: Call Us |
| 38 |
2-9319 |
DISCONTINUED Price: Call Us |
| 39 |
3-5246 |
SPECIAL SCREW Price: Call Us |
| 40 |
3253-22 |
WASHER-LOCK Price: $2.09 |
| 41 |
5-9530 |
ANTI-SCALP CUP Price: $22.55 |
| 42 |
3-6286 |
USE 8-5230 AND 8-5370 PER ED COLE Price: Call Us |
| 43 |
3-9810 |
BLADE RETAINER WA Price: $44.57 |
| 44 |
32144-102 |
SCREW-HWH This part replaces 32140-48. Price: $3.19 |
| 45 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 46 |
5-3325 |
Housing Price: Call Us |
| 47 |
20-3180 |
PIVOT ARM D PLTD This part replaces 5-4474. Price: $17.63 |
| 48 |
99-5651 |
WHEEL BOLT & NUT This part replaces 3-2652. Price: $1.15 |
| 49 |
5-0660 |
DISCONTINUED Price: Call Us |
| 50 |
3290-133 |
SCREW Price: $1.19 |
| 51 |
3290-199 |
NUT-SPEED Price: $4.09 |
| 52 |
5-3311 |
Deflector Price: Call Us |
| 53 |
32103-14 |
NUT-WING SPECL Price: $12.99 |
| 54 |
3-2644 |
HINGE PIN Price: Call Us |
| 55 |
5-3304 |
Decal Price: Call Us |
| 56 |
5-9570 |
Shroud Price: Call Us |
| 57 |
32104-88 |
SCREW-HWH Price: $1.27 |
| 58 |
42-0682 |
DISCONTINUED This part replaces 5-3460. Price: Call Us |
| 59 |
221-354 |
Engine (Used on Model 19444) Price: Call Us |
| 60 |
104-8589 |
DECAL-WARNING This part replaces 3-7643. Price: $3.79 |
| 61 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 62 |
6-0470 |
DISCONTINUED Price: Call Us |
