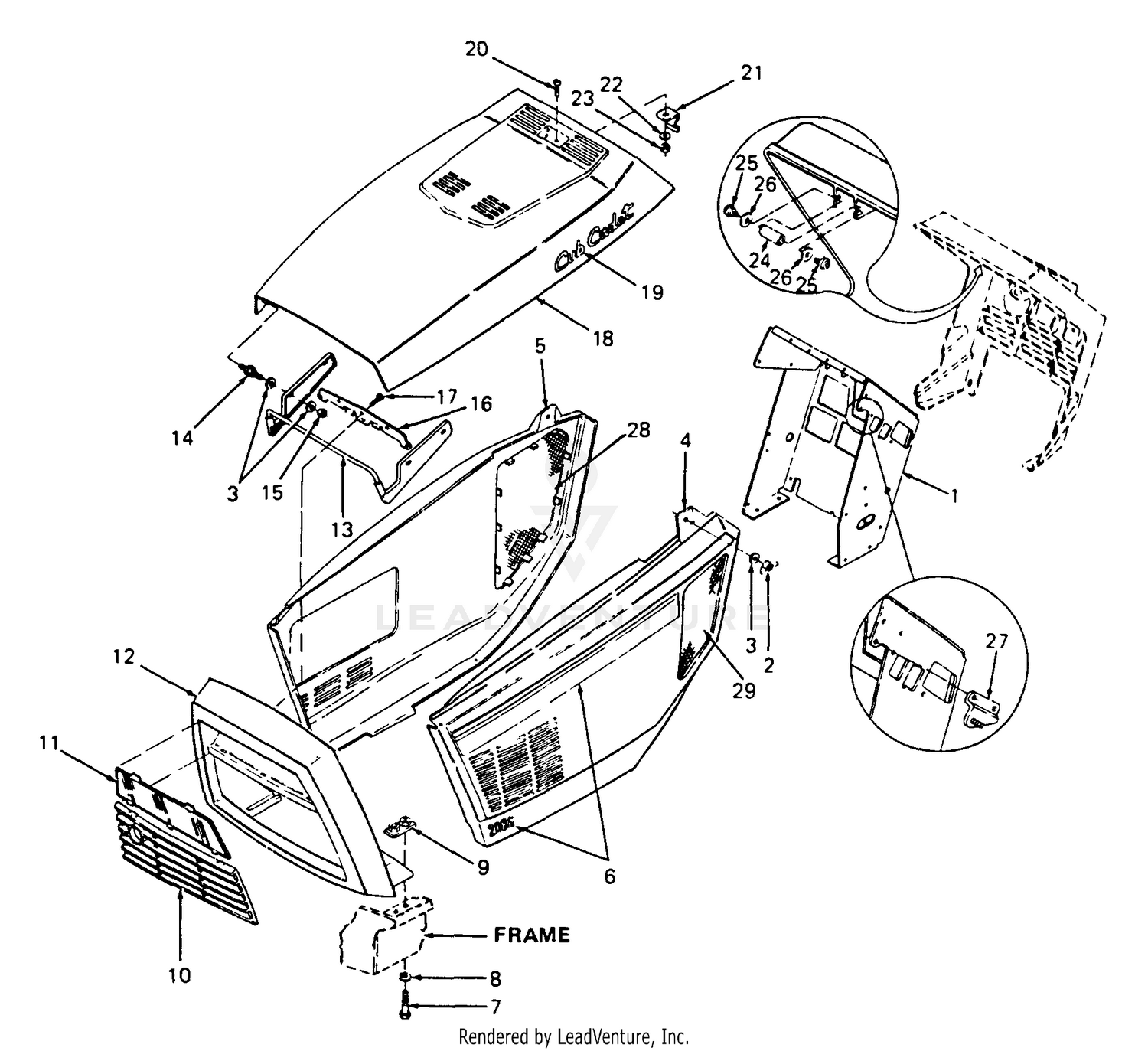

| Ref | Part Number | Description |
|---|
| 1 |
703-1951 |
PEDESTAL Not Available Price: |
| 2 |
712-3044 |
NUT, 1/4 WING Not Available Price: |
| 2 |
75-0920 |
CARTRIDGE-RELIEF Price: $370.39 |
| 3 |
736-0463 |
Washer, Flat, .251 x .62 x .052 Thk Price: $3.91 |
| 3 |
93-7492 |
CARTRIDGE-RELIEF Price: $254.78 |
| 4 |
703-2153A |
SIDE-PANEL L/H Not Available Price: |
| 4 |
95-3459 |
CARTRIDGE-N.O. FLOW CONTROL Price: $394.99 |
| 5 |
139-6007 |
CARTRIDGE-POPPET, NC This part replaces 88-6980. Price: $531.50 |
| 5 |
631-3004 |
SIDE PANEL R/H Not Available Price: |
| 6 |
161-8352 |
VALVE AND COIL KIT This part replaces 93-7494. Price: $347.93 |
| 6 |
759-3785 |
LABEL-KIT L/H Not Available Price: |
| 7 |
139-6007 |
CARTRIDGE-POPPET, NC This part replaces 92-6315. Price: $531.50 |
| 7 |
710-0376 |
Screw, 5/16-18 X 1 Znd Hex Hd Cap This part replaces 710-3002. Price: $3.66 |
| 8 |
936-0119 |
Washer, Lock, 5/16 This part replaces 736-0119. Price: $4.29 |
| 8 |
95-5639 |
VALVE-SOLENOID This part replaces 92-3071. Price: $325.77 |
| 9 |
703-0008 |
GRILLE HOUSING RETAINER Not Available Price: |
| 9 |
94-2685 |
CARTRIDGE-N.C., SPOOL Price: $395.76 |
| 10 |
731-3099 |
GRILLE INSERT Not Available Price: |
| 10 |
88-9200 |
COIL-SOLENOID Price: $171.88 |
| 11 |
161-8350 |
COIL ASM This part replaces 88-9190. Price: $111.53 |
| 11 |
931-3102 |
GRILLE LENS This part replaces 731-3102. Price: $36.19 |
| 12 |
93-7491 |
CARTRIDGE-PILOT CHECK Price: $237.81 |
| 12 |
931-3178 |
GRILLE Not Available This part replaces 731-3178. Price: |
| 13 |
703-1829-0499 |
HOOD HINGE ASSEMBLY (CUB BEIGE) Not Available This part replaces 703-1829. Price: |
| 14 |
353-991 |
PLUG-HEX, HOLLOW Price: $10.21 |
| 14 |
710-3214 |
STUD-DOUBLE ENDED Not Available Price: |
| 15 |
353-990 |
PLUG ASM Price: $10.01 |
| 15 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 16 |
353-989 |
PLUG-HEX, HOLLOW Price: $21.59 |
| 16 |
703-1856 |
PLATE, HINGE Not Available Price: |
| 17 |
710-0748 |
SCREW #12-14 x .500 Not Available Price: |
| 18 |
931-3089B |
HOOD Not Available This part replaces 731-3089A. Price: |
| 19 |
979-3536 |
LABEL-CCC SCRIPT Not Available This part replaces 779-3536. Price: |
| 20 |
710-3217 |
Screw, Truss Hd Mach, #8-32 x .38 Lg Price: $5.94 |
| 21 |
732-3063A |
Clip, Hood Latch Price: Call Us |
| 22 |
736-0310 |
Washer, Flat, .16 x .38 x .045 Thk Price: $3.50 |
| 23 |
912-3072 |
HEX NUT KEPS #8-32 Not Available This part replaces 712-3072. Price: |
| 24 |
911-3296 |
LATCH PIN Not Available This part replaces 711-3296. Price: |
| 25 |
710-0286 |
Screw, Phillips Hd Truss Mach, 1/4-20 x .50 Lg Price: $3.86 |
| 26 |
736-0211 |
Washer, Flat, .285 x 1.25 x .060 Thk Price: $5.99 |
| 27 |
703-1955 |
BRACKET ASSY, LH PANEL MTG Not Available Price: |
| 28 |
703-2162-0499 |
PANEL SCREEN (RH) (CUB BEIGE) Not Available This part replaces 703-2162. Price: |
