Home / OPE / Hydro-Gear Transmissions / 01568000 / Transmission - 01568000

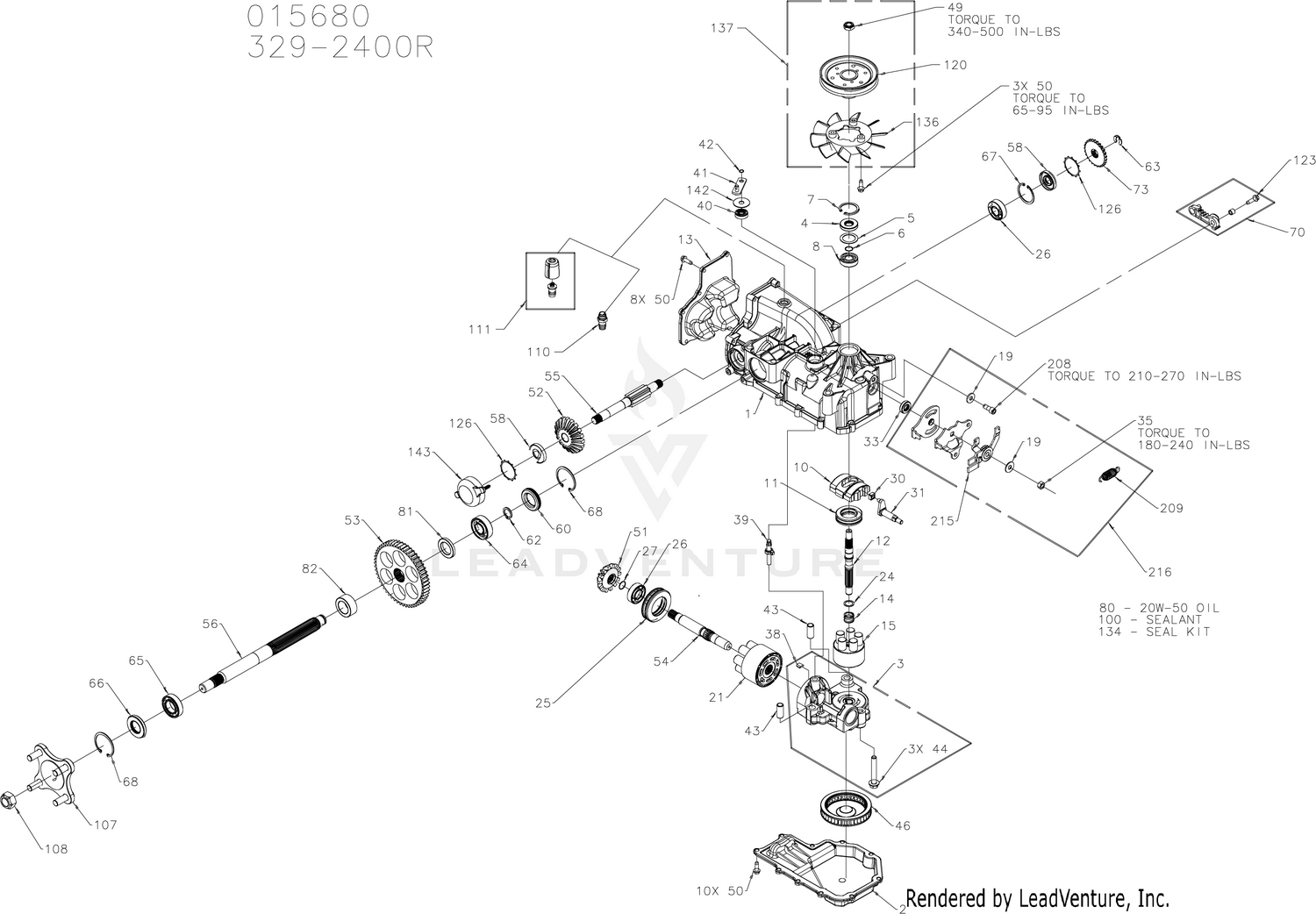

Transmission - 01568000

Transmission - 01568000

Parts (59)

RefPart NumberDescription
1 21543914 KIT, MAIN HOUSING Price: $225.95
2 21543983 HSG, IZT LOWER Price: $30.60
3 21543917 KIT, C-SECTION Price: $183.40
4 21543998 SEAL, LIP 15X35X7 Price: $4.45
5 21543964 WASHER .98X1.37X.04 Price: $1.45
6 08613300 RING, WIRE RETAINING Price: $3.45
7 08608800 RING. RETAINING Price: $1.30
8 08613200 BEARING, SHAFT BALL Price: $15.80
10 08609000 SWASHPLATE. VARIABLE Price: Call Us
11 08609100 BEARING. THRUST 30 X 52 X 13 Price: $14.95
12 21543719 SHAFT, INPUT Price: $71.45
13 21543984 COVER, END IZT Price: $23.00
14 08621500 SPRING. BLOCK Price: Call Us
15 21543889 KIT, 10 CC BLOCK Price: $79.95
24 08609400 WASHER. THRUST .59 X .79 X .04 Price: $1.45
25 21543747 BRG, THRUST BALL 42X68X16 Price: $19.15
26 21543738 BRG, BALL 17X40X12 Price: $16.45
27 21543960 RING, RET WIRE .561 ID Price: $1.45
30 08610700 GUIDE. SLOT Price: $3.60
31 08610800 ARM. TRUNNION TAPERED SQUARE Price: Call Us
33 21543997 SEAL, LIP 12X25X7 Price: $2.25
38 21543918 KIT, BYPASS PLATE Price: $6.30
39 08609800 ACTUATOR, BYPASS Price: Call Us
40 08613800 SEAL, LIP Price: Call Us
41 08611100 ARM. BYPASS Price: Call Us
43 21543718 PIN-HOLLOW .39X.5X1. Price: $3.95
44 21543721 HFHCS 3/8-24X2.5 (PATCH) Price: $2.25
46 21543779 FILTER Price: $56.45
50 21543759 HFHCS 1/4-20X.75 Price: $1.95
51 21543754 GEAR, BEVEL 14T Price: $19.05
52 21543755 GEAR, BEVEL 19T Price: $25.60
53 21543756 GEAR, SPUR 53T Price: $64.50
54 21543761 SHAFT, MOTOR Price: $51.95
55 21543827 SHAFT, BRAKE Price: $97.40
56 21543757 AXLE, 1.0X12.3 Price: $123.95
58 21543816 SEAL, LIP 17X40X7 Price: $11.95
60 21543780 PLUG, SEAL 1.86 Price: $6.45
62 21543762 RING, RET .75 EXT Price: $1.20
63 21543800 RING, RET .440 EXT Price: $1.95
64 21543753 BRG, BALL 20X47X14 Price: $10.65
65 21543752 BRG, BALL 25X47X12 Price: $23.45
66 21543758 SEAL, LIP 25X47X7 Price: $5.95
67 21543741 RING, RET 1.56 INT Price: $6.45
68 21543763 RING, RET 1.87 INT Price: $3.45
70 51514300 KIT, LH-BRAKE ARM IZT This part replaces 00372100. Price: $47.45
73 21543760 BRAKE, PARK SPLINE Price: $11.45
81 21543864 SPACER Price: $4.95
82 21543865 SPACER Price: $19.15
100 21543771 SEALANT TUBE 10.1OZ. Price: $132.95
110 07026300 FTG-STR .50 O-RING Price: $20.45
111 21543938 BREATHER ASSEMBLY Price: $3.95
123 21543791 HFHCS 1/4-20X.875 Price: $2.95
126 21543828 RING, RET 1.43" Price: $1.55
134 21543905 KIT, SEAL Price: $49.45
136 02772600 FAN-6IN Price: $10.95
142 21543855 WASHER, .392 X 1.250 X .0 Price: $2.95
143 21543853 CAP, BRAKE Price: $2.15
208 21543832 SHCS 5/16-24X.75 Price: $2.95
209 21543876 SPRING, EXTENSION Price: $4.45
