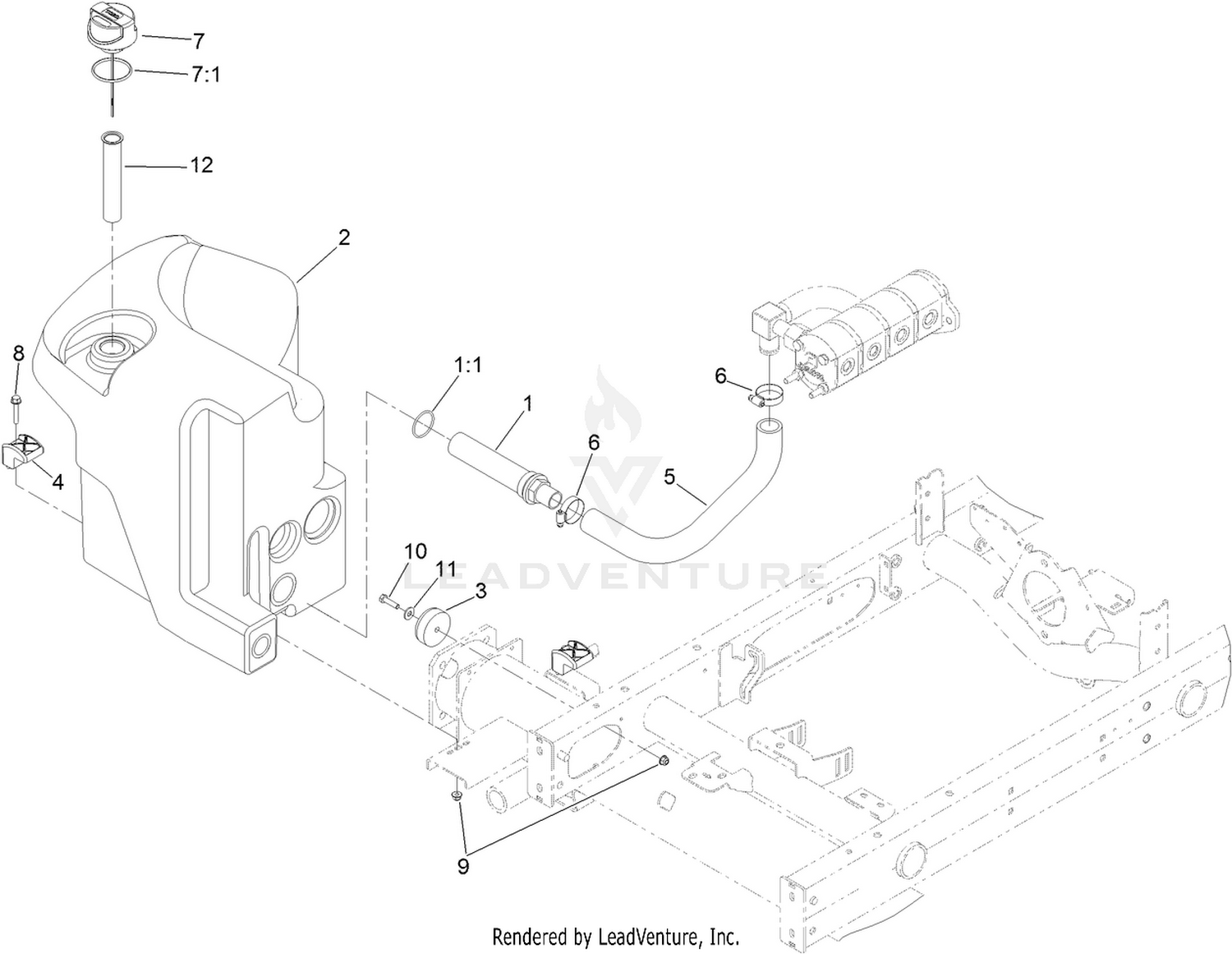

Hydraulic Tank Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 121-5587 | TANK-HYDRAULIC Price: $1,551.43 |
| 3 | 108-1605 | BUMPER-RECESS Price: $10.02 |
| 4 | 107-4543 | CLAMP Price: $13.47 |
| 5 | 108-1685 | HOSE-FORMED Price: $75.79 |
| 6 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 7 | 117-0193 | CAP-HYDRAULIC, VENTED BREATHER Price: $111.66 |
| 8 | 94-5780 | SCREW-HWH Price: $7.49 |
| 9 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 10 | 322-6 | SCREW-HH Price: $0.45 |
| 11 | 3256-3 | WASHER-FLAT Price: $0.49 |
