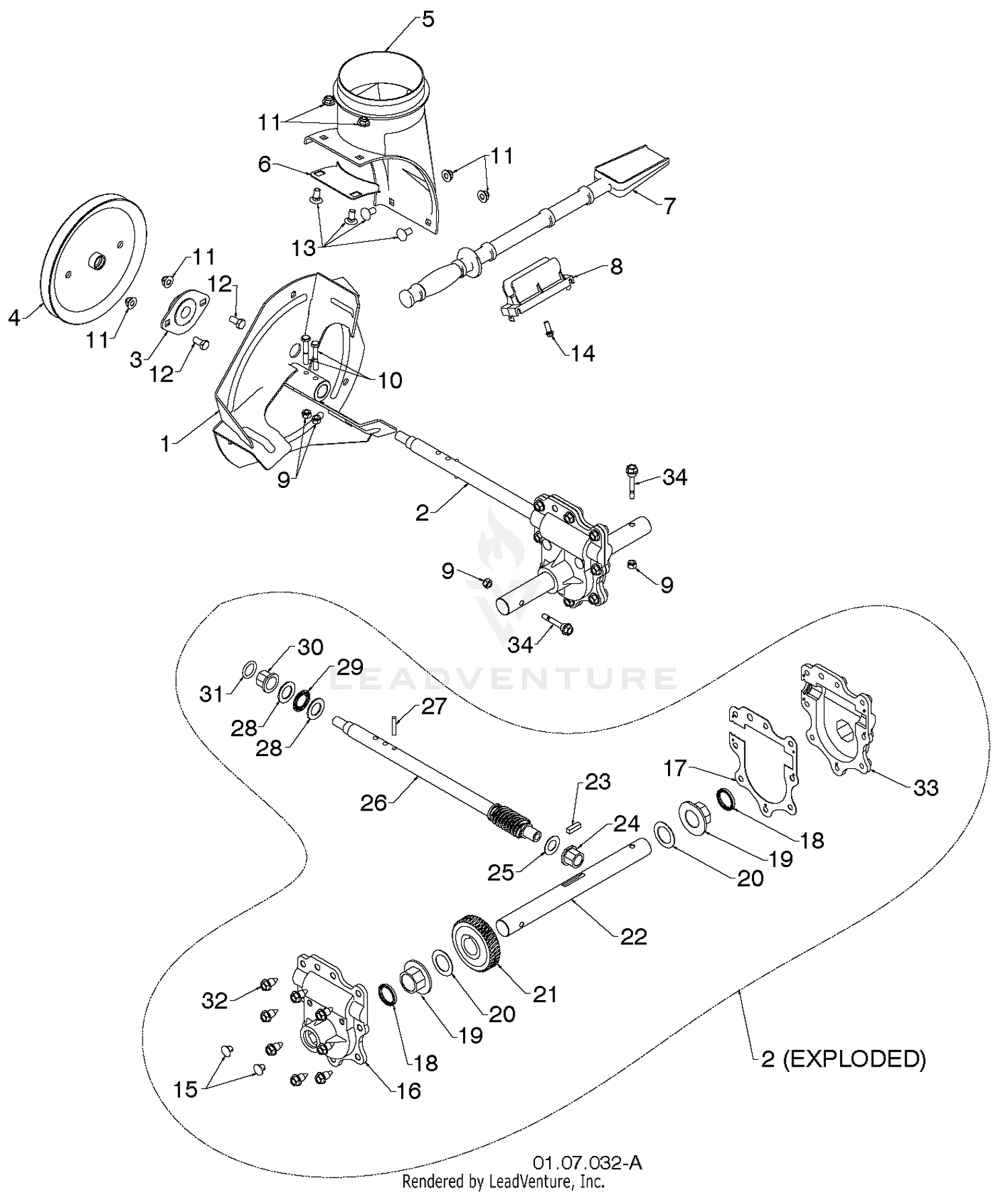

| Ref | Part Number | Description |
|---|
| 1 |
532184105 |
IMPELLER ASSY Price: $49.99 |
| 1 |
6-1470 |
DISCONTINUED Price: Call Us |
| 2 |
32103-14 |
NUT-WING SPECL Price: $12.99 |
| 2 |
532429659 |
KIT.GEARBOX.SNO This part replaces 532427148. Price: $249.99 |
| 3 |
532188909 |
BEARING FLANGE Price: $12.99 |
| 3 |
6-1420 |
Clamp-Battery Hold Down Price: Call Us |
| 4 |
322-2 |
SCREW-HH Price: $0.69 |
| 4 |
585093201 |
PULLEY.IMPELLER.7.5IN.SCREW.ON Price: $27.99 |
| 5 |
3290-244 |
WASHER-LOCK Price: $0.85 |
| 5 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532442438. Price: $6.99 |
| 6 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 6 |
532184095 |
BRACKET, CORNER DISCHARGE Price: $2.99 |
| 7 |
3217-6 |
NUT-HEX Price: $1.19 |
| 7 |
532192199 |
CLEAN OUT TOOL Price: $19.99 |
| 8 |
5-4497 |
DISCONTINUED Price: Call Us |
| 8 |
532405400 |
CLIP.CLEANOUT.TOOL Price: $2.99 |
| 9 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 9 |
6-1410 |
DISCONTINUED Price: Call Us |
| 10 |
3-8168 |
NEG GROUND DECAL Price: $27.05 |
| 10 |
874780426 |
SCREW.HEX.HD1/4-20X Price: $3.99 |
| 11 |
3217-5 |
NUT-HEX Price: $0.25 |
| 11 |
532427942 |
NUTNYLOK.FLRANGE.5/16-18 Price: $2.99 |
| 12 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 12 |
532163183 |
BOLT, HEX HEAD 5/16-18 Price: $2.99 |
| 13 |
321-10 |
SCREW-HH Price: $1.29 |
| 13 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 14 |
10-7160 |
WIRE ASM Price: $57.74 |
| 14 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $3.99 |
| 15 |
532086447 |
Plug (AYP part number) This part replaces 532407760. Price: $3.99 |
| 15 |
6-1500 |
DISCONTINUED Price: Call Us |
| 16 |
532427302 |
GEAR.BOX.COVER.RIGHT.SIDE Price: $29.99 |
| 16 |
8-2200 |
DISCONTINUED Price: Call Us |
| 17 |
321-3 |
SCREW-HH Price: $0.28 |
| 17 |
532427345 |
GASKET.GEAR.BOX Price: $3.99 |
| 18 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 18 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $3.99 |
| 19 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $27.99 |
| 19 |
6-1400 |
DISCONTINUED Price: Call Us |
| 20 |
104-8162 |
BATTERY-DRY This part replaces 28-1400. Price: $114.99 |
| 20 |
532007396 |
Thrust Bearing Race (AYP part number) This part replaces 532174697. Price: $3.99 |
| 21 |
580364101 |
WORMGEAR.AUGER.SNOW Price: $99.99 |
| 22 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $39.99 |
| 23 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $3.99 |
| 24 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $19.99 |
| 25 |
532174683 |
WASHER, THRUST 5/8 Price: $3.99 |
| 26 |
584648401 |
SHAFT INOUT 1/2-20 Price: $49.99 |
| 27 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532184205. Price: $3.99 |
| 28 |
532174681 |
WASHER, THRUST 3/4 Price: $9.99 |
| 29 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $5.99 |
| 30 |
532407769 |
BUSHING, FLANGE 3/4 Price: $3.99 |
| 31 |
532407768 |
O-RING Price: $3.99 |
| 32 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $2.99 |
