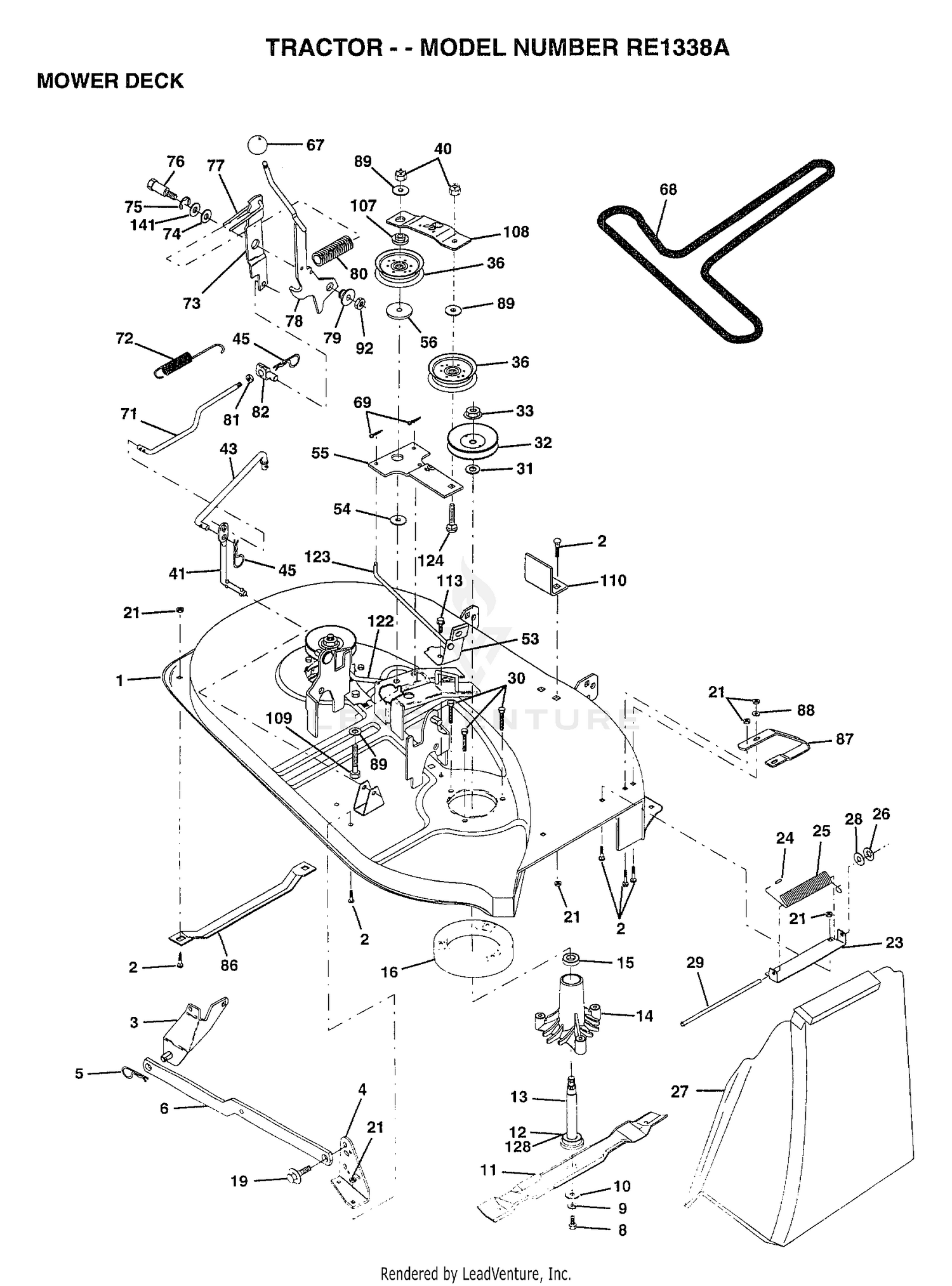

MOWER DECK

MOWER DECK

Parts (86)

RefPart NumberDescription
1 142829 SUB= 145775 Price: Call Us
2 72140506 BOLT Price: Call Us
3 138017 BRKT ASM SWAY BAR Price: Call Us
4 138440 BRKT DECK SW BAR Price: Call Us
5 4939M SUB= 85902 Price: Call Us
6 130832 SUB= 130833 Price: Call Us
8 850857 BLADE BOLT Price: Call Us
9 10030600 SUB= 10040600 Price: Call Us
010 105-3723 CAMSHAFT-FUEL Price: $424.59
10 140296 WASHER.HARD.BLADE Price: Call Us
12 129895 BEARING.BALL Price: Call Us
13 137645 SUB= 137646 Price: Call Us
14 128774 HSG ASM MANDREL Price: Call Us
15 110485X BEARING Price: Call Us
16 140329 STRIPPER RND MWR Price: Call Us
19 132827 BOLT SHD 5/16-18 Price: Call Us
020 98-9382 BEARING-BALL Price: $23.27
21 73680500 SUB= 73690500 Price: Call Us
23 137607 BRKT DEFLECTOR Price: Call Us
24 105304X CAP-SLEEVE LT Price: Call Us
25 123713X SPRING TORSION Price: Call Us
26 110452X NUT PUSH M Price: Call Us
27 106736X DEFLECTOR-SHLD T Price: Call Us
28 19111016 WASHER Price: Call Us
29 106735X ROD-HINGE T Price: Call Us
030 98-9383 DISCONTINUED Price: Call Us
31 129963 WASHER Price: Call Us
32 153532 PULLEY.MANDREL.38 Price: Call Us
33 137266 SUB= 139729 Price: Call Us
36 131494 FLAT IDLER PULLEY Price: Call Us
040 98-9669 GEAR-PUMP, INJECTION Price: $86.00
40 73680600 SUB= 73690600 Price: Call Us
41 133551 PIVOT ROD Price: Call Us
43 133504 CLUTCH ROD SECOND Price: Call Us
45 4497H RETAINER M Price: Call Us
050 98-9590 NUT-CAP Price: $3.86
53 130840 BRAKE ASM Price: Call Us
54 133943 HARDENED WASHER Price: Call Us
55 133840 IDLER ARM ASSY Price: Call Us
56 122052X SPACER RETAINER Price: Call Us
060 98-9595 KEY-WOODRUFF Price: $2.04
67 162132 KNOB.RD.7/16-14 Price: Call Us
68 144200 BELT.V.T-PATH Price: Call Us
69 76020312 SUB= 3145 Price: Call Us
070 98-9511 STOPPER-FUEL, CAMSHAFT Price: $5.18
71 142427 ROD CLUTCH 38/42 Price: Call Us
72 131870 RETURN SPRING Price: Call Us
73 127847 CLUTCH ARM SECOND Price: Call Us
74 121748X WASHER Price: Call Us
75 12000029 RING Price: Call Us
76 128903 SHOULDER BOLT Price: Call Us
77 127845 SPRING KEEPER Price: Call Us
78 160571 LEVER.ASM.CLUTCH Price: Call Us
79 127498 BUSHING Price: Call Us
080 98-9350 BOLT Price: $0.98
80 153701 SPRING.CLUTCH.MWR Price: Call Us
81 73350600 NUT Price: Call Us
82 142028 TRUNION ADJ Price: Call Us
86 7631J RUNNER-LH M Price: Call Us
87 128772 RUNNER RH Price: Call Us
88 19111216 WASHER M Price: Call Us
89 19131612 WASHER GT Price: Call Us
090 105-3724 GOVERNOR SHAFT ASM Price: $822.46
92 73800600 NUT Price: Call Us
100 105-3725 SHAFT-GOVERNOR Price: $47.55
107 133502 RETAINER SPACER Price: Call Us
108 133503 IDLER ARM STIFF Price: Call Us
109 74760640 BOLT Price: Call Us
110 142587 UPSTOP DECK FT 38 Price: Call Us
110 98-9562 HOLDER-GEAR, GOVERNOR Price: $61.49
113 17490512 SCREW Price: Call Us
120 98-9673 GEAR-GOVERNOR Price: $137.25
122 131289 BRAKE ROD LH Price: Call Us
123 131288 BRAKE ROD RH Price: Call Us
124 72110614 BOLT Price: Call Us
128 153390 WASHER.FELT. Price: Call Us
130 98-9561 HOLDER-WEIGHT, GOVERNOR Price: $23.68
140 98-9559 GOVERNOR WEIGHT ASM Price: $105.15
141 6266H WASHER .T Price: Call Us
150 98-9560 SHAFT-WEIGHT, GOVERNOR Price: $6.17
160 98-9692 ROLLER Price: $11.45
170 98-9563 SLEEVE-GOVERNOR Price: $29.68
180 98-9564 WASHER-THRUST Price: $5.01
190 98-9381 BEARING-BALL Price: $21.66
200 98-9657 CIRCLIP-SHAFT, GOVERNOR Price: $4.48
130794 MANDREL ASM Price: Call Us 130794
