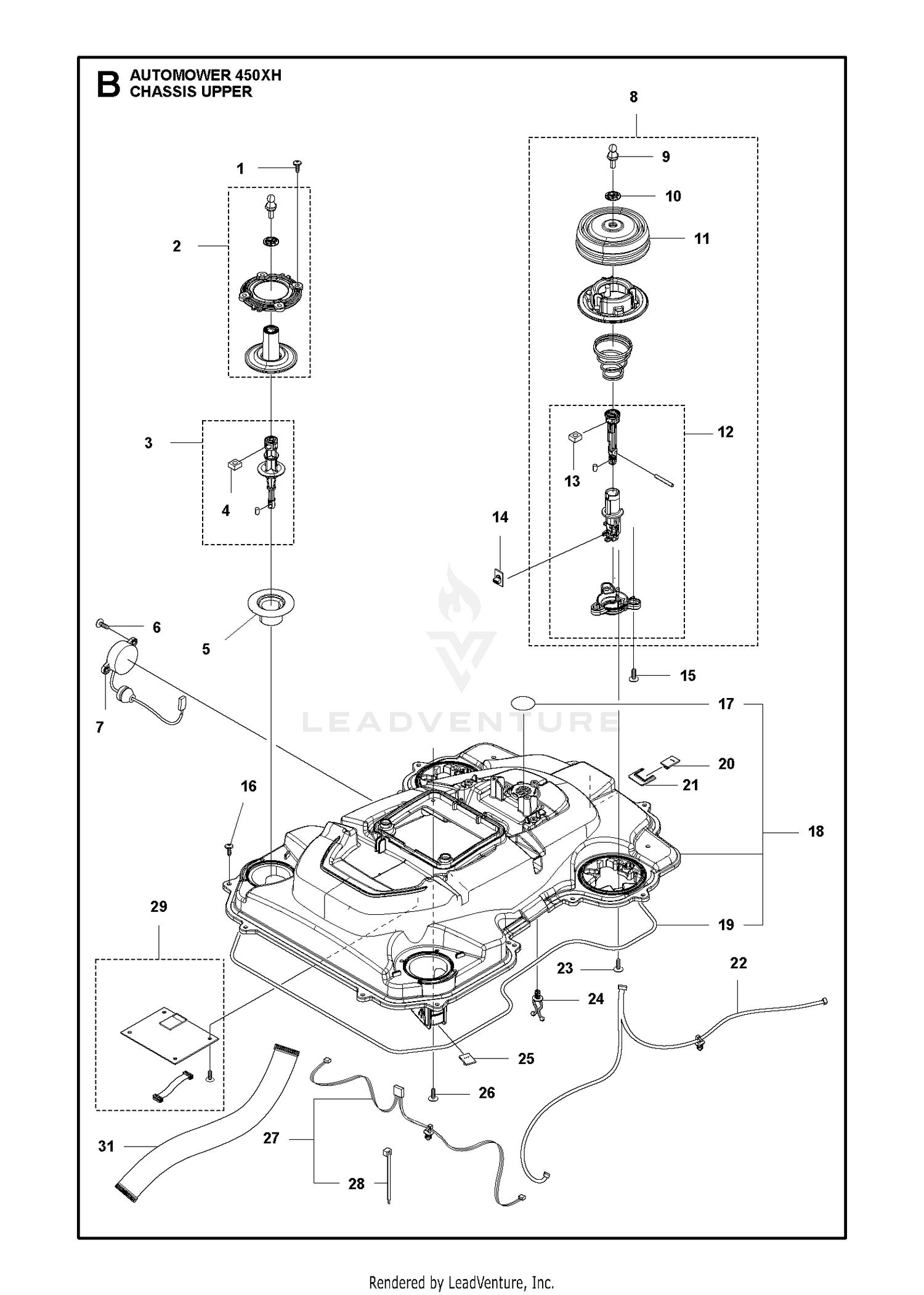

CHASSIS UPPER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 4 | 503226601 | NUT Price: $3.99 |
| 5 | 535143201 | MOVEMENT LIMITER Price: $9.99 |
| 6 | 575543314 | SCREW 14MM Price: $3.99 |
| 7 | 579706302 | BUZZER ASSY Price: $22.99 |
| 9 | 580526701 | STUD SNAPLOC Price: $2.99 |
| 10 | 579525701 | WASHER JOYSTICK Price: $2.99 |
| 11 | 579474601 | BELLOWS LIFT-COLLISION Price: $9.99 |
| 12 | 587448802 | JOYSTICK KIT Price: $19.99 |
| 13 | 503226601 | NUT Price: $3.99 |
| 15 | 575543314 | SCREW 14MM Price: $3.99 |
| 16 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 18 | 581620802 | CHASSIS KIT UPPER Price: $54.99 |
| 21 | 587834901 | CLIP COLLISION BOARD Price: $2.99 |
| 28 | 900238708 | BAND Price: $2.99 |
