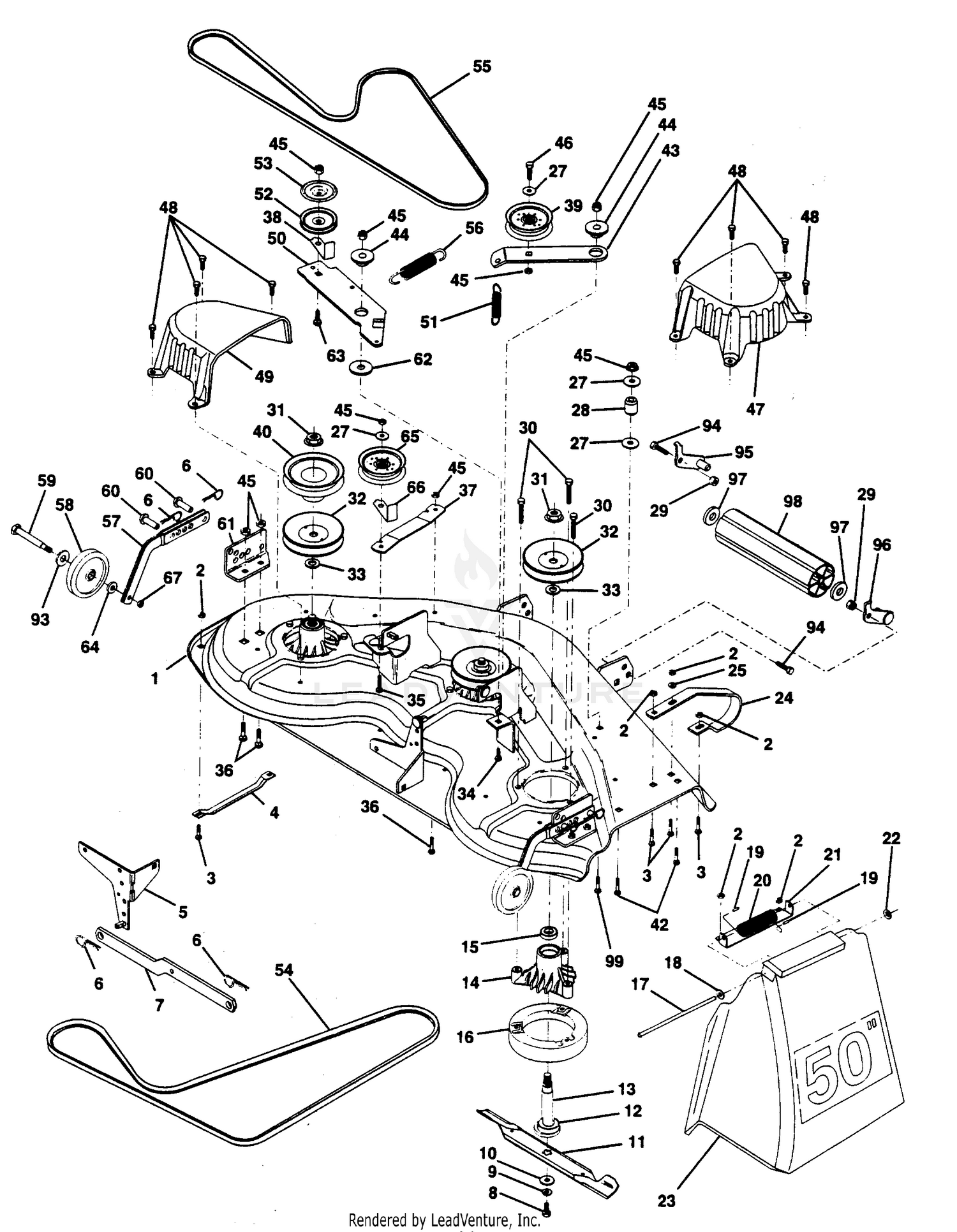

| Ref | Part Number | Description |
|---|
| 1 |
532185382 |
DECK WELDMENT KIT 50" This part replaces 532136457. Price: $514.99 |
| 2 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 3 |
872110506 |
Bolt, Carriage 5/16-18 x 3/4 Price: $3.99 |
| 4 |
532007631 |
Runner, Mower LH This part replaces 532125074. Price: $11.99 |
| 5 |
532138457 |
Bracket Asm., Sway Bar Price: $8.99 |
| 6 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 7 |
532178024 |
Bar Sway Deck This part replaces 532130832. Price: $5.99 |
| 8 |
532850857 |
Bolt 3/8-24 x 1.25 Gr. 8 Patched Price: $1.99 |
| 9 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 10 |
532140296 |
Washer, Hard Blade Mower Vented Price: $2.99 |
| 11 |
532137380 |
Blade (3 Required) Price: $11.99 |
| 12 |
738220419 |
BALL-BEARING 6204-2RS This part replaces 532129895. Price: $14.99 |
| 13 |
532137553 |
Shaft Asm., W/Lower Brg (Includes Key No. 12) Price: $22.99 |
| 14 |
532137152 |
Housing, Mandrel 50" Vent Price: $23.99 |
| 15 |
532110485 |
Bearing, Ball Mandrel Price: $7.99 |
| 16 |
532174493 |
Stripper, Mower This part replaces 532140329. Price: $3.99 |
| 17 |
532106735 |
Rod, Hinge Price: $4.99 |
| 18 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02 |
| 19 |
532105304 |
Cap, Sleeve Price: $2.99 |
| 20 |
532123713 |
Spring, Torsion Deflector Price: $3.99 |
| 21 |
532137607 |
Bracket, Deflector Price: $3.99 |
| 22 |
532110452 |
Nut, Push Price: $1.99 |
| 23 |
532110509 |
Shield, Deflector Mower Price: $22.99 |
| 24 |
532136320 |
Runner, RH Price: $7.99 |
| 25 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.02 |
| 27 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 28 |
532132823 |
Spacer, Spring Stop Idler Price: $4.99 |
| 29 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 30 |
532173984 |
BOLT, MANDREL This part replaces 532138776. Price: $2.99 |
| 31 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 32 |
532173436 |
Pulley, Mandrel This part replaces 532129861. Price: $7.99 |
| 33 |
532187690 |
SPACER, MANDREL This part replaces 532129963. Price: $1.99 |
| 34 |
872140610 |
Bolt, Carriage 3/8-16 x 1-1/4 Price: $2.99 |
| 35 |
872110616 |
Bolt, Carriage 3/8-16 x 2 Price: $3.99 |
| 36 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 Price: $3.99 |
| 37 |
532137166 |
Stiffener, Arm Idler Price: $3.99 |
| 38 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532137554. Price: $4.99 |
| 39 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 40 |
532136572 |
Pulley, Driven Price: $24.99 |
| 42 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 43 |
532136460 |
Arm, Idler Secondary Price: $4.99 |
| 44 |
532165723 |
Spacer Retainer This part replaces 532122052. Price: $2.99 |
| 45 |
873680600 |
Nut, Crownlock 3/8-16 Unc Price: $1.99 |
| 46 |
874780628 |
BOLT, FIN, HEX 3/8-16 X 1-3/4 This part replaces 874760628. Price: $3.99 |
| 47 |
532137200 |
Cover, Mandrel RH Price: $14.99 |
| 48 |
532137729 |
Screw, Thd Roll 1/4-20 x 5/8 Price: $2.49 |
| 49 |
532136574 |
Cover, Mandrel LH Price: $12.99 |
| 50 |
532137272 |
Arm, Idler Primary Price: $3.99 |
| 51 |
532137273 |
Spring, Secondary Price: $3.99 |
| 52 |
532139245 |
Pulley, Idler V Groove Price: $22.99 |
| 53 |
532137789 |
Shield, Idler Price: $4.99 |
| 54 |
532139573 |
V-Belt, Mower Primary Price: $37.99 |
| 55 |
532144959 |
V-Belt, Mower Secondary Price: $30.99 |
| 56 |
532138687 |
Spring, Primary Price: $2.99 |
| 57 |
532136577 |
Bar Asm., Wheel Gauge Price: $8.99 |
| 58 |
532105455 |
Wheel, Gauge Price: $11.99 |
| 59 |
532004898 |
BOLT This part replaces 532124842. Price: $1.99 |
| 60 |
532139031 |
Pin, Clevis Price: $3.99 |
| 61 |
532136573 |
Bracket, Wheel Gauge Price: $3.99 |
| 62 |
532178515 |
Washer Hardened This part replaces 532133943. Price: $2.99 |
| 63 |
872110612 |
Bolt Carriage 3/8-16 x 1-1/2 Price: $3.99 |
| 64 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 65 |
532102403 |
Pulley Idler Flat Mower Price: $22.99 |
| 66 |
532156009 |
SUB= 156009 This part replaces 532139622. Price: $4.99 |
| 67 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 93 |
819171512 |
Washer 17/32 x 15/16 x 12 Ga. Price: $3.99 |
| 94 |
874780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 This part replaces 874760616. Price: $3.99 |
| 95 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $3.99 |
| 96 |
532175747 |
BRACKET ASM, ROLLER (R) This part replaces 532132273. Price: $7.99 |
| 97 |
819171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: $2.99 |
| 98 |
532132264 |
Roller, Nose Price: $9.99 |
| 99 |
872110614 |
Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5 Price: $3.99 |
