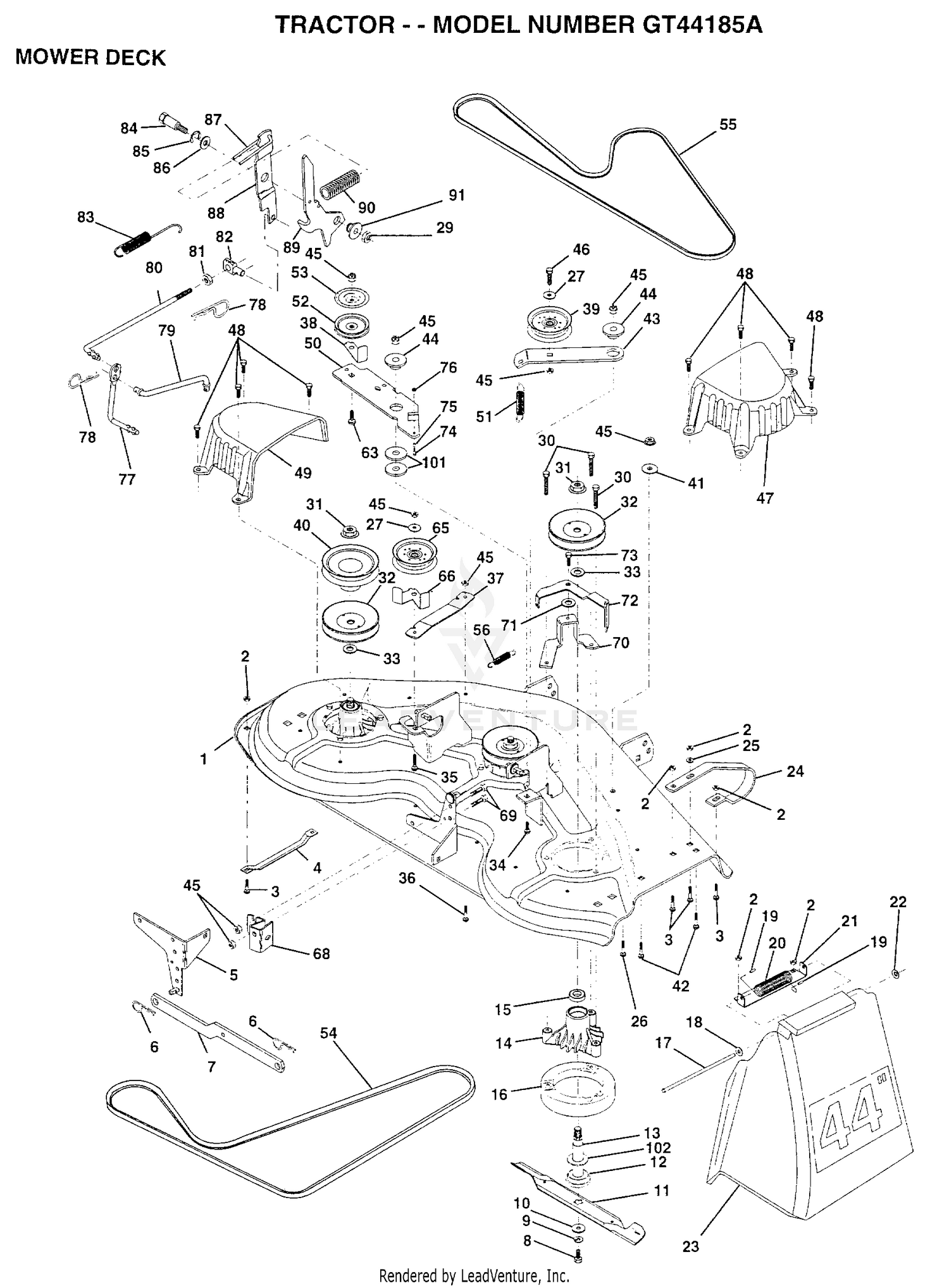

| Ref | Part Number | Description |
|---|
| 1 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 2 |
32128-32 |
NUT-HHF Price: $2.69 |
| 2 |
73680500 |
SUB= 73690500 Price: Call Us |
| 3 |
72110506 |
SUB= 72270506 Price: Call Us |
| 3 |
74-2710 |
CLAMP-HOSE Price: $21.71 |
| 4 |
74-2730 |
TUBE Price: $5.97 |
| 4 |
7631J |
RUNNER-LH M Price: Call Us |
| 5 |
138457 |
BRKT.ASM.SW.44/50 Price: Call Us |
| 5 |
93-9928 |
CLAMP-HOSE Price: $19.29 |
| 6 |
322-3 |
SCREW-HH Price: $0.79 |
| 6 |
4939M |
SUB= 85902 Price: Call Us |
| 7 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
69-9300 |
PAD-BUMPER Price: $8.68 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
32108-103 |
SCREW-FH Price: $0.68 |
| 11 |
93-9941-01 |
ARM-OUTER LIFT, RH Price: $1,714.96 |
| 11 |
93-9942-01 |
ARM-OUTER LIFT, LH Price: $1,714.96 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
71-2600 |
TUBE-ANTISWAY Price: $63.76 |
| 13 |
137553 |
SHAFT.ASM.W/BRNG Price: Call Us |
| 13 |
69-9240 |
ROLLER-CAM Price: $42.48 |
| 14 |
137152 |
HOUSING.MAND.44.V Price: Call Us |
| 14 |
256-76 |
BUSHING Price: $4.07 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
69-9250 |
PIN-ROLLER Price: $59.77 |
| 17 |
106735X |
ROD-HINGE T Price: Call Us |
| 17 |
3219-7 |
NUT-HEX Price: $1.53 |
| 18 |
19111016 |
WASHER Price: Call Us |
| 18 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 19 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
123713X |
SPRING TORSION Price: Call Us |
| 20 |
98-3311-01 |
ARM-ANTI SWAY, LH Price: $273.32 |
| 20 |
98-3312-01 |
ARM-ANTI SWAY, RH Price: $311.03 |
| 21 |
137607 |
BRKT DEFLECTOR Price: Call Us |
| 21 |
82-7900 |
ARM-SHAFT Price: $194.77 |
| 22 |
110452X |
NUT PUSH M Price: Call Us |
| 22 |
3220-7 |
NUT-JAM Price: $4.09 |
| 23 |
109785X |
DEFLECTOR SHIELD Price: Call Us |
| 23 |
2411-40 |
END-ROD Price: $195.97 |
| 24 |
136321 |
RUNNER.RH Price: Call Us |
| 24 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 25 |
19111216 |
WASHER M Price: Call Us |
| 25 |
98-1452 |
WASHER-THRUST Price: $0.94 |
| 26 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 26 |
72110606 |
BOLT Price: Call Us |
| 27 |
19131316 |
WASHER Price: Call Us |
| 27 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 28 |
71-2620 |
SHAFT-ELBOW, LIFT ARM Price: $222.47 |
| 29 |
321-15 |
SCREW-HH Price: $0.61 |
| 29 |
73680600 |
SUB= 73690600 Price: Call Us |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 30 |
94-6772-01 |
RETAINER Price: $17.47 |
| 31 |
137266 |
SUB= 139729 Price: Call Us |
| 31 |
93-9912 |
GROMMET Price: $14.93 |
| 32 |
153535 |
PULLEY.MANDREL.42 Price: Call Us |
| 32 |
93-9925-01 |
ARM-LIFT, RH Price: $2,514.65 |
| 32 |
93-9926-01 |
ARM-LIFT, LH Price: $2,514.68 |
| 33 |
129963 |
WASHER Price: Call Us |
| 34 |
72140610 |
BOLT.3/8-14X1.25 Price: Call Us |
| 35 |
72110616 |
BOLT Price: Call Us |
| 36 |
72110608 |
BOLT D Price: Call Us |
| 37 |
137166 |
STIFFENER.ARM.IDL Price: Call Us |
| 38 |
140365 |
KEEPER BELT IDLER Price: Call Us |
| 39 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 41 |
19171616 |
WASHER Price: Call Us |
| 42 |
72140506 |
BOLT Price: Call Us |
| 44 |
122052X |
SPACER RETAINER Price: Call Us |
| 45 |
73680600 |
SUB= 73690600 Price: Call Us |
| 46 |
74760628 |
BOLT Price: Call Us |
| 48 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 49 |
136574 |
COVER.MANDREL.LH Price: Call Us |
| 50 |
137272 |
ARM.IDLER.PRIMARY Price: Call Us |
| 52 |
139245 |
PULLEY.IDLER.VGRO Price: Call Us |
| 53 |
137789 |
SHIELD.IDLER.44.V Price: Call Us |
| 54 |
142686 |
BELT-V MOWER PRIM Price: Call Us |
| 55 |
131290 |
BELT-V.88.12.MW Price: Call Us |
| 57 |
136577 |
BAR.ASM.GUAGE.WHL Price: Call Us |
| 58 |
105455X |
WHEEL.GAGE.BLK.PL Price: Call Us |
| 59 |
4898H |
BOLT M Price: Call Us |
| 60 |
139031 |
PIN.CLEVIS Price: Call Us |
| 61 |
136573 |
BRACKET.GUAGE.WHL Price: Call Us |
| 63 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 64 |
19121414 |
WASHER Price: Call Us |
| 65 |
151831 |
PULLEY IDELR FLAT Price: Call Us |
| 66 |
139622 |
SUB= 918139622 Price: Call Us |
| 67 |
73930600 |
LOCKNUT Price: Call Us |
| 68 |
140364 |
BRACKET PVT MCH Price: Call Us |
| 69 |
74760612 |
SUB= 74780612 Price: Call Us |
| 71 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 72 |
140367 |
ARM BRAKE ASM Price: Call Us |
| 73 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 74 |
133940 |
SUB= 151785 Price: Call Us |
| 75 |
131340 |
SHOULDER BOLT Price: Call Us |
| 76 |
69180 |
LOCKNUT Price: Call Us |
| 77 |
133551 |
PIVOT ROD Price: Call Us |
| 78 |
4497H |
RETAINER M Price: Call Us |
| 79 |
140363 |
ROD CLUTCH SECON Price: Call Us |
| 80 |
143354 |
ROD.CLUTCH.PRIM44 Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 83 |
146927 |
SPRING.EXT.RETURN Price: Call Us |
| 84 |
128903 |
SHOULDER BOLT Price: Call Us |
| 85 |
12000029 |
RING Price: Call Us |
| 86 |
121748X |
WASHER Price: Call Us |
| 87 |
127845 |
SPRING KEEPER Price: Call Us |
| 88 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 89 |
140333 |
SUB= 140333X431 Price: Call Us |
| 90 |
128759 |
SUB= 918128759 Price: Call Us |
| 91 |
127498 |
BUSHING Price: Call Us |
| 93 |
19171512 |
WASHER Price: Call Us |
| 102 |
153390 |
WASHER.FELT. Price: Call Us |
| 143419 |
DECK |
MOWER COMP Price: Call Us 143419 |
