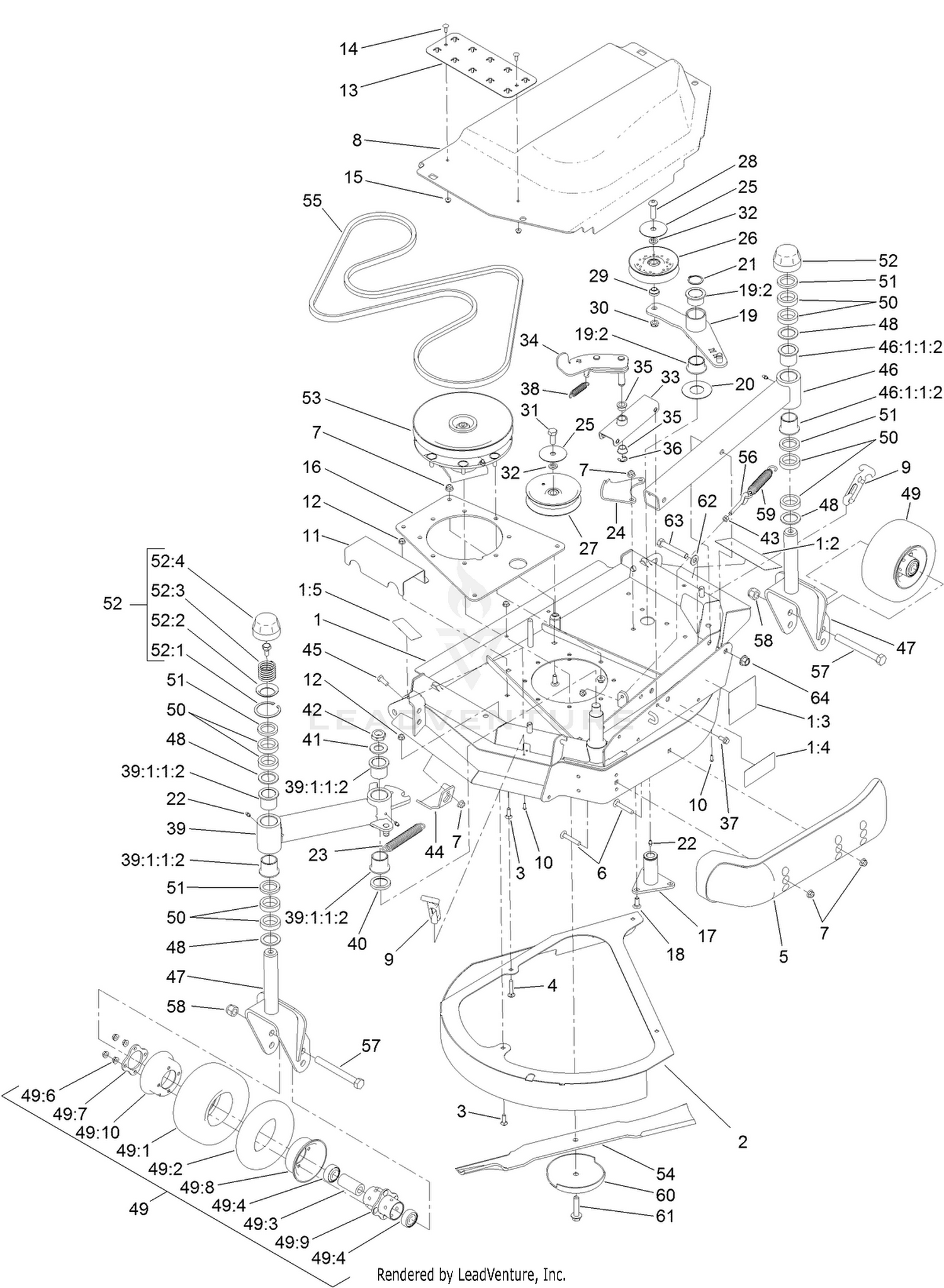

| Ref | Part Number | Description |
|---|
| 1 |
127-4842 |
LH DECK ASM Price: $2,410.93 |
| 2 |
121-5265-0P |
CHAMBER-LH This part replaces 121-5265-01. Price: $310.94 |
| 3 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 4 |
3230-5 |
BOLT-CAR Price: $0.54 |
| 5 |
112-1479 |
SKID-BUMPER, DECK Price: $95.09 |
| 6 |
3231-33 |
SCREW-CARR Price: $4.29 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
121-5472 |
COVER-LH Price: $274.04 |
| 9 |
103-4080 |
LATCH-RUBBER Price: $29.99 |
| 10 |
3274-39 |
SCREW-HSBH Price: $4.34 |
| 11 |
121-5465-0P |
SUPPORT-STEP This part replaces 121-5465-03. Price: $28.01 |
| 12 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 13 |
127-4820-01 |
PLATE-STEP Price: $19.98 |
| 14 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 15 |
104-7201 |
NUT-HF Price: $0.69 |
| 16 |
127-4902-0P |
PLATE-STIFFENER, LH This part replaces 127-4902-03. Price: $60.03 |
| 17 |
114-0997 |
PIVOT-IDLER Price: $53.85 |
| 18 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 19 |
121-5275 |
IDLER ARM ASM Price: $141.35 |
| 20 |
108-1926 |
WASHER Price: $5.30 |
| 21 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 22 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 23 |
116506 |
SPRING-EXTENSION Price: $18.19 |
| 24 |
127-4901-0P |
BRACKET-STOP, IDLER This part replaces 127-4901-03. Price: $26.60 |
| 25 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 26 |
140-5848 |
PULLEY-IDLER This part replaces 63-1540-03. Price: $62.48 |
| 27 |
1-613098 |
PULLEY-IDLER Price: $33.36 |
| 28 |
108-1993 |
SCREW-HSBH Price: $3.66 |
| 29 |
108-1924 |
SPACER-IDLER Price: $11.13 |
| 30 |
3296-45 |
NUT-HEX Price: $3.79 |
| 31 |
117-3266 |
SCREW-HH Price: $1.63 |
| 32 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 33 |
125-9424-01 |
LATCH SUPPORT ASM Price: $98.29 |
| 34 |
127-4830 |
LATCH ASM Price: $148.33 |
| 35 |
65-8770 |
BUSHING-BELLCRANK Price: $5.35 |
| 36 |
32120-19 |
E-RING Price: $2.27 |
| 37 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 38 |
107938 |
SPRING-EXTENSION Price: $9.99 |
| 39 |
125-9415-01 |
CASTOR ARM ASM Price: $332.97 |
| 40 |
86-6560 |
WASHER-THRUST Price: $29.68 |
| 41 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 42 |
3296-60 |
NUT-LOCK, NI Price: $5.08 |
| 43 |
3217-6 |
NUT-HEX Price: $1.19 |
| 44 |
133-4735 |
SKID-LINK Price: $16.64 |
| 45 |
323-5 |
SCREW-HH Price: $0.41 |
| 46 |
121-5263-01 |
CASTOR ARM ASM Price: $218.49 |
| 47 |
140-6306-01 |
CASTER FORK ASM This part replaces 104-0762-01. Price: $241.08 |
| 48 |
69-6860 |
WASHER-THRUST Price: $3.15 |
| 49 |
93-9938 |
WHEEL ASM Price: $144.61 |
| 50 |
69-1510 |
SPACER Price: $4.48 |
| 51 |
121-5485 |
SPACER Price: $7.12 |
| 52 |
92-8862 |
HOC CAP ASM Price: $71.16 |
| 53 |
138-1932 |
HIGH DRIVEN SPINDLE ASM This part replaces 121-5257. Price: $706.55 |
| 54 |
125-9444-03 |
BLADE-COMBINATION, 25.18 Price: $43.26 |
| 55 |
121-5252 |
BELT-V Price: $86.46 |
| 56 |
85-9910 |
EYEBOLT Price: $28.77 |
| 57 |
327-24 |
SCREW-HH Price: $7.99 |
| 58 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 59 |
127-4911 |
SPRING-EXTENSION Price: $50.13 |
| 60 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 61 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 62 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 63 |
325-13 |
SCREW-HH Price: $3.57 |
