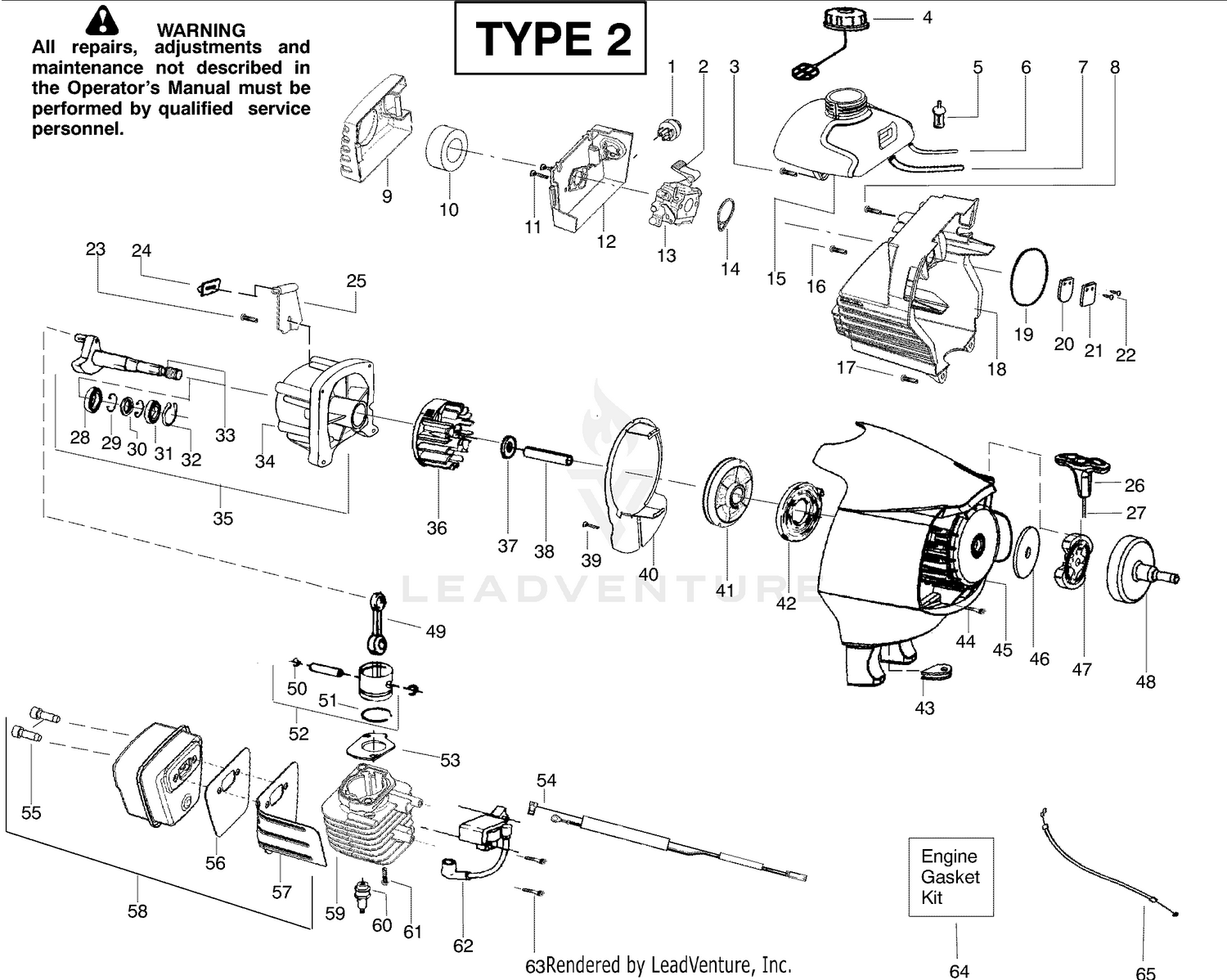

Engine Assembly Type 2

Engine Assembly Type 2

Parts (82)

RefPart NumberDescription
1 323-6 SCREW-HH Price: $0.66
1 530047721 Bulb-Purge Price: $3.99
2 530071717 Kit-Choke Lever Price: $7.99
3 112-6967 O-RING Price: $2.70
3 530015843 Screw-tank Price: $1.99
4 120-5118 SHAFT-ADJUSTER Price: $44.64
4 530057973 Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99
5 106-5344 BUSHING-FLANGE, KEYED Price: $2.37
5 530095646 Assy-Fuel pickup Price: $2.99
6 119-4067 SCREW-HH Price: $0.81
6 530069247 Kit-Fuel Line This part replaces 530071404. Price: $3.99
7 530069216 Kit-Fuel/Purge line Price: $3.99
7 99-2097 DETENT Price: $12.71
8 120-5116 WASHER-WAVE Price: $9.17
8 530015775 Screw Price: $1.99
9 108-0015 WASHER-FLAT Price: $0.39
9 545000501 Cover-Air box Price: $3.99
10 137-6130 SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42
10 545082301 Filter-Air Price: $2.99
11 119-4155 WASHER-HARDENED Price: $4.16
11 530015849 Screw-Carb. Price: $1.99
12 120-5120 SPRING-COMPRESSION Price: $2.89
12 545000601 Box-Air Price: $4.99
13 119-4039 NUT-HEX, NI Price: $0.28
14 545030102 Seal-Carb. (kit) Price: $5.99
15 112-8908-01 BEDBAR Price: $402.52
15 545075305 Assy-Fuel Tank This part replaces 545075304. Price: $11.99
16 119-4151 SCREW-BEDKNIFE Price: $0.41
16 530015771 Screw-Crankcase Price: $1.99
17 147-1249 BEDKNIFE-RM 27IN STD This part replaces 114-9388. Price: $84.10
17 530015952 Screw-Shroud Price: $1.99
18 545000701 Assy-Rear Shroud Price: $17.99
19 545030102 O-ring-Shroud (kit) Price: $5.99
20 530027593 Valve-Reed Price: $1.99
21 530029781 Stop-Reed Price: $1.99
21 61-1950 WASHER-PLASTIC Price: $0.55
22 545227101 SCREW 6-19X.437 This part replaces 530016064. Price: $1.99
22 56-9520 BUSHING-FLANGED Price: $2.15
23 530015875 Screw-Retainer Price: $1.99
23 69-8980 WASHER Price: $0.58
24 106-9623 BOLT-BEDBAR Price: $18.27
24 530055492 Isolator-Tank Price: $1.99
25 3296-33 NUT-LOCK, NI Price: $2.39
25 530054941 Ret.-Tank Price: $1.99
26 530054834 Handle-Starter Price: $1.99
27 115-5258 SPRING-WIRE, FLAT Price: $3.40
27 545050409 Kit-Rope Price: $4.99
28 545081601 Bearing-Inner Price: $7.99
29 530015787 Retainer Price: $1.99
30 530019158 Seal Price: $2.99
31 137-8470 EdgeSeries+, Fairway(27in), 8 Blade, Low Drag, Radial Reel ASM Price: $910.85
31 530032102 Bearing-Outer Price: $8.99
32 530015789 Ret.-Crankshaft Price: $2.99
33 530028807 Assy-Crankshaft Price: $19.99
34 127-7111 INSERT-THREADED, 7 INCH (LH) Price: $42.48
35 127-7109 INSERT-THREADED, 7 INCH (RH) Price: $42.48
36 530055524 Assy-Flywheel Price: $22.99
37 530016030 Washer Price: $1.99
38 530055620 Spacer Price: $4.99
39 530015775 Screw-Baffle Price: $1.99
40 545115201 Plate-Baffle Price: $2.99
41 545050408 Kit-Pulley Price: $14.99
42 545008014 KIT STARTER SPRING This part replaces 545054901. Price: $3.99
43 530019182 Grommet Price: $1.99
44 530016386 Screw-F/hsg. Price: $5.99
45 530055248 Assy-Fan Housing Price: $17.99
46 530094189 Washer-Clutch Price: $2.99
47 530055122 Assy-Clutch Price: $8.99
48 530150247 Assy-Drum/Adapter Price: $17.99
49 530010960 Assy-Conn. Rod Price: $14.99
50 530015162 Ret.-Piston pin Price: $1.99
51 530012594 Ring-Piston Price: $3.99
53 545030102 Gasket-Cylinder (kit) Price: $5.99
54 530058846 Assy-Leadwire Price: $4.99
55 530016387 Bolt-Muffler 1/4"-20 Price: $1.99
56 545030102 Gasket-Muffler (kit) Price: $5.99
57 545033201 Shield Price: $3.99
59 530012586 Cylinder Price: $17.99
60 952030249 Plug-Spark(RCJ-6Y) Price: $3.99
61 530001624 Bolt-Cyl. 1/4"-20 Price: $1.99
62 545081826 Kit - Ignition Module This part replaces 530039234. Price: $32.99
63 530016357 Screw-Module Price: $1.99
