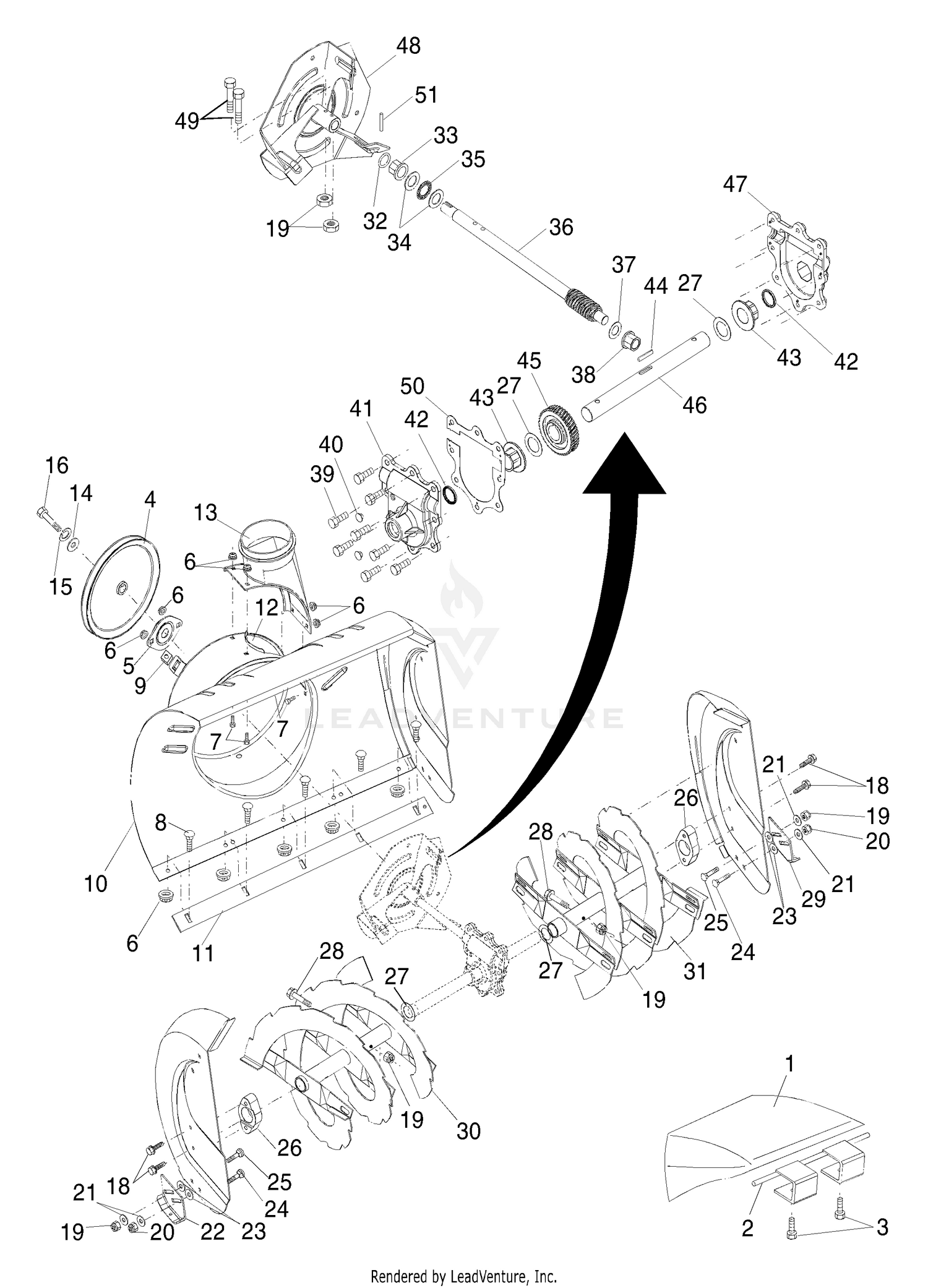

| Ref | Part Number | Description |
|---|
| 1 |
532183576 |
BRACKET.ASSEM.WEIGHT.SNOW This part replaces 532183578. Price: $24.99 |
| 2 |
532183576 |
BRACKET.ASSEM.WEIGHT.SNOW This part replaces 532183577. Price: $24.99 |
| 3 |
874520524 |
Screw, Hex Head 5/16-18 x 1-1/2 Price: $3.26 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532181083. Price: $27.99 |
| 5 |
532188909 |
BEARING FLANGE This part replaces 532175323. Price: $24.99 |
| 6 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 7 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 8 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 9 |
532178820 |
NUT, CAGE 3/8-16 Price: $5.99 |
| 10 |
581708378 |
KIT.AUGER.HOUSING.404929X668 This part replaces 532184091. Price: $229.99 |
| 11 |
532404932 |
BAR.SCRAPER.27.PNT.BLACK This part replaces 532184097. Price: $9.99 |
| 12 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 13 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 14 |
532059289 |
STEEL WASHER Price: $3.99 |
| 15 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 16 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 18 |
532179582 |
SCREW, HEX HD 5/16X1 Price: $3.99 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 20 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 21 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 22 |
532436125 |
PLATE.SKID.ADJ.RH.BLACK This part replaces 532184094. Price: $6.99 |
| 23 |
532179246 |
WASHER, NYLON FRICTION Price: $3.99 |
| 24 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 25 |
532179829 |
BOLT, SHOULDER Price: $4.99 |
| 26 |
532420478 |
BEARING.AUGER.SHAFT This part replaces 532174658. Price: $7.99 |
| 27 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 28 |
532179828 |
BOLT, SHOULDER 1/4-20 X 2 Price: $6.82 |
| 29 |
532174762 |
PLATE.SKID.ADJUSTABLE.LH.BLACK This part replaces 532184093. Price: $7.99 |
| 30 |
532435233 |
KIT.AUGER.27.RH This part replaces 532184103. Price: $299.99 |
| 31 |
532435232 |
KIT.AUGER.27.LH This part replaces 532184100. Price: $219.99 |
| 32 |
532174699 |
O-RING Price: $7.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 This part replaces 532174700. Price: $7.99 |
| 34 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 35 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 36 |
532407757 |
SHAFT, IMPELLER This part replaces 532174660. Price: $89.99 |
| 37 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 38 |
532174686 |
BUSHING.FLANGE.(.625X.75) Price: $22.99 |
| 39 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 40 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW Price: $3.99 |
| 41 |
532174688 |
HOUSING.GEARBOX.RH.SNOW Price: $22.99 |
| 42 |
532174698 |
SEAL, OIL Price: $4.99 |
| 43 |
532174701 |
BUSHING FLANGE 1" Price: $29.99 |
| 44 |
532189282 |
KEY, SQUARE 1/4 X .875 This part replaces 532178879. Price: $4.99 |
| 45 |
598831601 |
Service Kit This part replaces 532174659. Price: $199.99 |
| 46 |
532174657 |
SHAFT, AUGER Price: $59.99 |
| 47 |
532407765 |
HOUSING.GEARBOX.LH(SERVICE) This part replaces 532174687. Price: $22.99 |
| 48 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 49 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 50 |
532175311 |
GASKET.AUGER.GEARBOX Price: $7.99 |
