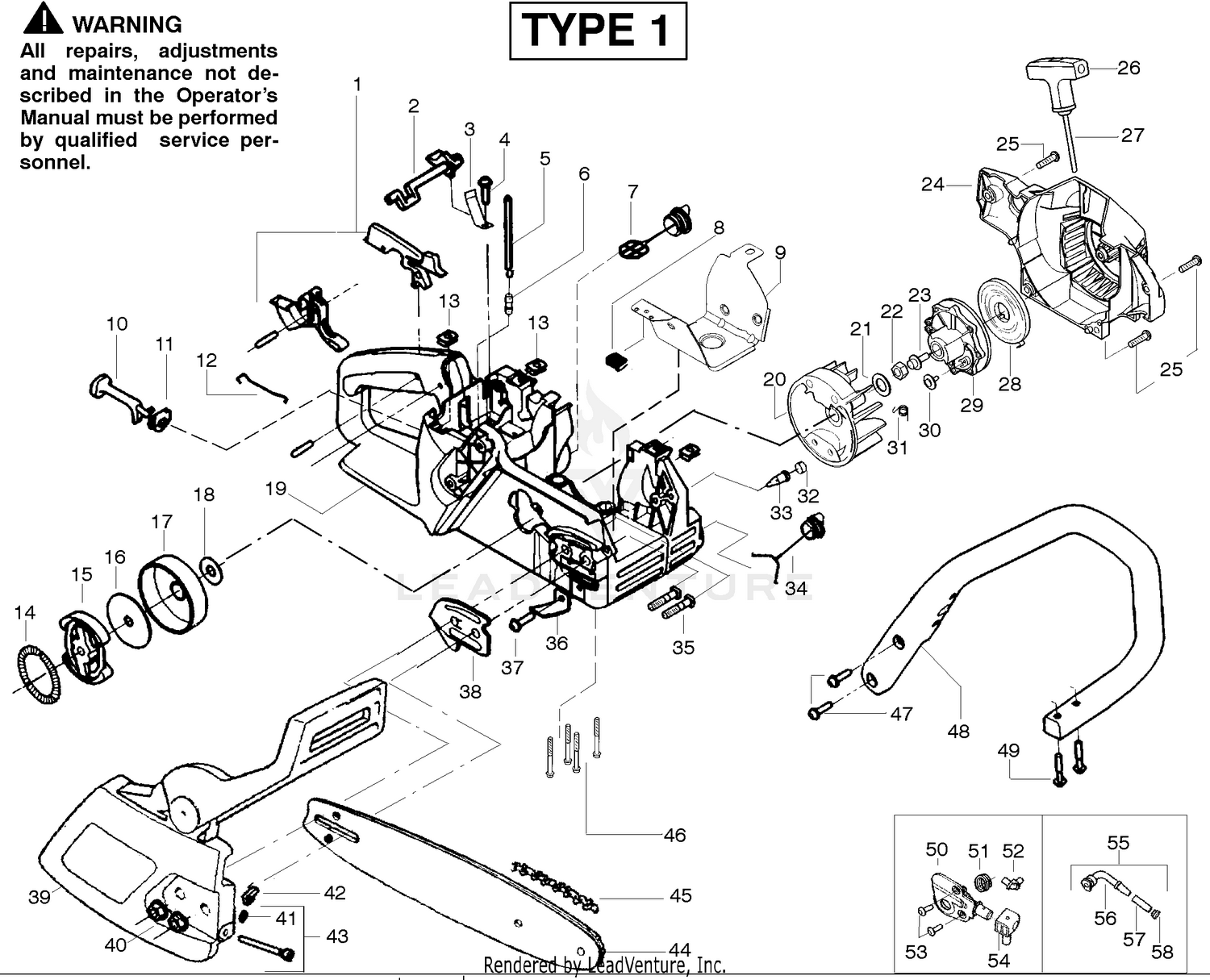

| Ref | Part Number | Description |
|---|
| 2 |
530038227 |
Lever-Switch Price: $1.99 |
| 3 |
530016149 |
Spring-Switch Price: $1.99 |
| 4 |
530015775 |
Screw Price: $1.99 |
| 5 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 6 |
530023877 |
Fitting-Fuel line Price: $1.99 |
| 7 |
577858501 |
FUEL CAP ASSY W/RET This part replaces 530047192. Price: $4.99 |
| 8 |
530055322 |
Clip-"U" Price: $1.99 |
| 9 |
530055183 |
Shield-Heat Price: $5.99 |
| 10 |
530047989 |
Lever-Choke Price: $1.99 |
| 11 |
530038406 |
Grommet-Choke lever Price: $1.99 |
| 12 |
530037809 |
Wire-Throttle Price: $1.99 |
| 13 |
530015922 |
Nut-Speed Price: $1.99 |
| 14 |
530014949 |
Assy. - Clutch This part replaces 530094188. Price: $7.99 |
| 16 |
530015611 |
Washer-Clutch Price: $1.99 |
| 17 |
530047061 |
Assy-Drum W/brg. Price: $11.99 |
| 18 |
530015907 |
Washer-Thrust Price: $1.99 |
| 19 |
530069822 |
Kit-Chassis Assy. Price: $48.41 |
| 20 |
530063575 |
FLYWHEEL This part replaces 530039209. Price: Call Us |
| 21 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 22 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 23 |
530015920 |
Screw Price: $1.99 |
| 24 |
530049337 |
Fan Housing Price: $10.99 |
| 25 |
530015892 |
Screw Price: $1.99 |
| 26 |
530056402 |
Handle-Starter This part replaces 530037485. Price: $2.99 |
| 27 |
530069232 |
Kit-Rope Price: $3.99 |
| 28 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 29 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 30 |
530016080 |
Screw Price: $1.99 |
| 31 |
530023817 |
Spring-Starter Dog Price: $1.99 |
| 32 |
530038264 |
Plug-Bronze Vent Price: $1.99 |
| 33 |
530026119 |
Check Valve Price: $1.99 |
| 34 |
530057236 |
Assy-Oil Cap This part replaces 530010846. Price: $5.99 |
| 35 |
530016133 |
Bolt-Bar Price: $1.99 |
| 36 |
530029850 |
Chain Catcher Price: $1.99 |
| 37 |
530015814 |
Screw Price: $1.49 |
| 38 |
530038238 |
Plate-Bar Mounting Price: $1.99 |
| 39 |
545139903 |
Assy.-Chain Brake This part replaces 530054740. Price: $23.99 |
| 40 |
530015917 |
Nut-Bar Mounting Price: $0.99 |
| 41 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 42 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 44 |
952044418 |
Bar-18" Price: Call Us |
| 45 |
952051338 |
Chain-18" Price: Call Us |
| 46 |
530016132 |
Screw Price: $1.99 |
| 47 |
530015814 |
Screw Price: $1.49 |
| 48 |
530059173 |
Handle-Front This part replaces 530056798. Price: $15.99 |
| 49 |
530015940 |
Screw Price: $1.99 |
| 51 |
530037820 |
Gear-Worm Spring Price: $1.99 |
| 52 |
530049477 |
Elbow-Oil Pickup Price: $1.99 |
| 53 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 54 |
530019206 |
Seal Block Price: $1.99 |
| 56 |
530038373 |
Oiler Pickup Price: $1.99 |
| 57 |
530056533 |
Filter-Oil This part replaces 530037821. Price: $2.99 |
