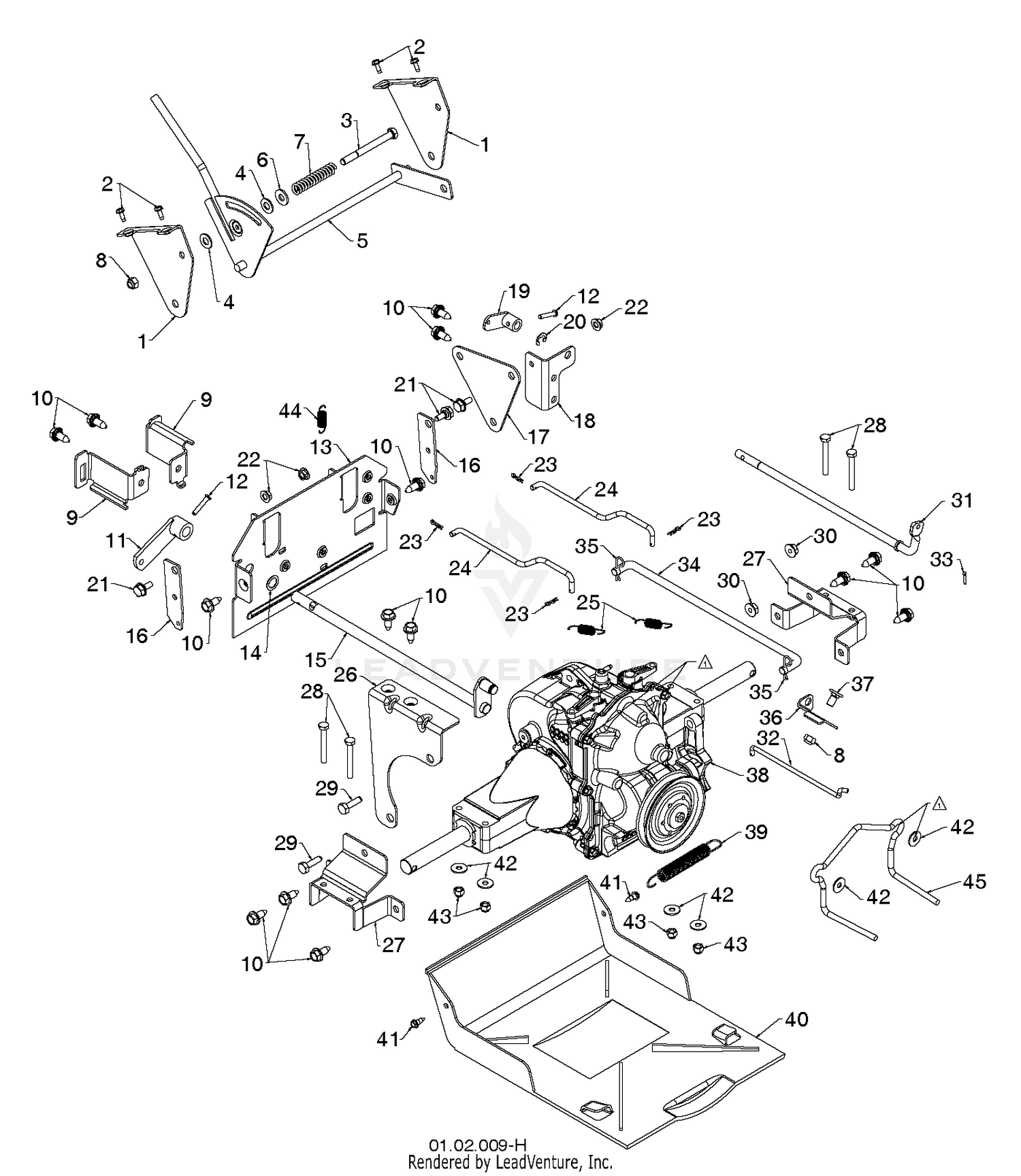

| Ref | Part Number | Description |
|---|
| 1 |
532443344 |
BRACKET.SHIFT.HYDRO Price: $3.99 |
| 2 |
817541008 |
SCREW Price: $3.99 |
| 3 |
874760552 |
SCREW 5/16-18 X 3.25 Price: $3.99 |
| 4 |
532179246 |
WASHER, NYLON FRICTION Price: $3.99 |
| 5 |
532425596 |
CONTROL.WLD.HYD.II Price: $49.99 |
| 6 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 8 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 9 |
532443347 |
BRACKET.CABLE.PNT.HYDRO Price: $3.99 |
| 10 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 11 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 12 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 13 |
532437151 |
PLATE.REAR.HYDRO.PNT.ORANGE Price: $7.99 |
| 14 |
532057079 |
THRUST WASHER Price: $1.99 |
| 15 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532427542. Price: $29.99 |
| 16 |
532443350 |
LEVER.STEER.CABLE.PNT.SNOW Price: $3.99 |
| 17 |
532443349 |
BRACKET.SPEED.PIVOT.YZP Price: $7.99 |
| 18 |
532443348 |
BRACKET.SPEED.PIVOT.YZP Price: $6.99 |
| 19 |
532198249 |
ARM.HYD.CLUTCH Price: $6.99 |
| 20 |
532428288 |
E-RING.RETAINER.REINFORCED.375 Price: $3.99 |
| 21 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $3.99 |
| 22 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 23 |
532065322 |
COTTER PIN (3 2)(2 2MC) Price: $3.99 |
| 24 |
532425496 |
ROD.STEER.HYD Price: $22.99 |
| 25 |
532194124 |
SPRING.RETURN Price: $4.99 |
| 26 |
532443346 |
BRACKET.HYDRO.STABILIZER Price: $6.99 |
| 27 |
532443345 |
BRACKET.TRANSMISSION.MOUNT Price: $7.99 |
| 28 |
874880432 |
BOLT.HEX.1/4-20X2.00.HEX.HD. Price: $3.99 |
| 29 |
596580801 |
Bolts This part replaces 874760516. Price: $2.99 |
| 30 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 31 |
532198251 |
SHAFT.HYD.CLUTCH Price: $17.99 |
| 32 |
532446293 |
ROD.HYDRO CLUTCH Price: $7.99 |
| 33 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 34 |
532425499 |
ROD.SPEED.CONT.HYD.SNOW Price: $8.99 |
| 35 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 36 |
532429803 |
BRACKET.HYD.CLUTCH. Price: $4.99 |
| 37 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 38 |
591388201 |
TRANSMISSION.HYDRO 2 This part replaces 501111301. Price: $1,199.99 |
| 39 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 40 |
532425498 |
PAN.BOTTOM.PLASTIC.SNOW Price: $27.99 |
| 41 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 42 |
819091214 |
WASHER This part replaces 532053847. Price: $8.99 |
| 43 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 44 |
532406558 |
SPRING Price: $6.99 |
| 45 |
584994501 |
GUIDE BELT.HYDRO 2 Price: $5.99 |
