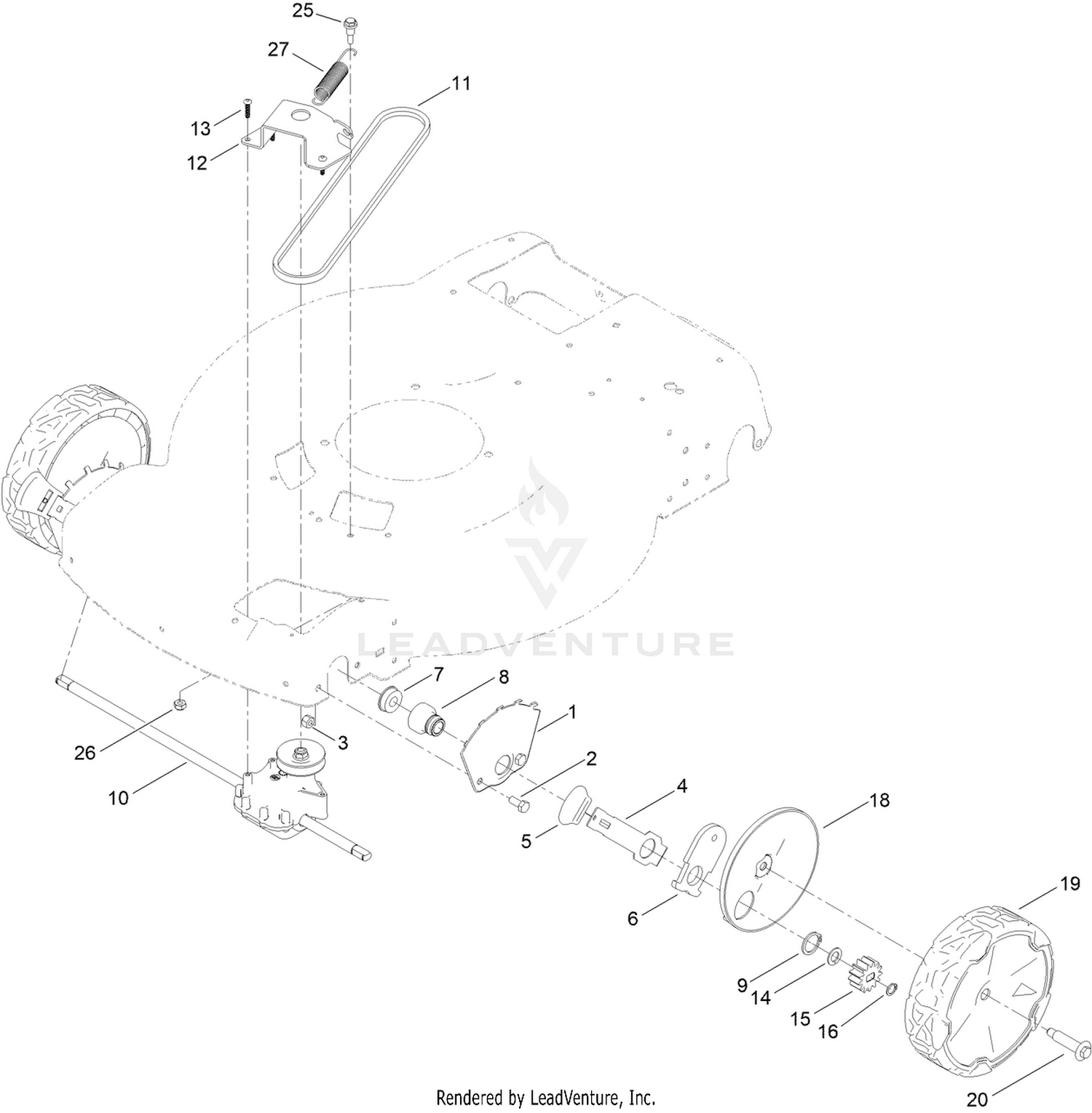

| Ref | Part Number | Description |
|---|
| 1 |
115-1956-05 |
PLATE-HOC,FRONT FSVQ WEDNESDAY Price: $9.99 |
| 2 |
322-3 |
SCREW-HH Price: $0.79 |
| 3 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 4 |
105-1809 |
ARM-SPRING Price: $10.99 |
| 5 |
110-0549 |
KNOB-HOC Price: $0.99 |
| 6 |
137-9128 |
ARM-PIVOT, FRONT Price: $6.79 |
| 7 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 8 |
131-0836 |
RETAINER-BEARING, HOC Price: $13.99 |
| 9 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 10 |
137-4823 |
TRANSMISSION Price: $105.99 |
| 11 |
71-9450 |
V-BELT Price: $21.99 |
| 12 |
114-7978-03 |
BRACKET-TRANSMISSION Price: $10.99 |
| 13 |
108-7476 |
SCREW-PLASTITE Price: $0.79 |
| 14 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 15 |
131-0896 |
GEAR-PINION, 13T Price: $6.49 |
| 16 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 18 |
140-2364 |
ASM-COVER, WHEEL (DK GRAY) Price: $6.49 |
| 19 |
140-2358 |
ASM-8" WHEEL, FWD (BUSHINGS) Price: $21.99 |
| 20 |
145-3899 |
WHEEL BOLT This part replaces 139-1789. Price: $1.59 |
| 25 |
104-0858 |
BOLT-SHOULDER Price: $4.69 |
| 26 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
