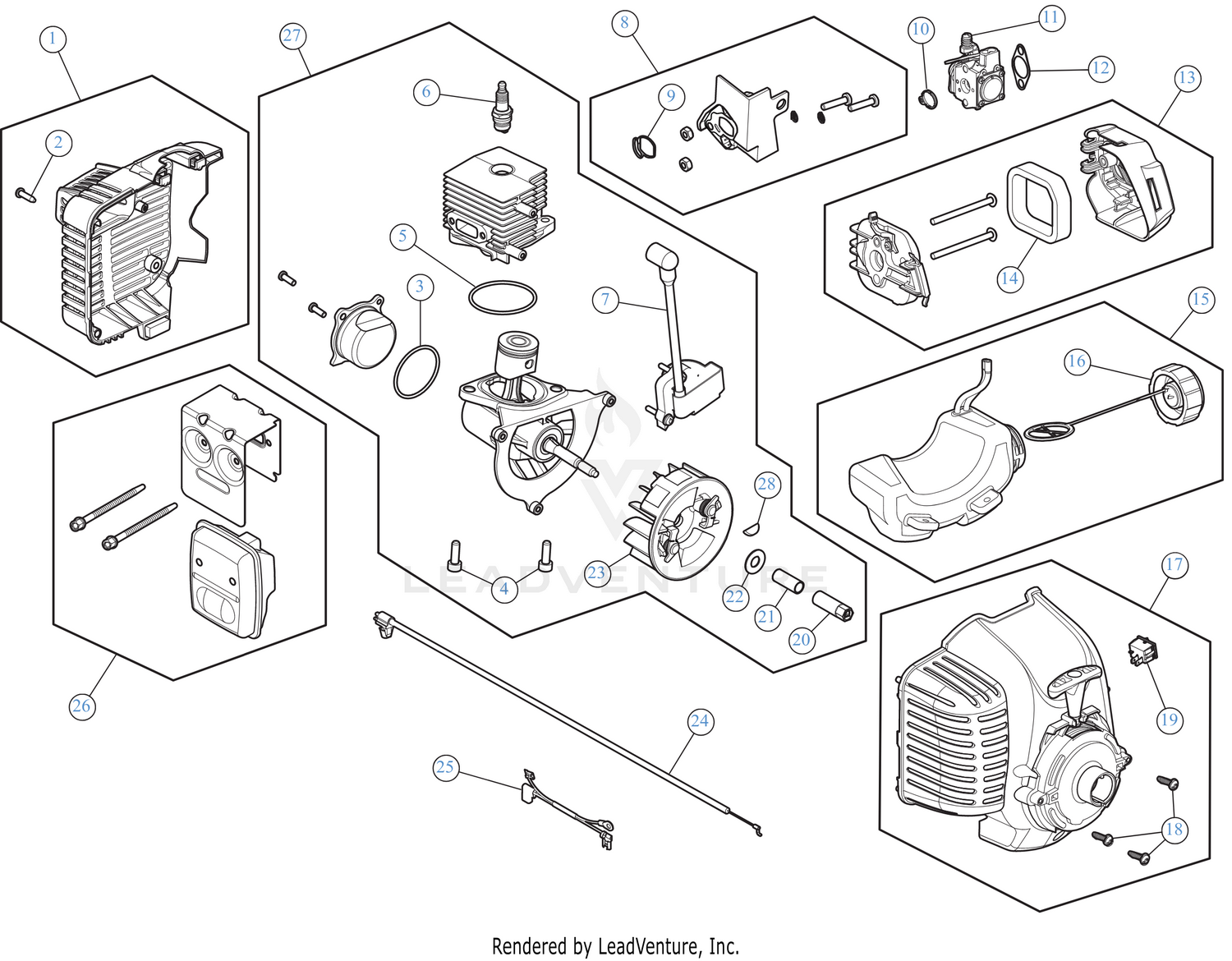

Engine Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 710-04194 | SCREW 8-16 x 3/4 Price: $3.66 |
| 3 | 753-09086 | O-RING SEAL CRANKCASE Price: $2.44 |
| 4 | 710-06241 | SCREW 5/16-18x3/4 T40 Price: $2.48 |
| 5 | 753-09085 | O-RING SEAL CYLINDER Price: $2.44 |
| 6 | 753-06847 | SPARK PLUG Price: $6.35 |
| 7 | 753-09104 | MODULE ASSEMBLY Price: $13.74 |
| 9 | 721-04973 | INSL/CYL SEAL Price: $2.48 |
| 10 | 721-04972 | CARBURETOR SEAL Price: $0.92 |
| 11 | 753-06190 | CARBURETOR Price: $31.13 |
| 12 | 753-06253 | GASKET CARB Price: $2.98 |
| 14 | 753-06417 | AIR FLITER Price: $2.30 |
| 16 | 791-182612 | FUEL CAP ASSEMBLY Price: $17.64 |
| 18 | 791-182195 | SCREW #10-24X11/16 T-25 Price: $6.20 |
| 19 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 20 | 711-07481-1 | POWER SHAFT ADAPTER Price: $2.44 |
| 21 | 753-09087 | SPACER CRANKSHAFT Price: $2.48 |
| 22 | 753-06247 | BELL WASHER Price: $3.05 |
| 23 | 753-09125 | FLYWHEEL ASSEMBLY Price: $13.74 |
| 24 | 746-05451 | THROTTLE CABLE Price: $3.21 |
| 25 | 794-00184 | SHORT WIRE LEAD Price: $2.15 |
| 26 | 753-09144 | MUFFLER ASSEMBLY Not Available Price: |
