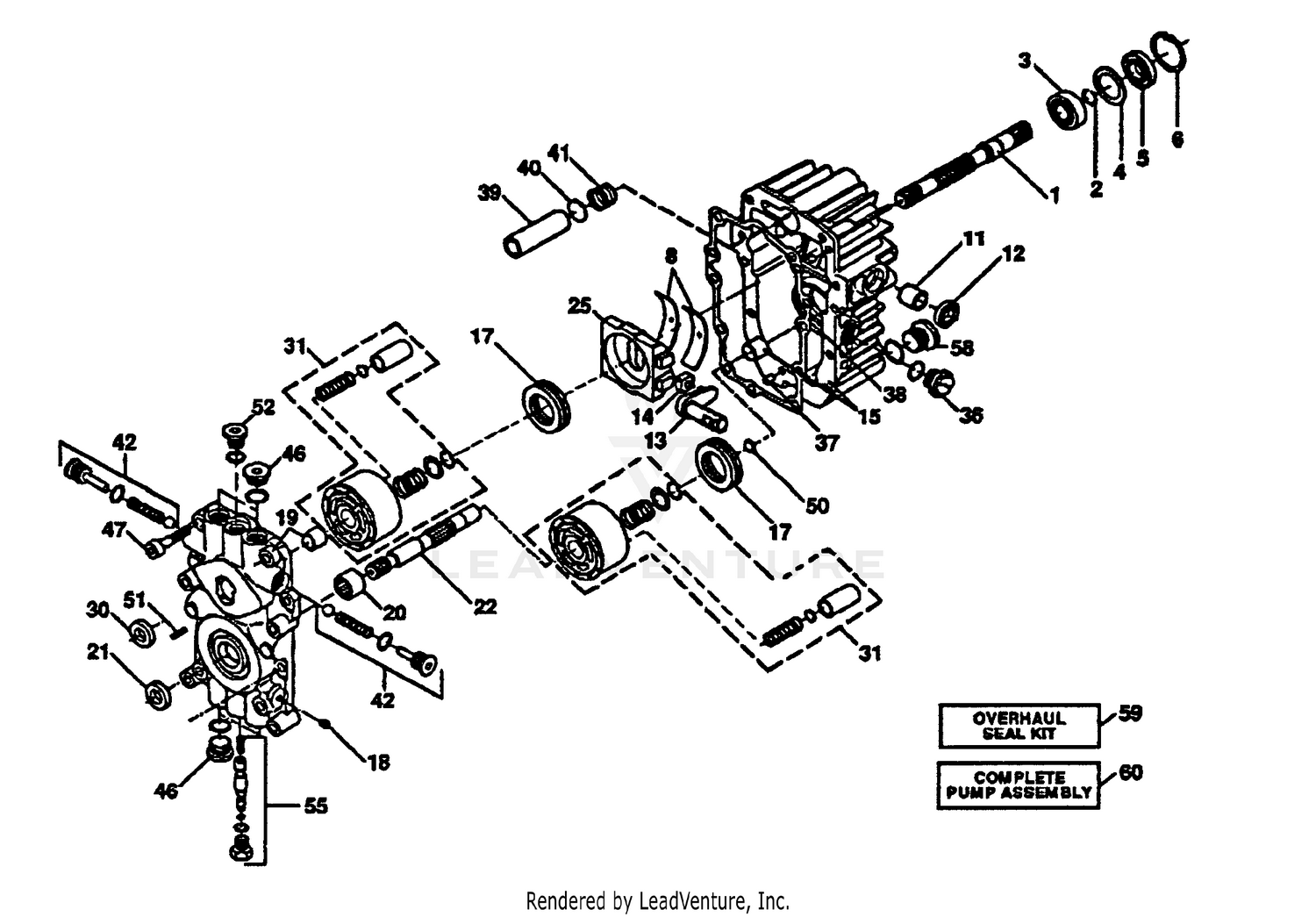

Pump Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 532122756 | SHAFT 2003022 Price: $139.99 |
| 3 | 532122745 | BALL BEARING 2003043 Price: $84.99 |
| 8 | 532122767 | CRADLE BEARING Price: $12.44 |
| 11 | 532122747 | BEARING Price: $21.03 |
| 13 | 532122748 | TRUNION ARM Price: $146.13 |
| 14 | 532122749 | GUIDE 2000015 HYD Price: $5.99 |
| 15 | 532121430 | PUMP ASM COMP This part replaces 532127146. Price: $809.77 |
| 17 | 532150771 | BEARING, THRUST 50551 This part replaces 532122770. Price: $29.99 |
| 18 | 532122771 | PLUG PIPE Price: $2.38 |
| 19 | 532127147 | KIT,CTR SECTION Price: $784.09 |
| 20 | 532122773 | NEEDLE BEARING Price: $64.99 |
| 22 | 532122750 | SHAFT Price: $208.78 |
| 25 | 532127148 | SWASHPLATE,VARIAB Price: $163.93 |
| 31 | 532127149 | KIT,BLOCK CYLINDE Price: $122.25 |
| 36 | 532127151 | PLUG,PLASTIC Price: $2.38 |
| 37 | 532122786 | PIN Price: $2.38 |
| 39 | 532122731 | FILTER 2003003 Price: $49.99 |
| 40 | 532122730 | WASHER Price: $5.99 |
| 41 | 532122728 | SPRING Price: $11.99 |
| 42 | 532127152 | KIT,CHECK VALVE 2513014 Price: $26.99 |
| 46 | 532122787 | PLUG Price: $4.40 |
| 47 | 532122752 | SCREW Price: $2.99 |
| 50 | 532122788 | WASHER Price: $5.61 |
| 51 | 532122789 | PIN Price: $2.99 |
| 52 | 532122754 | PLUG Price: $4.40 |
| 55 | 532127153 | KIT,BYPASS VALVE(2513011) Price: $96.99 |
| 58 | 532122790 | PLUG Price: $2.38 |
