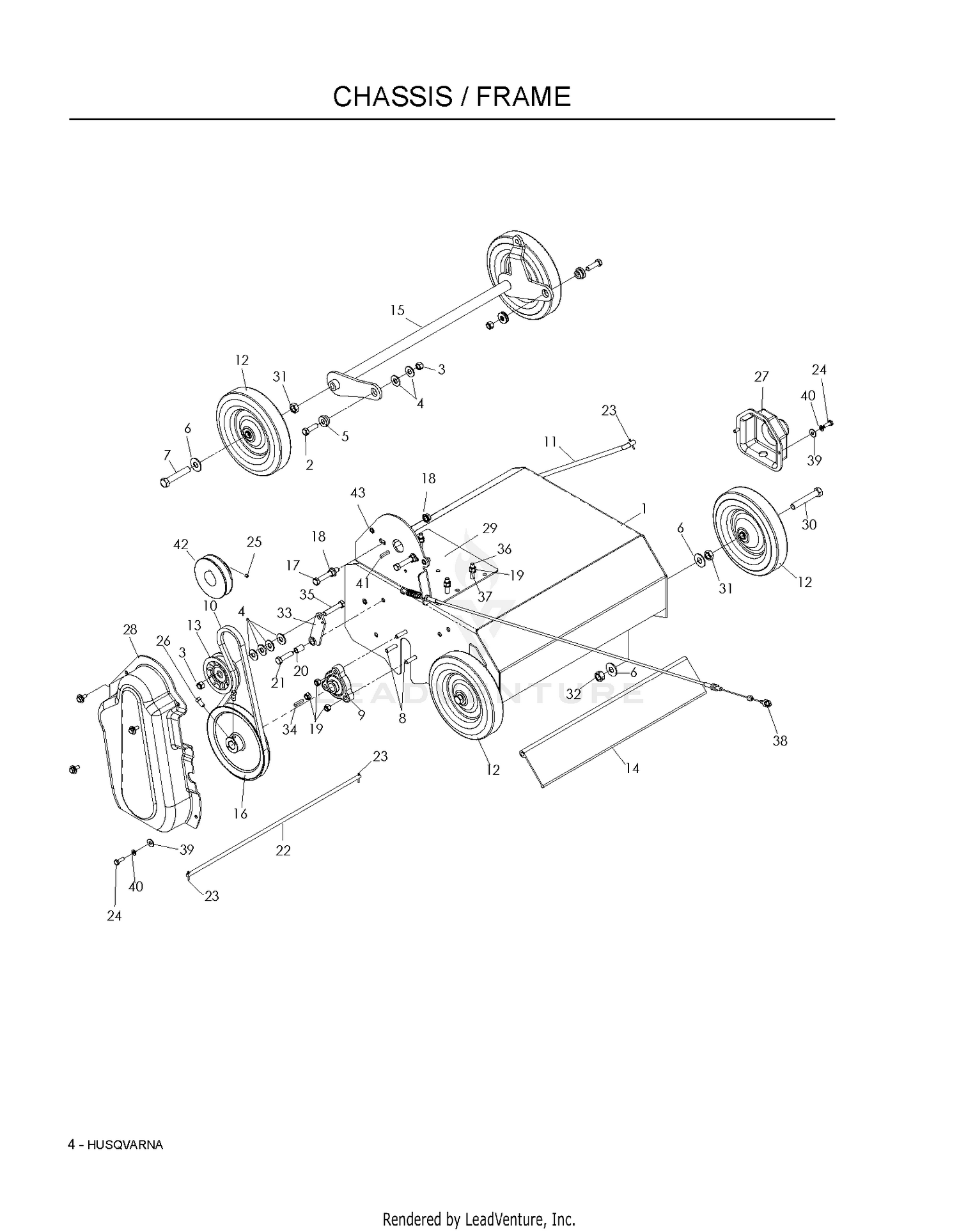

| Ref | Part Number | Description |
|---|
| 1 |
525398701 |
KIT, BODY W/DECALS Price: $449.99 |
| 2 |
539976941 |
HCS 3/8C X 1 1/4 GR5 Price: $3.99 |
| 3 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 4 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 5 |
539106847 |
BUSHING RAKE Price: $6.99 |
| 6 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 7 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 8 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 9 |
539100488 |
BEARING, FLANGED Price: $39.99 |
| 10 |
539100439 |
BELT, DRIVE RAKE/SLICER DFS Price: $29.99 |
| 11 |
539106805 |
LINKAGE Price: $5.99 |
| 12 |
540075051 |
WHEEL 8 X 1 3/4 RAKE Price: $27.99 |
| 13 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 14 |
539100508 |
DEFLECTOR SHIELD Price: $49.99 |
| 15 |
525245201 |
FRONT AXLE ORANGE Price: $139.99 |
| 16 |
539100511 |
PULLEY, MAIN SHAFT Price: $76.99 |
| 17 |
596434201 |
Bolts This part replaces 539990637. Price: $3.99 |
| 18 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 19 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 20 |
539100482 |
BEARING, ONLITE RAKE/DT Price: $8.99 |
| 22 |
539100512 |
DEFLECTOR ROD Price: $39.99 |
| 23 |
539990037 |
COTTER PIN 3/32 X 3/4 Price: $2.99 |
| 24 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 26 |
539102717 |
SCREW 5/16C X 5/8 SQ HEAD Price: $2.99 |
| 27 |
539106754 |
SHAFT GUARD Price: $19.99 |
| 28 |
539108070 |
BELT SHIELD POWER RAKE This part replaces 539108069. Price: $119.99 |
| 29 |
576225201 |
BACKING PLATE, DK BLUE This part replaces 539106771. Price: $54.99 |
| 30 |
539101572 |
SCREW, 1/2C X 3 HEX CAP Price: $4.99 |
| 31 |
596433401 |
Nuts This part replaces 539990625. Price: $2.99 |
| 32 |
539200100 |
NUT 1/2-13 HEX CNTRLK GR 5 ZD Price: $3.99 |
| 33 |
522795001 |
IDLER, ARM, BLACK Price: $60.99 |
| 34 |
539910061 |
KEY, 3/16 SQUARE Price: $3.99 |
| 35 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 36 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 37 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 38 |
539106849 |
CABLE POWER RAKE Price: $27.99 |
| 39 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 40 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 41 |
539910061 |
KEY, 3/16 SQUARE Price: $3.99 |
| 42 |
539108543 |
ENGINE PULLEY W/SET SCW This part replaces 539108059. Price: $32.99 |
| 43 |
539108147 |
KNURLED INSERT Price: $2.99 |
