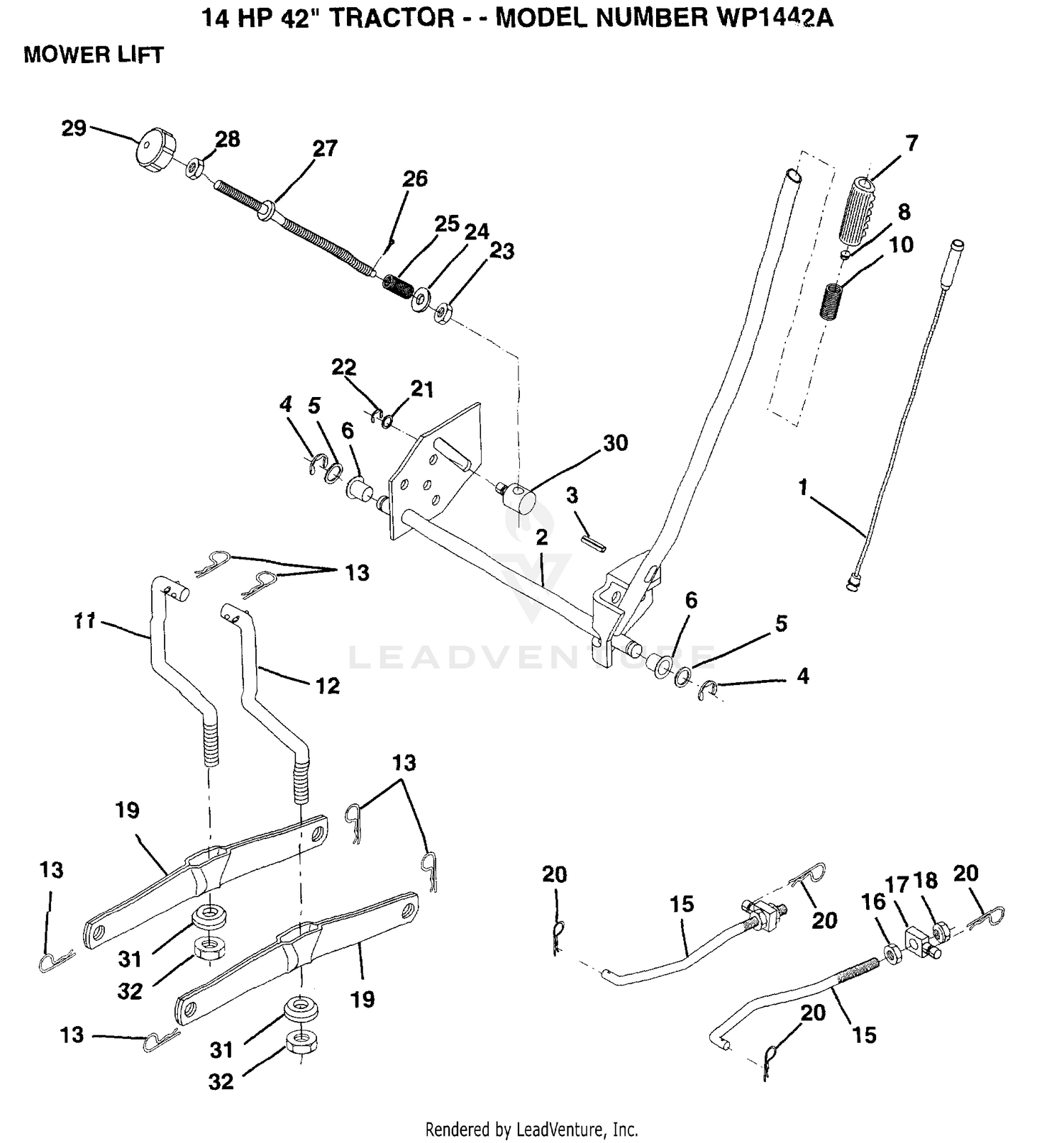

| Ref | Part Number | Description |
|---|
| 1 |
136971 |
WIRE.ASM.INNER Price: Call Us |
| 1 |
32128-19 |
NUT-HF Price: $0.99 |
| 2 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 2 |
136968 |
SHAFT.ASM.LIFT.RH Price: Call Us |
| 3 |
138284 |
PIN GROOVE Price: Call Us |
| 3 |
86-1820-01 |
BRACKET-PULLEY Price: $18.96 |
| 4 |
12000002 |
SUB= 2225J Price: Call Us |
| 4 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 5 |
19211621 |
WASHER Price: Call Us |
| 5 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 6 |
120183X |
NYLON BEARING Price: Call Us |
| 6 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 7 |
109413X |
GRIP Price: Call Us |
| 7 |
86-2400-01 |
LATCH-ARM Price: $109.47 |
| 8 |
124526X |
SUB= 125925X Price: Call Us |
| 8 |
325-5 |
SCREW-HH Price: $1.20 |
| 9 |
86-1560 |
SPACER-CYLINDER, LIFT Price: $23.34 |
| 10 |
122512X |
SUB= 532122512 Price: Call Us |
| 10 |
86-1490 |
END-ROD, LH THREAD Price: $84.31 |
| 11 |
139865 |
SUB= 918139865 Price: Call Us |
| 11 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 12 |
139866 |
SUB= 151140 Price: Call Us |
| 12 |
86-1570 |
ROD-THREADED Price: $55.04 |
| 13 |
3220-5 |
NUT-JAM This part replaces 3220-5-01. Price: $0.65 |
| 13 |
4939M |
SUB= 85902 Price: Call Us |
| 14 |
86-1550 |
END-ROD, RH THREAD Price: $79.70 |
| 15 |
127218 |
LINK.FRONT Price: Call Us |
| 15 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 16 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 16 |
73350800 |
NUT Price: Call Us |
| 17 |
130171 |
TRUNION Price: Call Us |
| 17 |
92-7766-01 |
BRACKET-PULLEY Price: $9.40 |
| 18 |
73800800 |
NUT.LK.W/WSH.1/2. Price: Call Us |
| 18 |
92-4033-01 |
TRAP-DOOR Price: $141.84 |
| 19 |
139868 |
ARM SUSP REAR Price: Call Us |
| 19 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 20 |
3146R |
RETAINER.SPRING Price: Call Us |
| 20 |
325-7 |
SCREW-HH Price: $1.53 |
| 21 |
19151216 |
WASHER Price: Call Us |
| 22 |
12000037 |
KLIP RING Price: Call Us |
| 23 |
110807X |
NUT T Price: Call Us |
| 23 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 24 |
106-1057 |
KIT-CLUTCH BRACKETS This part replaces 86-2590. Price: $221.30 |
| 24 |
19131016 |
WASHER Price: Call Us |
| 25 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 25 |
2876H |
SPRING T Price: Call Us |
| 26 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 26 |
76020308 |
SUB= 3145 Price: Call Us |
| 27 |
110729X |
ROD LIFT LT Price: Call Us |
| 27 |
86-2600-01 |
WASHER-GUIDE, BELT Price: $5.77 |
| 28 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 28 |
73350600 |
NUT Price: Call Us |
| 29 |
138057 |
KNOB INF 3/8-16 Price: Call Us |
| 30 |
110810X |
TRUNION LT Price: Call Us |
| 31 |
140302 |
BEARING PVT LH Price: Call Us |
