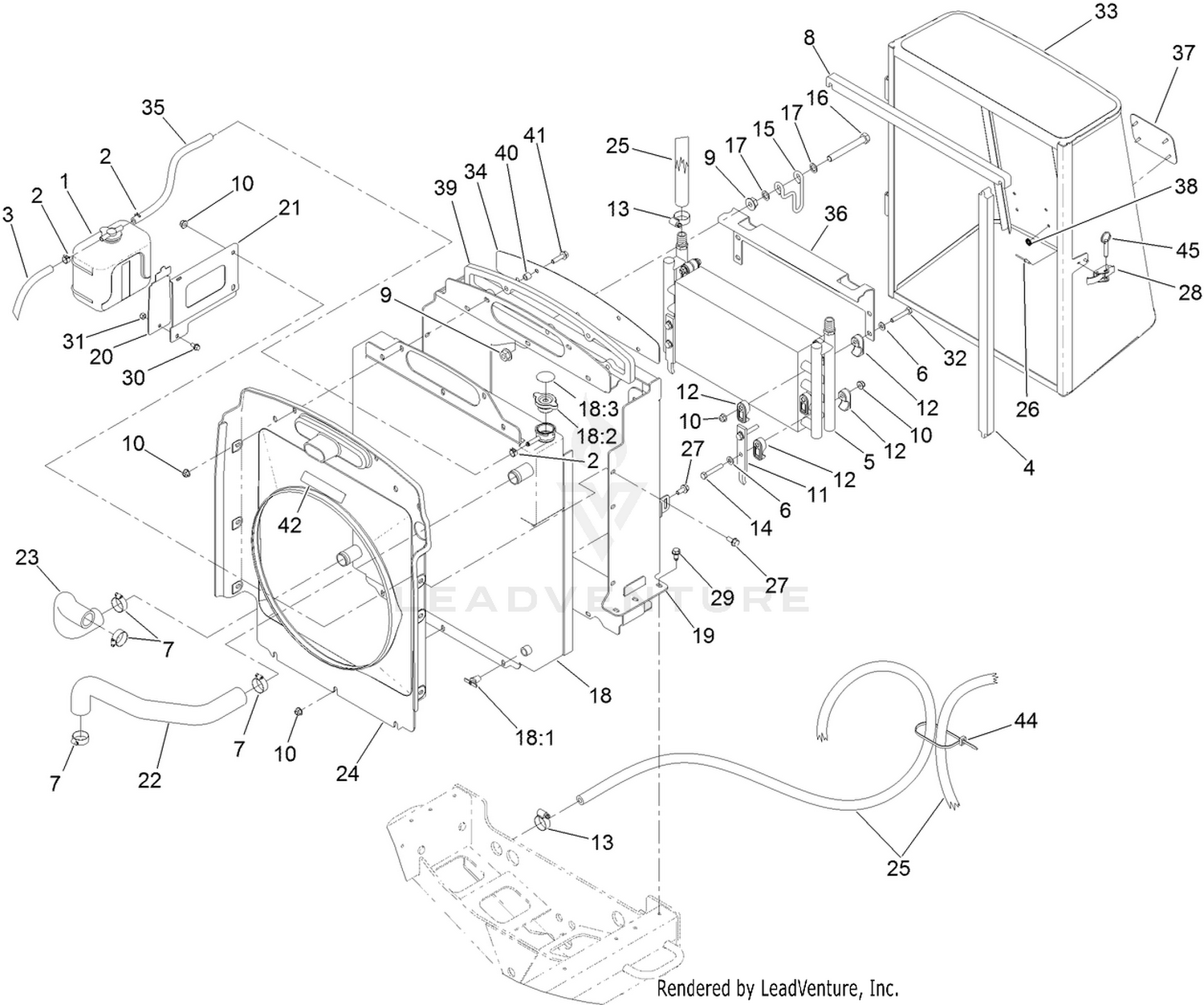

Cooling System Assembly — Parts Catalog

Parts (43)

Ref	Part Number	Description
1	108-0638	BOTTLE-OVERFLOW Price: $33.20
2	92-2379	CLAMP-HOSE Price: $0.34
3	110-3257	HOSE-FUEL Price: $17.26
4	110-0967	SEAL-FOAM Price: $14.99
5	100-4869	COOLER-OIL Price: $791.17
6	3256-23	WASHER-PLAIN Price: $0.28
7	2412-34	CLAMP-HOSE Price: $2.14
8	110-0968	SEAL-FOAM Price: $12.29
9	32128-49	NUT-HHF Price: $1.04
10	104-8300	NUT-HF, NI Price: $0.39
11	104-5460-03	PLATE-MOUNT, OIL COOLER Price: $19.12
12	105-3943	CLAMP-COOLER, OIL Price: $8.70
13	2412-129	CLAMP-HOSE Price: $2.10
14	322-10	SCREW-HH Price: $0.70
15	104-5429	CLAMP-FORM, WIRE Price: $11.80
16	325-17	SCREW-HH Price: $2.90
17	41-8440	WASHER Price: $1.49
18	119-6956	RADIATOR ASM Price: $1,856.53
19	127-2665-03	FRAME-SUPPORT, RADIATOR Price: $573.73
20	108-1665-0P	BRACKET - RESERVIOR Price: $13.72
21	108-1666-0P	BRACKET - RESERVOIR Price: $20.32
22	108-1696	HOSE-FORMED Price: $35.18
23	108-1697	HOSE-FORMED Price: $38.62
24	108-1791	SHROUD-FAN Price: $328.36
25	108-1693	HOSE Price: $60.11
26	3269-15	RIVET-POP Price: $0.54
27	3234-5	SCREW-HHF Price: $0.42
28	115-1554	LATCH-DRAW Price: $38.46
29	32104-32	SCREW-HWH Price: $1.99
30	3234-13	SCREW-HHF Price: $0.77
31	3296-42	NUT-LOCK, NI Price: $0.28
32	322-21	SCREW-HH Price: $4.29
33	110-0952-03	SCREEN ASM Price: $1,010.39
34	108-1843-0P	SCREEN - AIR INTAKE Price: $35.29
35	110-4104	HOSE-FUEL Price: $8.95
36	107-2043-03	BRACKET-OIL COOLER, TOP Price: $51.21
37	93-6028	PLATE-LOGO Price: $13.70
38	138-6996	NUT-PUSH Price: $0.34
39	110-5324	SEAL-FOAM Price: $16.15
40	1-603903	SPACER Price: $4.99
41	3234-36	SCREW-HHF Price: $0.75
42	93-7272	DECAL-WARNING Price: $6.37
44	3290-378	TIE-CABLE Price: $0.79
