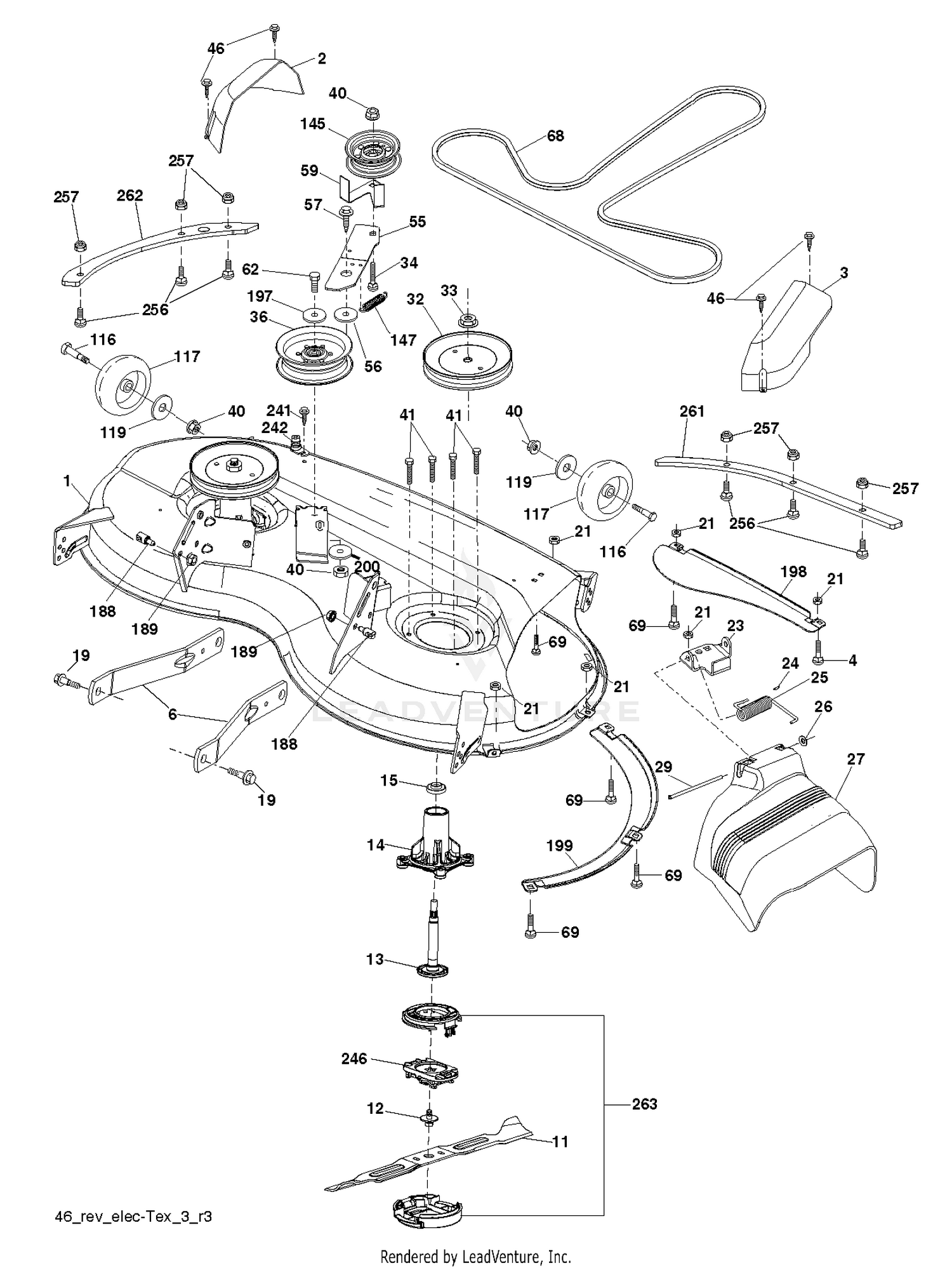

| Ref | Part Number | Description |
|---|
| 1 |
547746001 |
KIT.SVC.DECK.WELD.46.TEX_668 This part replaces 583900903. Price: $449.99 |
| 1 |
67-3770 |
DISCONTINUED Price: Call Us |
| 2 |
532405507 |
COVER.MANDREL.LH.46" Price: $19.99 |
| 2 |
67-3760 |
LOCK PLATE Price: $21.29 |
| 3 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 3 |
67-3740 |
NIPPLE Price: $62.56 |
| 4 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 4 |
67-3480 |
O-RING Price: $2.47 |
| 5 |
67-3490 |
SPRING Price: $5.86 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
93-3465 |
GASKET-DELIVERY V. This part replaces 42-8240. Price: $8.09 |
| 7 |
67-3500 |
SUB-ASSEMBLY VALVE Price: $99.95 |
| 8 |
75-4970 |
ELEMENT - SUB-ASSY Price: $224.06 |
| 9 |
67-3460 |
SUB-ASM PUMP HOUSING Price: $618.09 |
| 10 |
67-3520 |
SUB-ASSEMBLY SLEEVE Price: $47.39 |
| 11 |
581043901 |
BLADE.REVOLTION.46"BAGER.PT43 Price: $24.99 |
| 11 |
67-3530 |
SEAT Price: $4.36 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 12 |
67-3540 |
SPRING Price: $12.47 |
| 13 |
587820201 |
KIT,MANDREL,NONGREASE,REVOL This part replaces 580854701. Price: $32.99 |
| 13 |
67-3550 |
DISCONTINUED Price: Call Us |
| 14 |
587820201 |
KIT,MANDREL,NONGREASE,REVOL This part replaces 580796101. Price: $32.99 |
| 14 |
67-3650 |
DISCONTINUED Price: Call Us |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
67-3700 |
DISCONTINUED Price: Call Us |
| 16 |
67-3810 |
PIN Price: $4.69 |
| 17 |
67-3790 |
DISCONTINUED Price: Call Us |
| 18 |
67-3800 |
BRACKET Price: $27.34 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
67-3780 |
RACK ASSEMBLY Price: $154.27 |
| 20 |
70-3910 |
WASHER This part replaces 67-3750. Price: $3.15 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 21 |
67-3740 |
NIPPLE Price: $62.56 |
| 22 |
67-3730 |
DISCONTINUED Price: Call Us |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 23 |
67-3720 |
DISCONTINUED Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
67-3710 |
AIR BLEED SCREW Price: $6.38 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
67-3970 |
NUT Price: $28.82 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
67-3980 |
GASKET Price: $3.19 |
| 27 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 27 |
67-3960 |
NOZZLE ASSEMBLY Price: $167.76 |
| 28 |
67-3950 |
PIECE Price: $19.92 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
93-3502 |
PIN-PRESSURE This part replaces 67-3940. Price: $3.22 |
| 30 |
67-3930 |
SPRING Price: $12.66 |
| 31 |
67-3840 |
WASHER 1.30 Price: $4.16 |
| 31 |
67-3910 |
WASHER 1.65 Price: $2.91 |
| 31 |
93-3491 |
WASHER-T=1.25 This part replaces 67-3830. Price: $8.80 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 32 |
75-5000 |
BODY SUB-ASSY Price: $147.67 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 62 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $49.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 197 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 198 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 199 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 200 |
596135501 |
Washers This part replaces 532413524. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 246 |
580954003 |
HOLDER.BLADE.REVOLUTION Price: $179.99 |
| 256 |
578296405 |
Screws This part replaces 578296404. Price: $2.99 |
| 257 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 262 |
585317805 |
PLATE.REINFOR.46.SIDEBOLT.X431 Price: $22.99 |
| 263 |
586638501 |
CAP.REVOLUTION ASM Price: $29.99 |
| 532416405 |
COUPLING.QUICK |
CONNECT Price: $8.99 532416405 |
| 547746001 |
KIT.SVC.DECK.WELD.46.TEX_668 |
This part replaces 581745401. Price: $449.99 547746001 |
