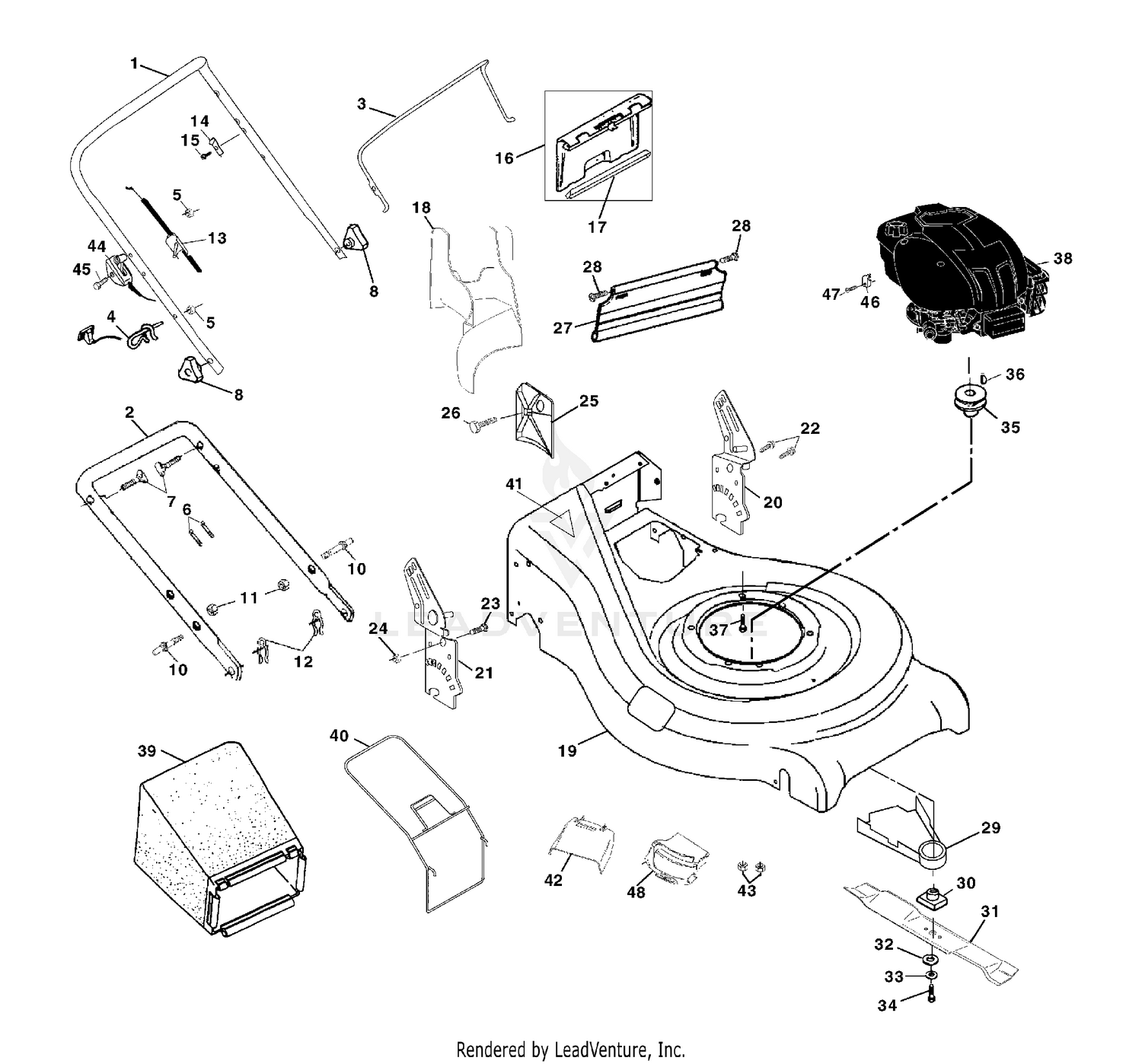

| Ref | Part Number | Description |
|---|
| 1 |
532169369 |
HANDLE.UP.DLX.COMF.W/GRIP.GREY This part replaces 532165543. Price: $44.99 |
| 1 |
74-9080 |
DISCONTINUED Price: Call Us |
| 2 |
532197202 |
HANDLE.LOWER.21.GREY This part replaces 532164556. Price: $19.99 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
532851659 |
BAIL.CONT.COMF.PUSH.BLK This part replaces 532131036. Price: $12.99 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 5 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 6 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 8 |
323-5 |
SCREW-HH This part replaces 323-33. Price: $0.41 |
| 8 |
532087692 |
KNOB Price: $8.99 |
| 9 |
130-2486 |
MOUNT This part replaces 53-9681. Price: $36.47 |
| 10 |
532188821 |
BOLT This part replaces 532161551. Price: $4.99 |
| 10 |
74-5470-03 |
MOUNT-ENGINE, LH This part replaces 74-5470. Price: $44.48 |
| 11 |
33115-100 |
SCREW-HH This part replaces 48-7840. Price: $1.57 |
| 11 |
596040501 |
Hardware This part replaces 873990500. Price: $2.99 |
| 12 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 12 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 13 |
32128-37 |
NUT-HF Price: $3.63 |
| 13 |
532133107 |
ENGINE ZONE CONTROL Price: $17.99 |
| 14 |
53-9480 |
WASHER-SNUBBER Price: $3.87 |
| 14 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 15 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 15 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 16 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 16 |
532162085 |
KIT.DOOR.REAR.21.WRAPPED.BLACK Price: $40.99 |
| 17 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 17 |
532189059 |
SEAL.DOOR.21" (2 2MC) This part replaces 532161548. Price: $4.99 |
| 18 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 18 |
532198170 |
PLUG.MULCHER.RGD.21. This part replaces 532165261. Price: $32.99 |
| 19 |
33114-030 |
SCREW-HH This part replaces 48-7730. Price: $0.50 |
| 19 |
532169189 |
KIT-HOUSING Price: $114.68 |
| 20 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 20 |
532161568 |
HANDLE, BRACKET ASM. LEFT This part replaces 532164548. Price: $9.88 |
| 21 |
532181020 |
BRACKET.ASM.HNDL.21.RWGD.EZ.RT This part replaces 532169306. Price: $12.99 |
| 21 |
76-4120-03 |
MOUNT-ENGINE, RH This part replaces 76-4120. Price: $79.57 |
| 22 |
48-7810 |
SCREW Price: $7.98 |
| 22 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 23 |
48-7570 |
SCREW-HH Price: $8.48 |
| 23 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 24 |
596040501 |
Hardware This part replaces 532063124. Price: $2.99 |
| 24 |
84-0760-03 |
ADAPTER-PUMP This part replaces 84-0760. Price: $876.02 |
| 25 |
532161333 |
CLIPPING DEFLECTOR Price: $9.99 |
| 25 |
86-2990 |
MOUNT-CABLE, THROTTLE Price: $22.81 |
| 26 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
322-3 |
SCREW-HH Price: $0.79 |
| 27 |
532408442 |
SKIRT.REAR.21.RWGD.BLACK(2 2M) This part replaces 532161550. Price: $8.99 |
| 28 |
532088652 |
HINGE SCREW Price: $3.99 |
| 28 |
74-3650 |
FAN Price: $269.64 |
| 29 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 29 |
532048283 |
KIT.SHIELD.DEBRIS.21.RWGD.EZ This part replaces 532134612. Price: $12.99 |
| 30 |
532851514 |
BLADE ADAPTOR Price: $7.99 |
| 30 |
76-4220-03 |
MOUNT-ENGINE, LH This part replaces 76-4220. Price: $127.64 |
| 31 |
53-9682 |
MOUNT-ENGINE Price: $108.69 |
| 32 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 32 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 33 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 33 |
84-1440 |
DISCONTINUED Price: Call Us |
| 34 |
33113-012 |
SCREW-HH This part replaces 48-7610. Price: $0.71 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 35 |
532084596 |
ENGINE.PULLEY.FWG This part replaces 532165604. Price: $27.99 |
| 35 |
77-3600 |
SHIELD-ADAPTER Price: $24.35 |
| 36 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 36 |
532087677 |
HI PRO KEY PM WSL Price: $3.99 |
| 37 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 37 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 38 |
76-4310-03 |
SUPPORT-BASE, BATTERY This part replaces 76-4310. Price: $22.33 |
| 39 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 39 |
532410686 |
GBAG.29510010.BLK.GEN.250C2 This part replaces 532169111. Price: $64.99 |
| 40 |
14-0949 |
BATTERY BASE WA *B This part replaces 76-6500. Price: $97.58 |
| 40 |
532161358 |
FRAME.GRASS.CATCHER.WALK.21" Price: $54.99 |
| 41 |
323-34 |
SCREW-HH Price: $0.54 |
| 41 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 42 |
532169699 |
DEFLECTOR.21.MCUT.RWGD.GRAY This part replaces 532166028. Price: $8.99 |
| 43 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 44 |
532168246 |
THROTTLE CONTROL Price: $12.99 |
| 45 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 46 |
532111190 |
CABLE CLAMP(ENGINE) Price: $4.99 |
| 47 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 48 |
532183058 |
DOOR.ASM.MULCH.21.RWD This part replaces 532166885. Price: $99.99 |
